300mm width Roll to Roll Pressure Adjust Rolling Press Machine for Battery Electrodes
SPECIFICATIONS

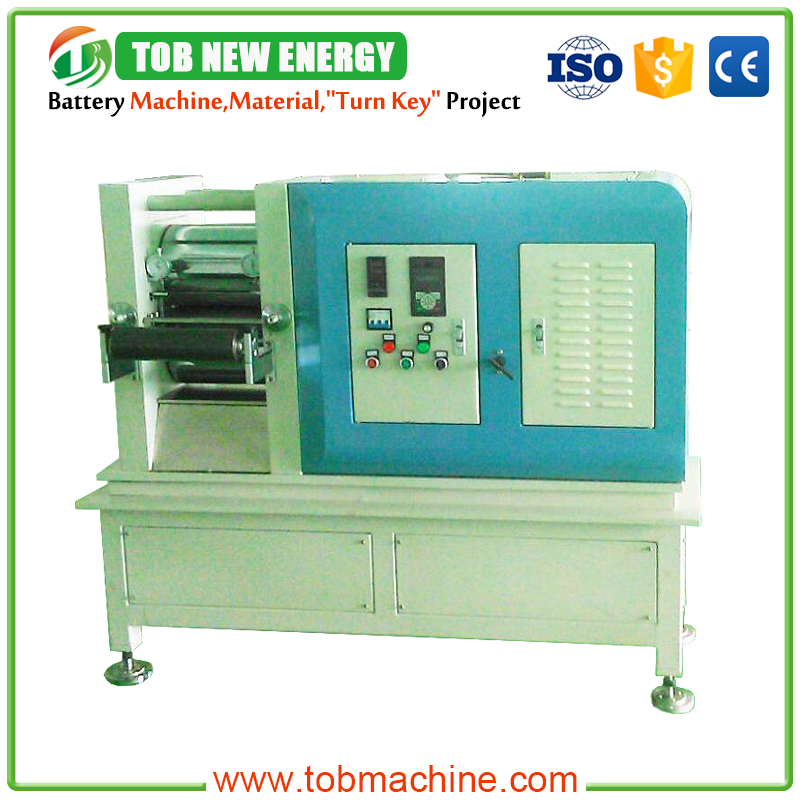

1 TOB-HP-300CHydraulic Roller pressure machineis anAutomatic Battery Electrode Rolling Press Systemwith precision digital pressure control . The pressure can be adjusted easily by touch screen. It biggest roller press width is 300mm.

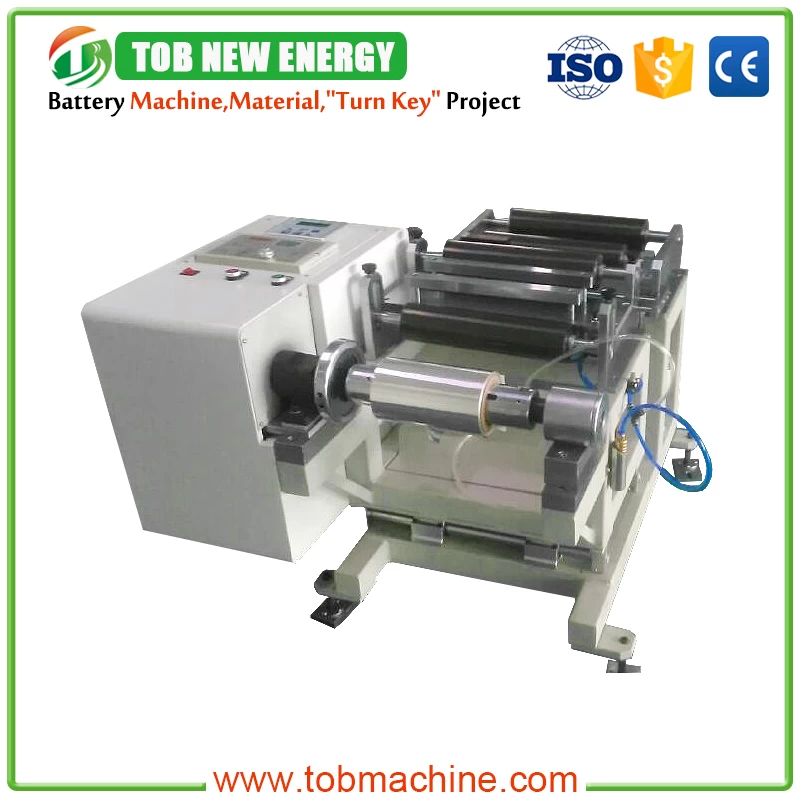

2 It is with tension controlled feeding and winding devices with the electric rolling press machine, which can roll to roll continuous Electrode calendering, suitable for battery electroderoll to roll calenderingfor pilot scale research work.
3 You can also just choose theHydraulic roller press machinewithout feeding and winding device as modelTOB-HP-300 Or you can also add heat function to this roller press machine with Temperature up to 130C as modelTOB-HP-300TorTOB-HP-300TCwith winding and feeding as continuous model..
|
Model
|
Roll to Roll Pressure Adjust Rolling Press Machine
TOB-HP-300C
|
|
Function
|
Calender battery electrode
|
|
Calender Thickness
|
0.01-3mm adjusted
|
|
Calender Width
|
Max 300mm
|
|
Calender Pressure
|
Max 20KN
|
|
Speed
|
1-3m/min
|
|
Working Roller
|
Diameter 210mm, 9Cr3Mo materials
|
|
Roller Width
|
300mm
|
|
Calender Model
|
Hydraulic press
|
|
Accuracy
|
0.003mm
|
|
Rolling Press Machine Power
|
1.5KW
|
|
Winding and Unwinding power
|
0.55KW
|
|
Tension Control
|
Absolute value photoelectric encoder with floating guide roller
|
|
Rolling Press Machine Size
|
About L1300mm*W600mm*H1300mm
|
|
Total Installation Dimension
|
L3000mm*W1200mm*H1300mm
|
|
Power Supply
|
380V 4KW
|
|
Electric control
|
With tension display, rolling speed display function
Electric motor revolution and connter revolution
|

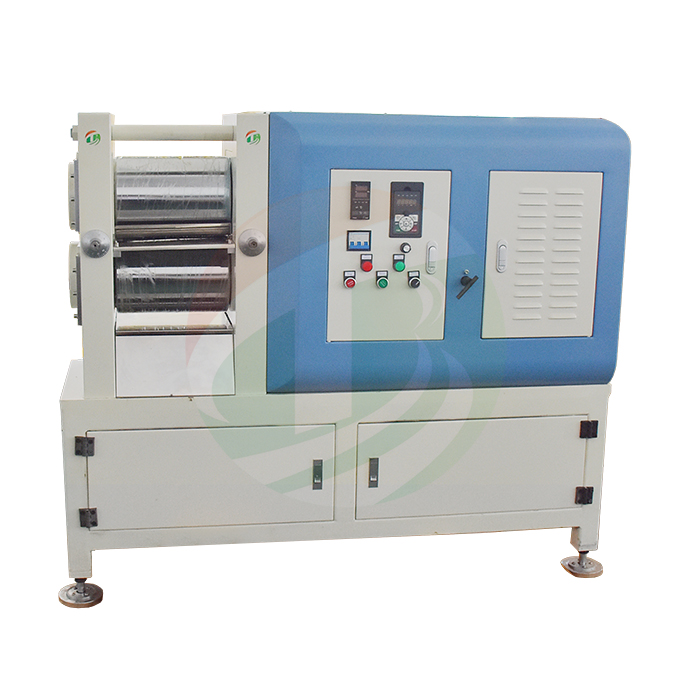

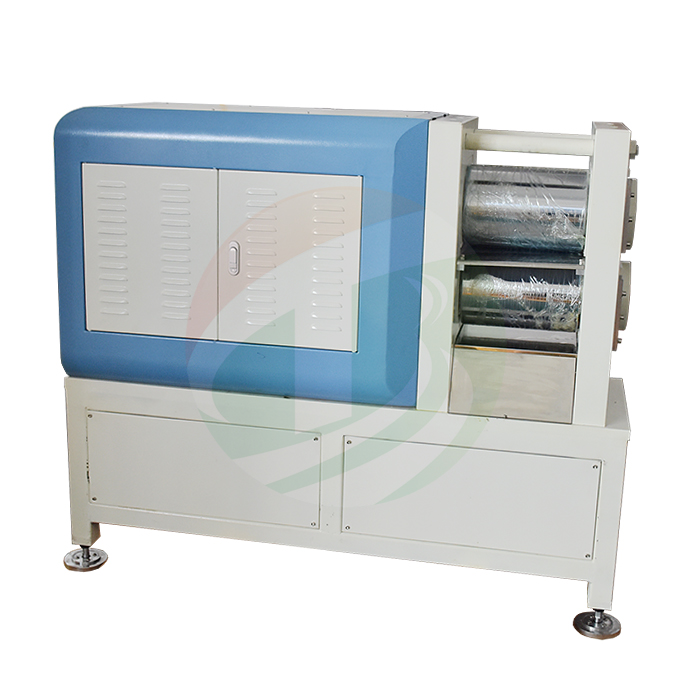

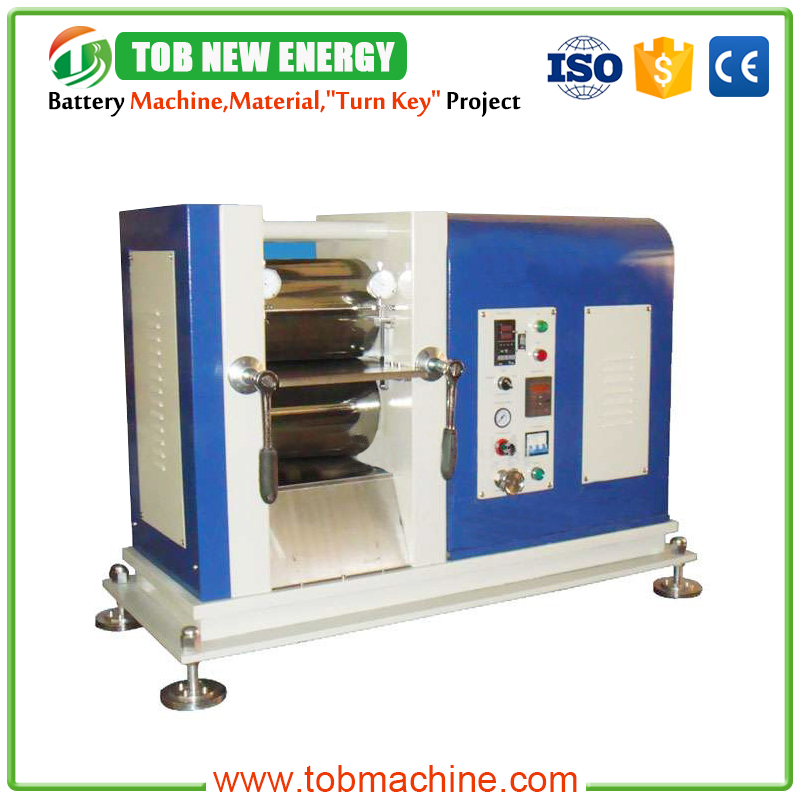

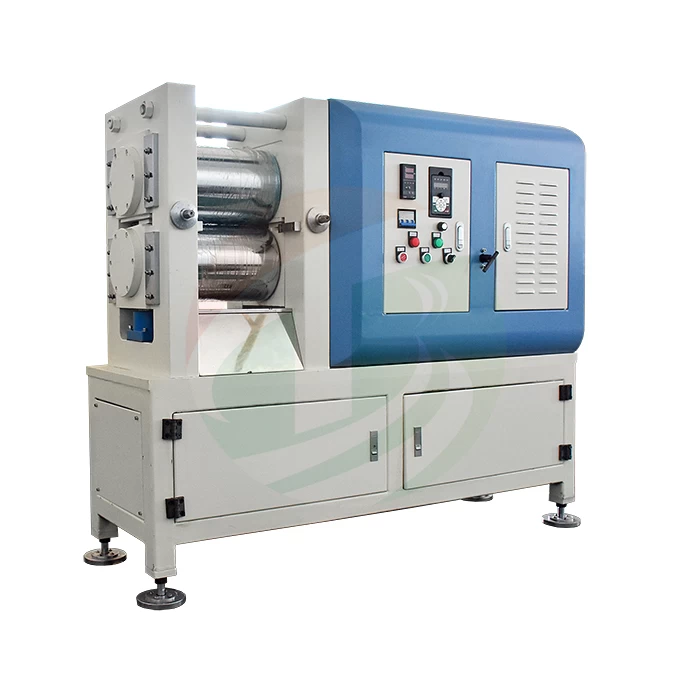

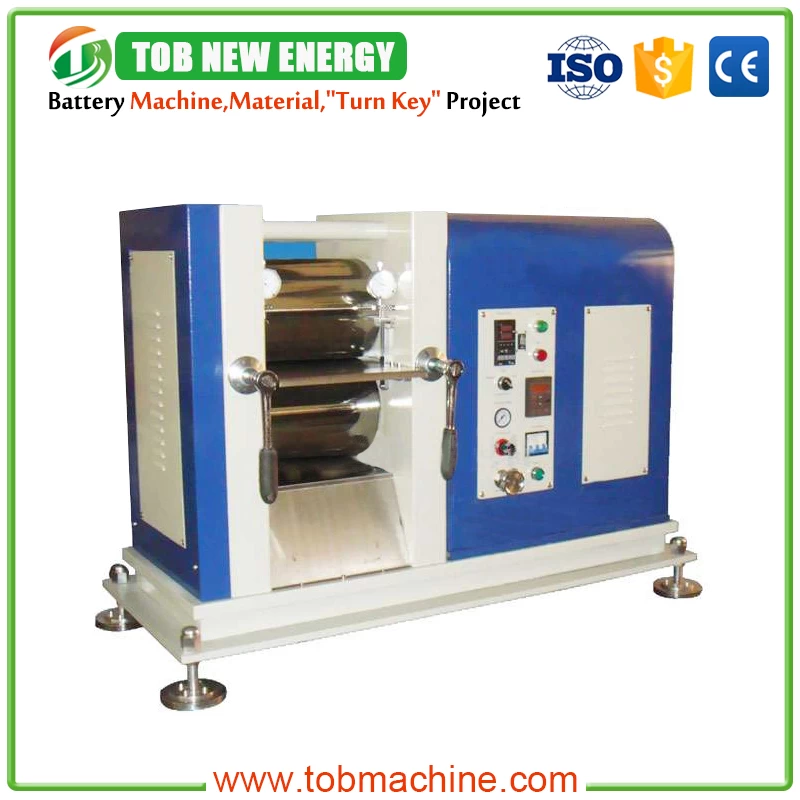

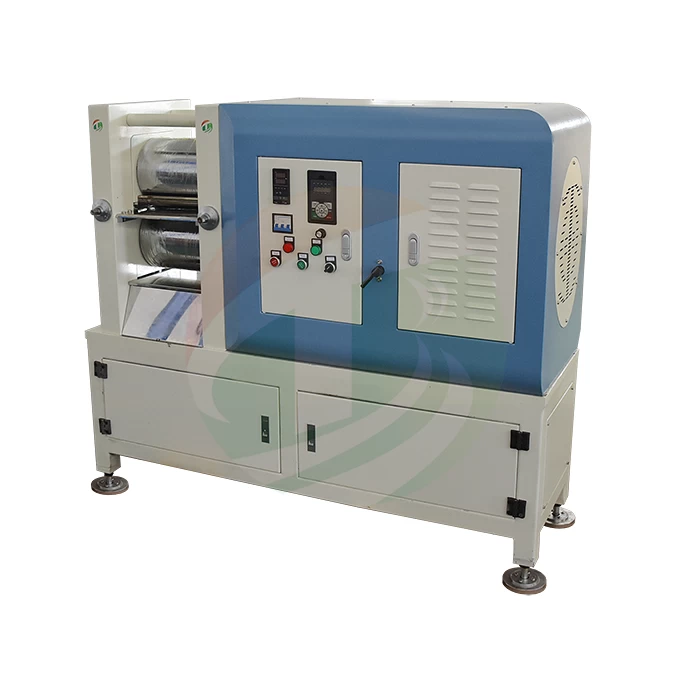

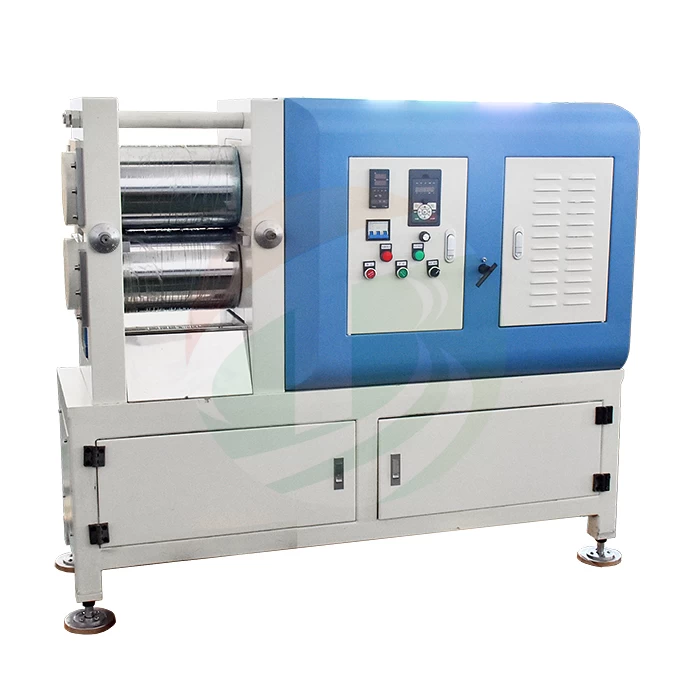

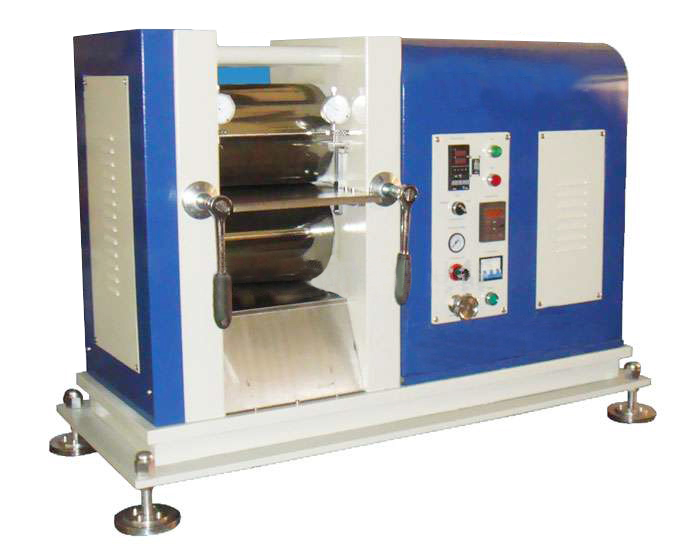

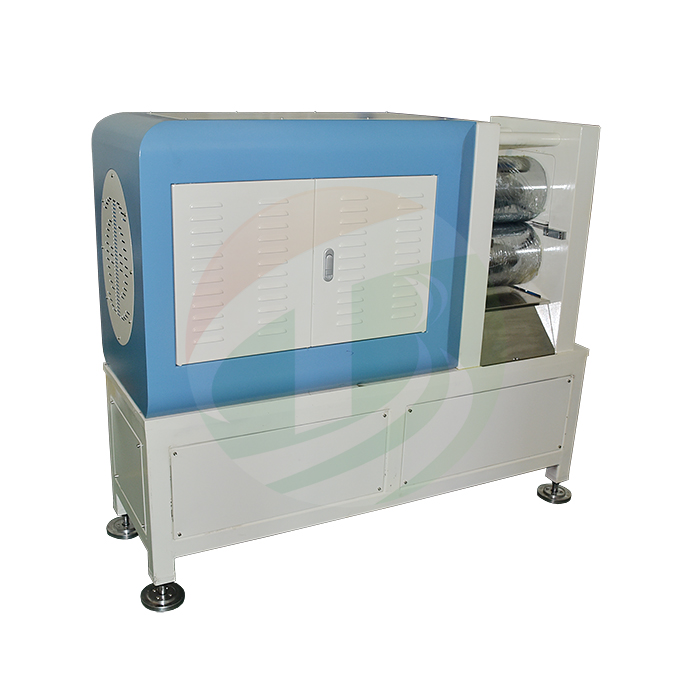

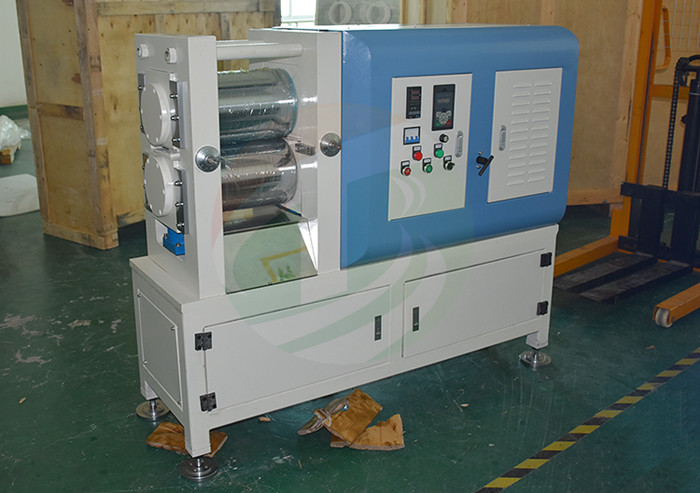

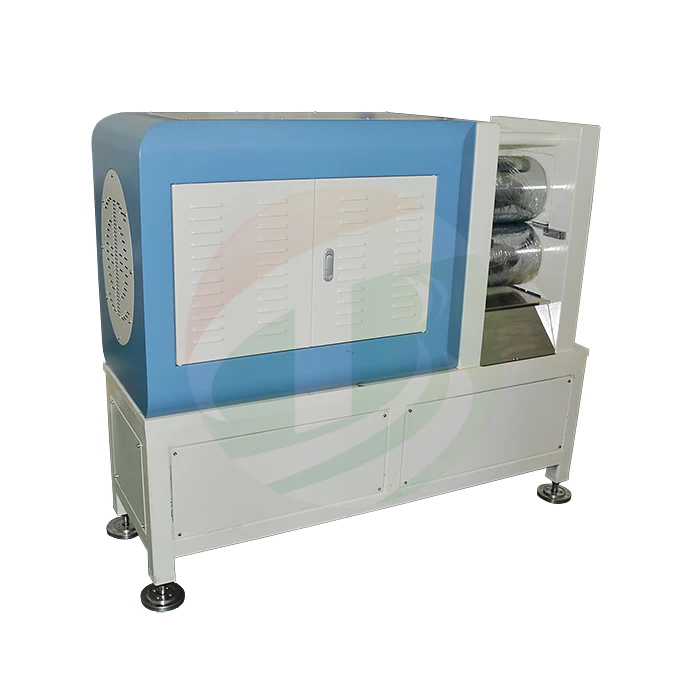

PRODUCT DISPLAY

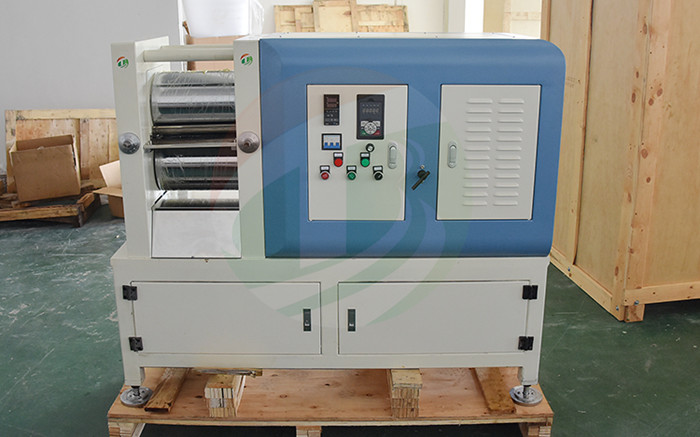

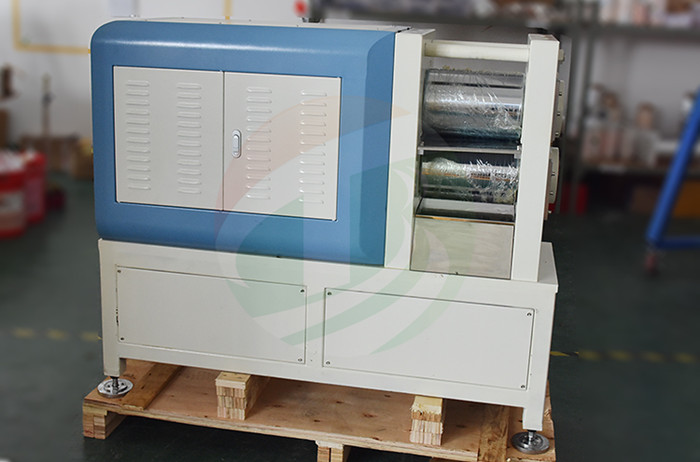

PACKAGE
