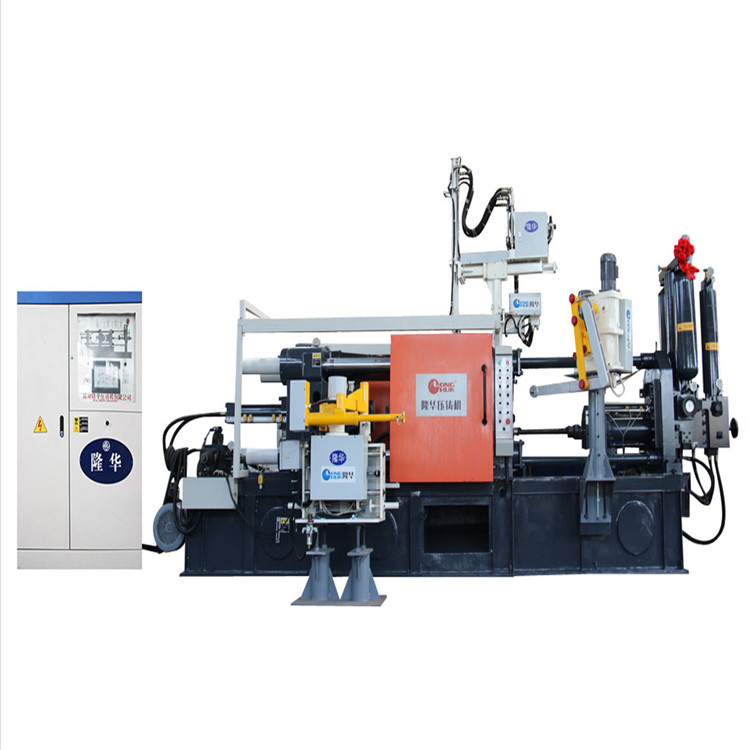

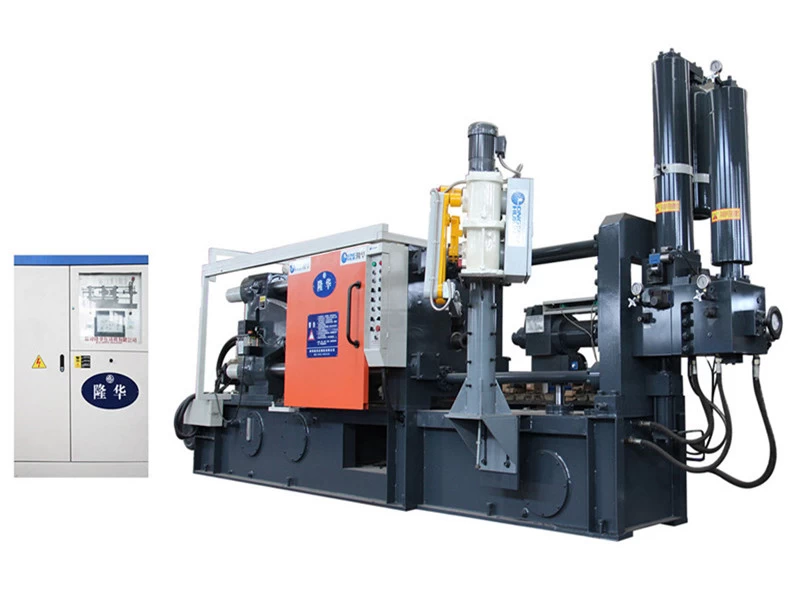

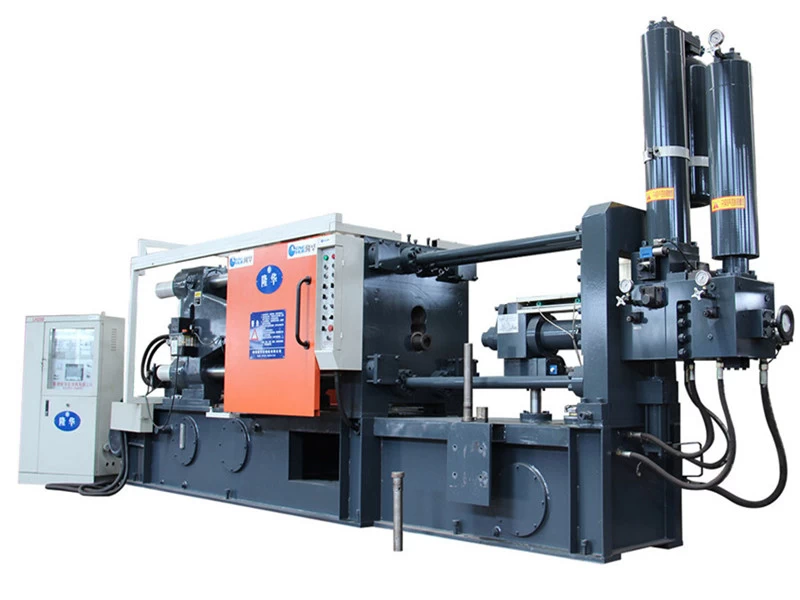

300T Fully Automatic Die Casting Machine For Making Brake Pads
Advantages of die casting machine:
1.Since we set up our factory in longhua in 1982, we always regard product quality as the foundation of our survival. Our surviving die casting machines have low failure rate, high precision and excellent quality, which have won a good reputation in the industry.
2.Service is the driving force of longhua development, Specialty is the foundation of longhua development longhua product design is reasonable, safe and reliable to use, fully meet all kinds of;Production process and technical requirements of type die casting.Strive to create a new, more perfect die casting machine to serve guangfa customers.
300T Fully Automatic Die Casting Machine parameter (300 t)
|
Items
|
Unit
|
Specification
|
|
Hydraulic Working Pressure
|
MPa
|
14
|
|
Clamping Force
|
KN
|
3000
|
|
Space Between Tie Bars
|
mm
|
560*560
|
|
Tie Bar Diameter
|
mm
|
￠110
|
|
Die Opening Stroke
|
mm
|
420
|
|
Injecction Force(intensify)
|
KN
|
240
|
|
Plunger launch distance
|
mm
|
140
|
|
Injection position
|
mm
|
0 -- 160
|
|
Plunger Diameter
|
mm
|
￠50----￠70
|
|
Injection Stroke
|
mm
|
420
|
|
Casting pressure (intensify)
|
MPa
|
143/99/73
|
|
Casting Fiange Protrusion
|
mm
|
12
|
|
Casting Fiange Diameter
|
mm
|
110
|
|
(40Mpa) Max Casting Area Under40Mpa
|
CM2
|
700
|
|
lnjection Weight(Al)
|
Kg
|
3.5
|
|
Die Height(Min--Max)
|
mm
|
250～650
|
|
Ejector Force
|
KN
|
150
|
|
Ejector Steoke
|
mm
|
120
|
|
Motor Capacity
|
Kw
|
15
|
|
Machine Dimensions (L*W*H)
|
m
|
6.4*1.7*2.8
|
|
Referential Machine Weight For Uplifting
|
T
|
12.5
|
|
Oil Tank Capacity
|
L
|
750
|
WE reserve the right to make any technical improvement without further notice
Our services:
According to the specific needs of customers, combined with our experience, we design and manufacture professional die casting machines for customers.
