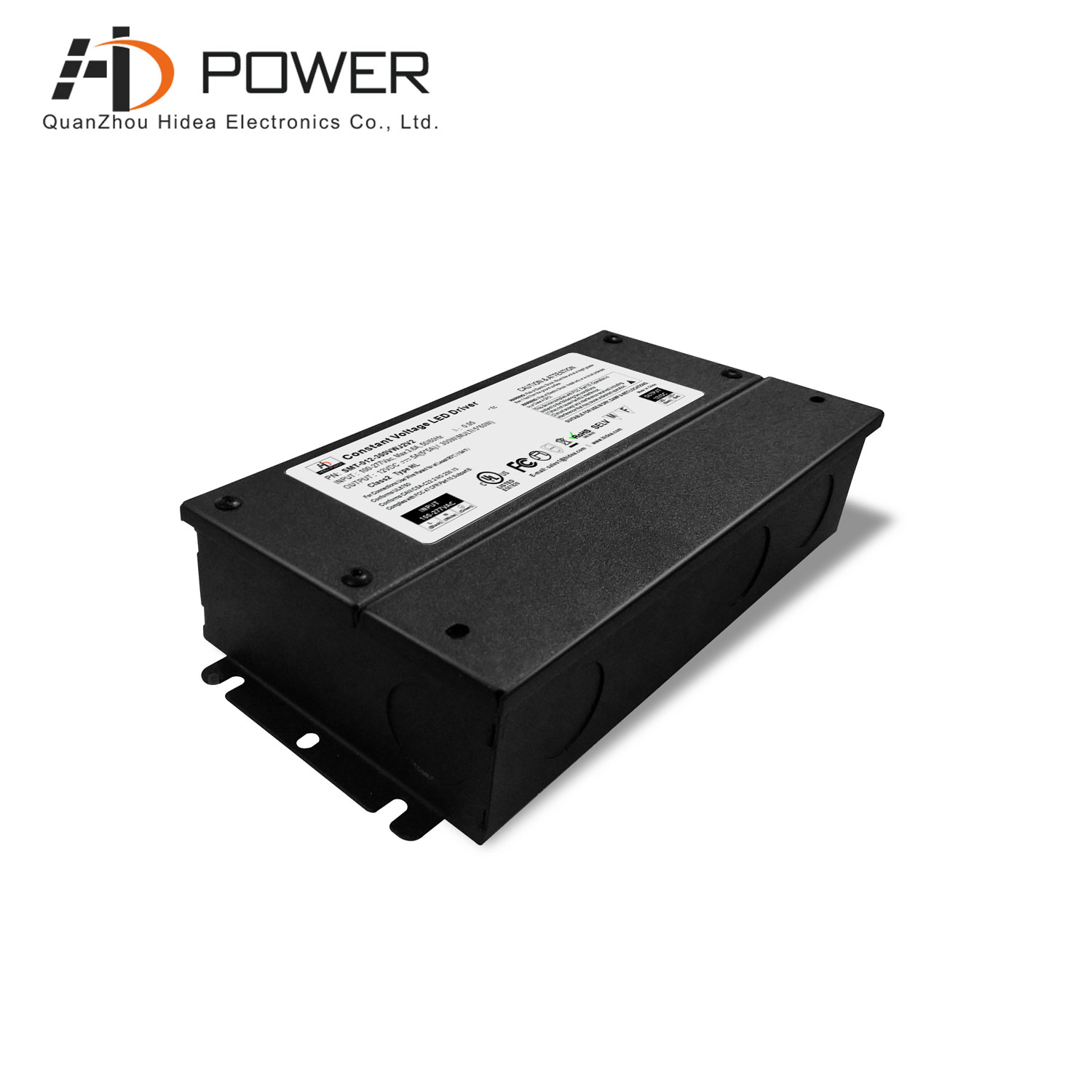

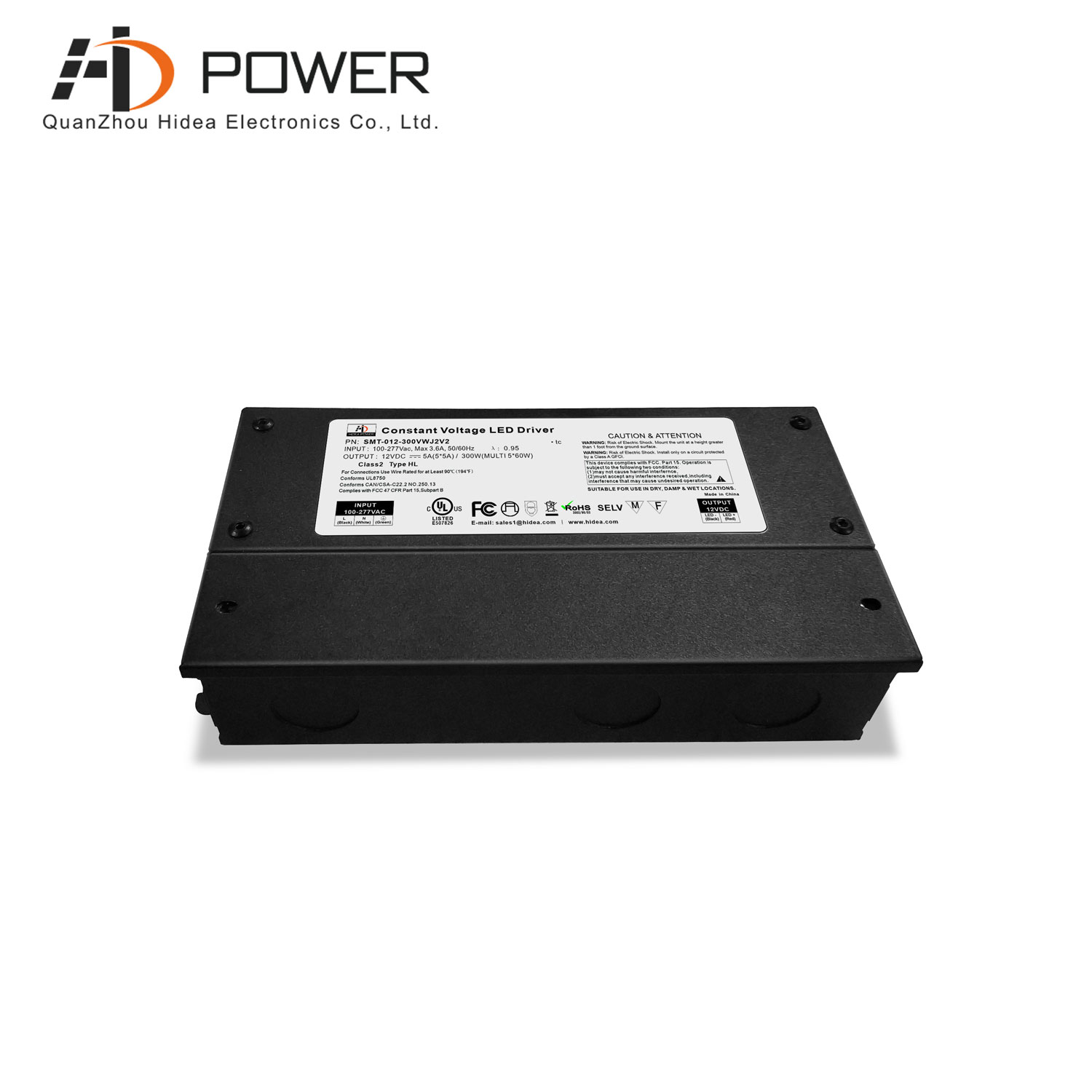

300w class 2 non dimmable led driver power supply for outdoor led lighting

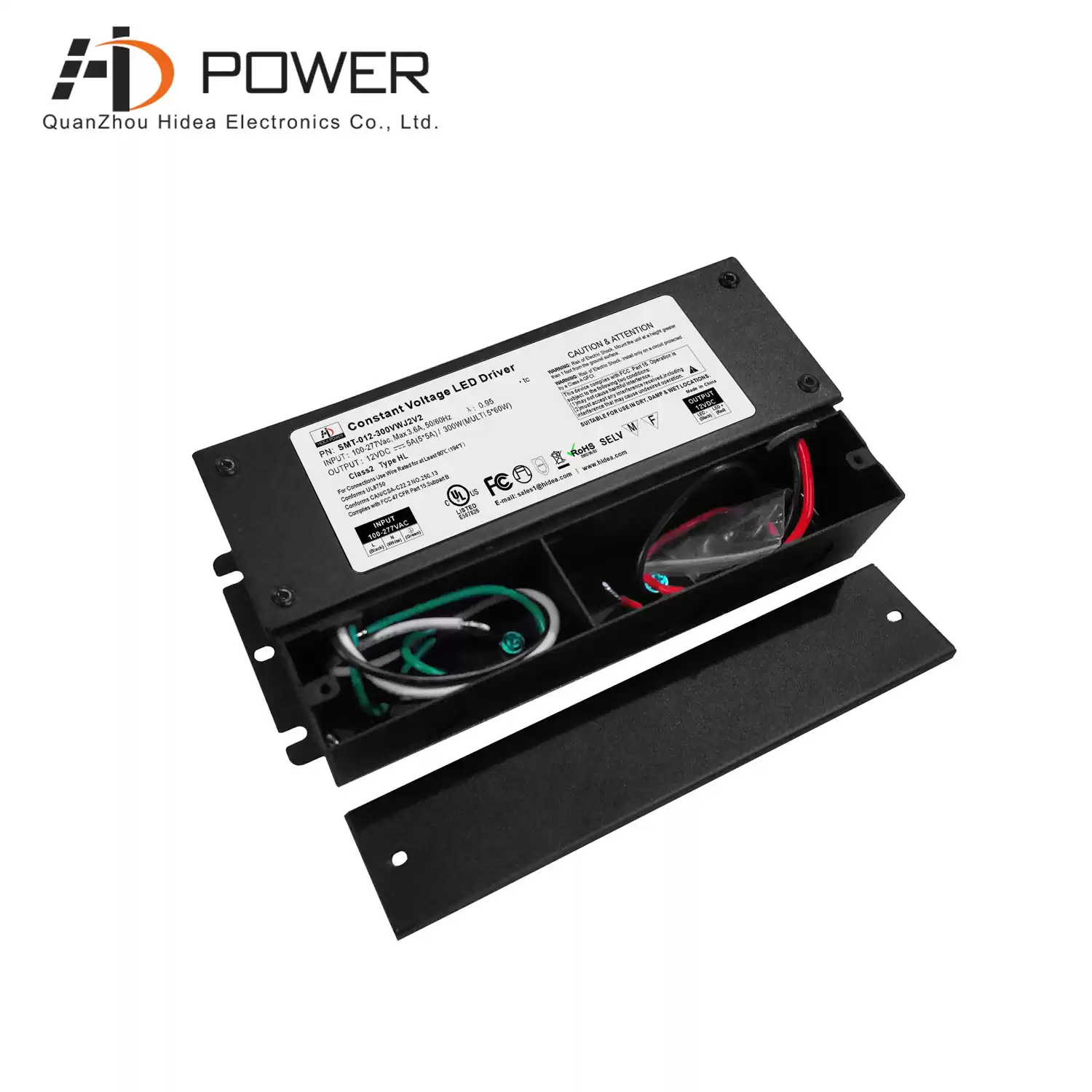

Class 2 high power led 300W driver built-in PFC function PF>0.99, body integrated power and junction box, can effectively protect the power supply, easy to install, with a seven-year warranty
Specification
|
Model
|
SMT-012-300VWJ2 (1.0 version)
SMT-012-300VWJ2V2 (2.0 version)
SMT-012-300VWJ2WV2 (3.0 version)
|
SMT-024-288VWJ2 (1.0 version)
SMT-024-288VWJ2V2 (2.0 version)
SMT-024-288VWJ2WV2 (3.0 version)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
±1%
|
|
Rated current
|
25A (multi current 5*5A)
|
12A(multi current 3*4A)
|
|
Rated power
|
300W (5*60W)
|
288W (3*96W)
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor (Typ.)@full load
|
0.99@120VAC 0.95@277VAC
|
0.99@120VAC 0.95@277VAC
|
|
THD(Typ.)@full load
|
<20%
|
<20%
|
|
Inrush Current(Typ.)
|
88%@120V 92%@277VAC
|
86%@120V 91%@277VAC
|
|
Efficiency(Typ.)@Full Load
|
3.4A@100VAC
|
3.6A@100VAC
|
|
AC Current(Typ.)
|
35A ,50%,960us @120VAC ; 43A,50%,1ms @277VAC;12.4A (twidth=430us) @277VAC
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% Hiccup mode ,recovers automatically after fault condition is removed
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
Others
|
Weight
|
2.2Kg (1.0 version)
|
|
Size
|
1.0 version: 301*108*46mm / 2.0 version: 301*130*46mm ;3.0 version: 301*140*45mm
|
|
packaging
|
330*220*245mm 8pcs /CTN G.W.:21.08KG/CTN (1.0 version) 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Related Products
|

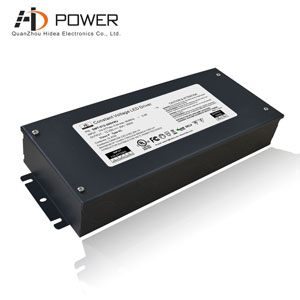

300W Non dimmable Constant voltage led power supply has passed UL certification, conforms to global safety lighting regulations, and is easy to install
