300W Outdoor Dimmable Symmetrical And Asymmetrical LED Flood Lights

With Lumileds LED and Meanwell driver as quality backup, this die-casting aluminum slimline floodlight has 100-130lm/W luminous efficacy at 100W, 150W, 200W, and 300W.


  • Beam Angle30°/60°/90°/TYPE Ⅱ/TYPE Ⅲ/TYPE Ⅳ
  • Light SourceLumileds/Osram/Cree
  • Lumen39,000lm
  • Wattage300W

Product Item: 300W Outdoor Dimmable Symmetrical And Asymmetrical LED Flood Lights

Overview:

This IP65 slimline range floodlight delivers up to 130 lumens per Watt with Lumileds Luxeon LED and professional optical lens. It has high uniformity of lighting. Slim as it is, its back-fin structure and ventilation holes, with a lamp housing manufactured entirely from die-cast aluminium, greatly accelerate the air-flow and heat dissipation to ensure durability and performance.

The lamp comes in white or black finish with powder coating, with silicone waterproof gasket and tempered glass perfectly matching, it’s IP65 and IK08, corrosion resistant, dustproof, and can withstand extreme surrounding environment.

Saving over 70% energy bill, this 5-year warranty super slim flood light bulbs are suitable for industrial and urban outdoor lighting such as factories, gardens, driveways, car parks, secure areas and leisure centers.


Specifications:

Model SR-FLS-A300W
Power
300W
Lumen Output
39,000lm
Light Source
LUMILEDS/OSRAM/NICHIA/CREE, etc.
Beam Angle
30°/60°/90°/TYPE Ⅱ/TYPE Ⅲ/TYPE Ⅳ
Driver
MEAN WELL/SOSEN, etc.
Input Voltage
AC 100-305V, 50/60Hz
Power Factor
>0.95
CRI
Ra>80
CCT
3000K/4000K/5000K/5700K/6500K
IP Rating
IP65
Dimming
Dimmable/Non-dimmable
Material
Die-cast Aluminium, Tempered Glass
Dimension
582 x444x60mm
Weight
11KG
Warranty
5 years

Features:
  • Luminous efficacy up to 100-130lm/W for different wattage and LED chip used.
  • Warranty 5 years with high standard Mean Well LED driver.
  • Symmetrical beam angles: 30°/60°/90°(120° available upon request); asymmetrical beam angles: TYPE Ⅱ/TYPE Ⅲ/TYPE Ⅳ.
  • Dimming options: 1-10V dimming, or DALI dimming, or Zigbee control.
  • Sensor options: PIR sensor, microwave motion sensor and daylight sensor.
  • Powder-coated die-cast aluminum housing, toughened safety glass, stainless steel external screws.
  • IP65&IK08, waterproof, dust-proof, and explosion-proof. High stability of working under harsh environment.
  • Energy savings of up to 70% compared to conventional fixtures with HPI or HQI lamps.
  • This slim high luminous efficiency floodlights are widely applied to urban lighting system from buildings to bridges, from roads to car parks, from green areas to pedestrian ones, from sports grounds to sports arenas.

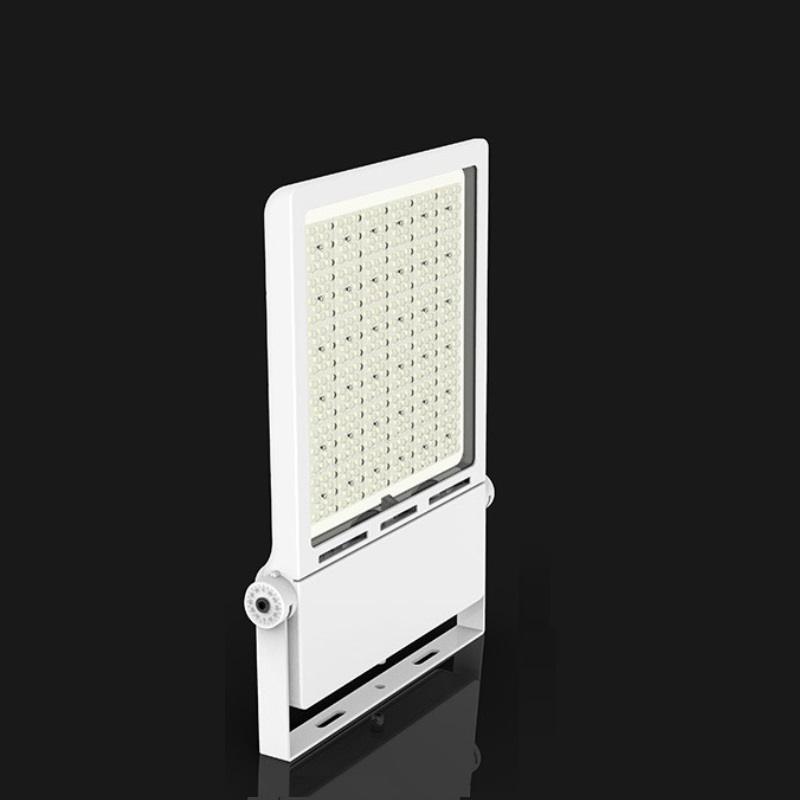

300W High Output Super Slim Flood Light

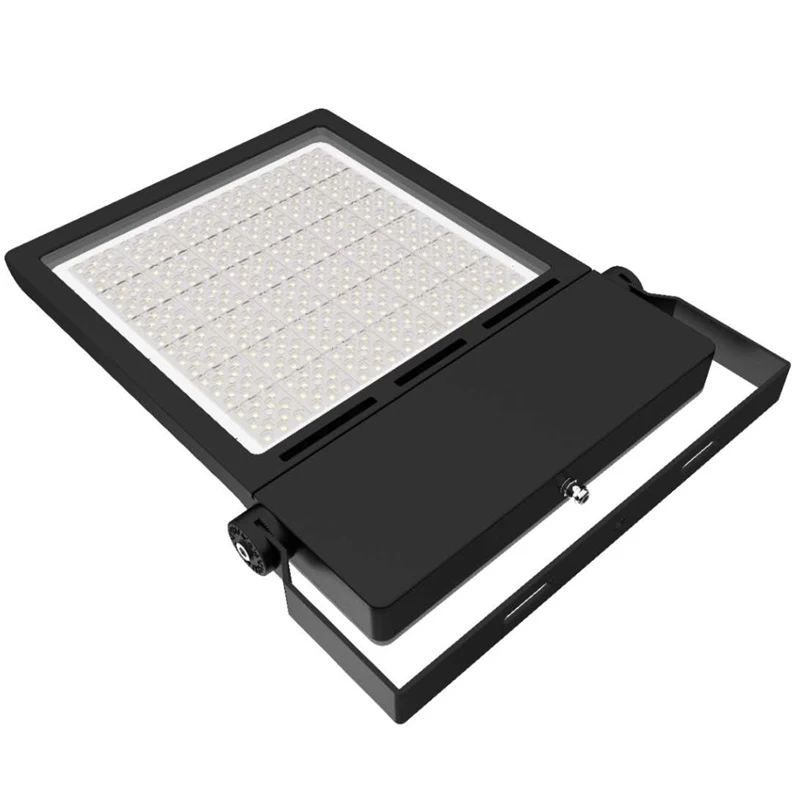

CE approved 300W Slim Floodlight Features

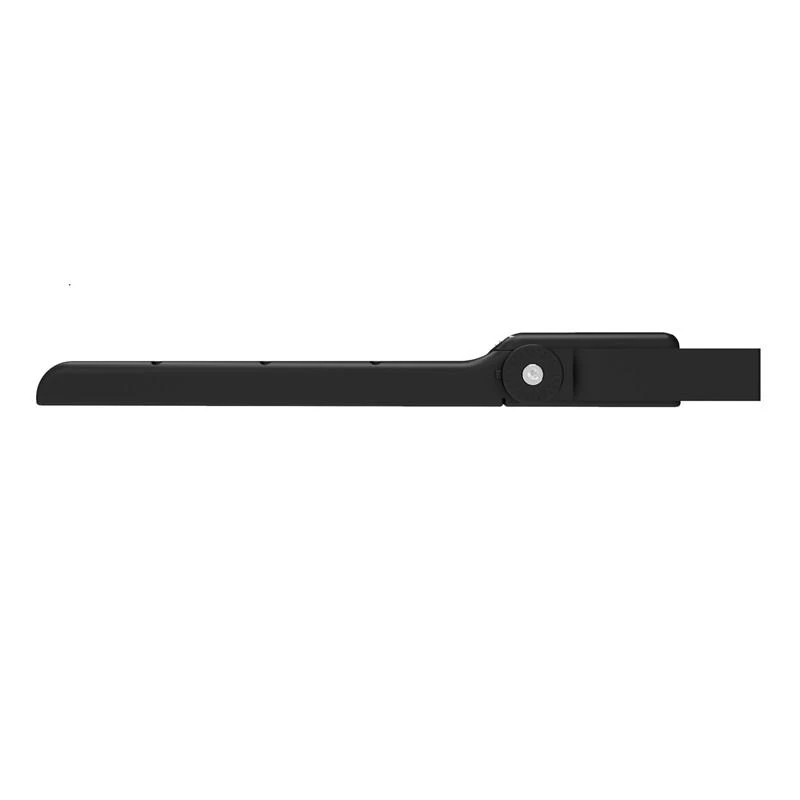

300W Floodlighting Sports Light Structure

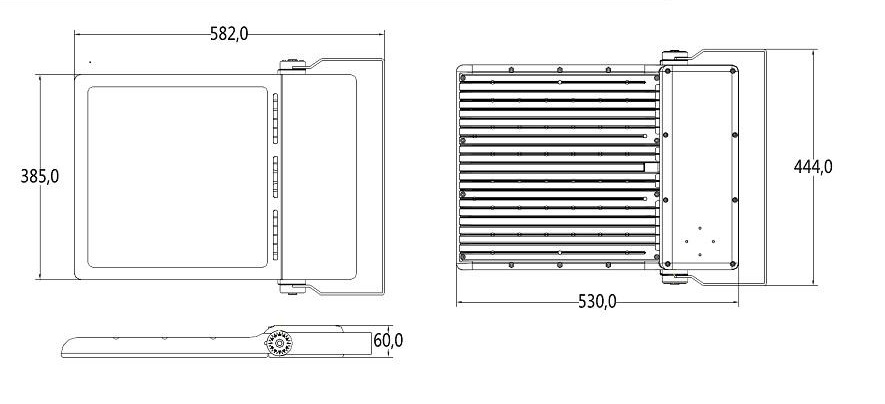

Super Slim CE approved Floodlight 300W Size

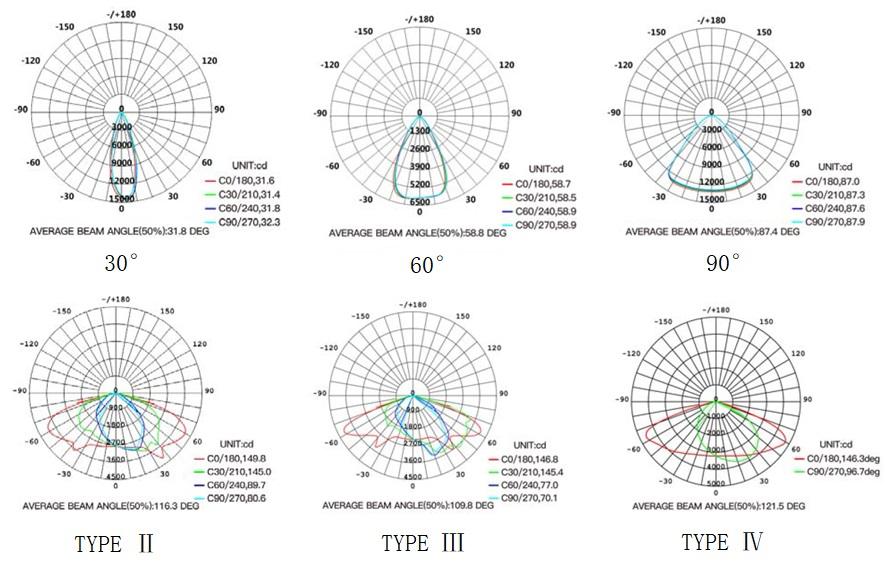

Asymmetrical Floodlight 300W Lighting Distribution

Floodlight Pole Mounting
Floodlight Wall Mounting

LED Floodlight Ground Mounting


LED Floodlight Ceiling Mounting

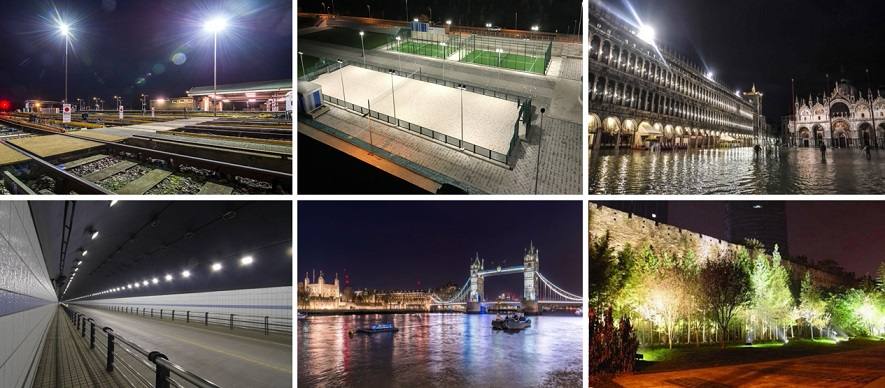

300W Urban Lighting Sports LED Floodlight Lighting Appication
