3000*1500mm standard flat bed Laser,automatic shuttle table for faster loading materials and offloading finished parts, dramatically save overall cycle time without a laser sitting idle for prolonged periods,no need to wait for operators to load sheets and unload parts.
warranty:2 years for laser source.
Packaging & Delivery : Plastic packing film inside, export wooden case with iron tubes frame outside.40 feet Flat rack container.
Loading Port: Shenzhen
Lead Time :Shipped in 45 days after payment
Machine parameters:
|
Model
|
F3015HE(4020/6020 options)
|
|
Working
Area
|
3000mm*1500mm
|
|
Fiber
Laser Power
|
1000W/1500W/2000W/3000W
|
|
X
axis stroke
|
1500mm
|
|
Y
axis stroke
|
3000mm
|
|
Z
axis stroke
|
120mm
|
|
X/Y
position accuracy
|
±0.05mm/m
|
|
X/Y
Reposition Accuracy
|
±0.03mm
|
|
X/Y
axis Max Acceleration
|
1.2G
|
|
Max
Velocity of Movement
|
120m/min
|
|
Laser
Cutting Head
|
China
WSX .Germany Precitec.Highyag. Swiss Raytools.
|
|
Laser
cnc control
|
China Cypcut or PA.beckoff.
|
|
Servo
Motor
|
Japan or France Brand
|
|
Rack
and pinion
|
Taiwan
brand
|
|
Workbench
max load
|
800KG
|
|
Min
Cutting Kerf
|
0.12
mm
|
|
Overall
Dimension L*W*H
|
8020*3050*1700mm
|
|
Machine
Weight
|
Approx 10000KG
|
Baisheng Fiber Laser Cutting Machine Exclusive Features:
1.Unique leading climbing pallets ,synchronous exchanging tables and at same height. faster and better for cutting accuracy.
2.Smart control exhaust system that creates clean jobshop.
3.Thick sheet metal welded industrial grade machine bed ,true heat-treatment ,annealing machine bed,unique"W"beams strengthened.
4.Aviation grade extruding aluminium beam ,no any pinhole, allowed.lighter in weight but more tough.
5.Durable industrial machine bed. independent control cabinet.
Fiber Laser advantages:
Fiber laser is a time saver and energy saver for metal fabrication and the main stream for now and the future .fiber lasers have become the true workhorse of metal fabrication,and they have never been more productive.
They cut nests at unprecedented speeds and produce finished parts with fine edge while power draw not so high.
Fiber laser cutting machines offers an unbeatable high production level and excellent cutting quality for thin and medium thickness sheets.
The maximum sheet thickness depends on the chosen output power.
The high energy efficiency of the fiber laser ensures a significant reduction in energy consumption. The machines are available with output power ranging from 700 watts to 2000 watts.

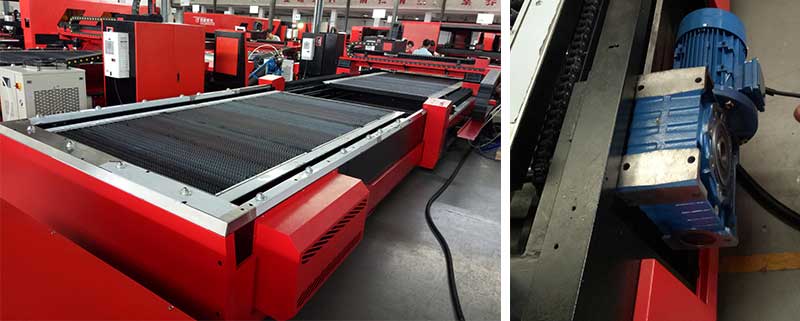

Machine photos from factory :
Photos for Machine details
Better Gantry-Light and tough.
CypCut laser
cutting control system
(CypCut for short) is a set of system software designed
for plane laser cutting, including laser cutting process, common layout
function and laser processing control, most of its functions are applied in
graphics processing, parameter settings, custom cutting process editing,
layout, path layer planning, simulation and cutting process control.
CypCut
software can realize process control only if used with Dog and Control Card.
CypCut will
enter DEMO mode while running on a computer without Dog, so that you can get
all other functions except process
control for
normal use.
Therefore,
CypCut can be installed in a separate notebook for the design before
processing.
