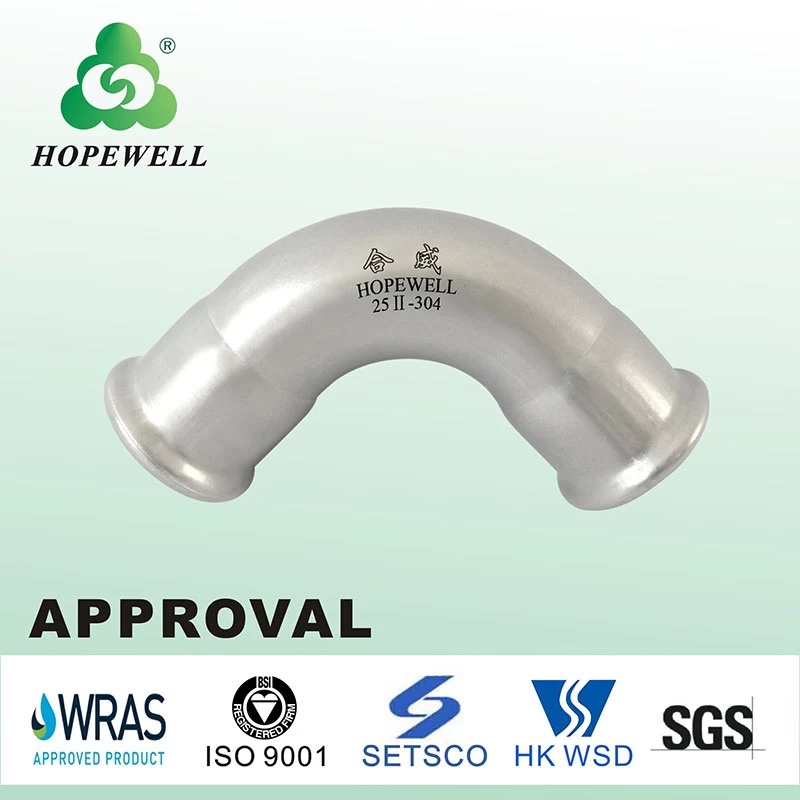

304 inox pipe plumbing stainless steel 90 degree elbow
|
Item
name
|
Item No.
|
Size (DN/mm)
|
Out dia (mm)
|
|
90° equal elbow
|
HW04051
|
DN15
|
15.9
|
|
90° equal elbow
|
HW04052
|
DN20
|
22.2
|
|
90° equal elbow
|
HW04053
|
DN25
|
28.6
|
|
90° equal elbow
|
HW04054
|
DN32
|
34
|
|
90° equal elbow
|
HW04055
|
DN40
|
42.7
|
|
90° equal elbow
|
HW04056
|
DN50
|
48.6
|
|
90° equal elbow
|
HW04057
|
DN65
|
76.1
|
|
90° equal elbow
|
HW04058
|
DN80
|
88.9
|
|
90° equal elbow
|
HW04059
|
DN100
|
108
|
Hopewell produce 304 inox pipe plumbing stainless steel elbow and 90 degree elbow. Very good quality steel elbow.
Standard:
90 degree elbow standard: GB/T 19228.1-2003 (including EN10312 standard and GB Ⅱ standard);
Pipe standard: GB/T 19228.2-2003
Sealing ring standard: GBT 19228.3-2003
Material for 304 inox pipe plumbing stainless steel 90 degree elbow:
Stainless steel 304 and 316 available.
Sealing ring material: EPDM
Press fitting range:
Coupling -- Stainless steel equal pipe coupling, Reducer-A, Reducer-B, Adjustable coupling, Female coupling, Rotatable coupling, Male coupling;
Elbow -- equal elbow, plain elbow, reducing elbow, Female elbow, Based female elbow, Short female elbow, Male elbow;
Tee -- equal tee, reducing tee, Female tee, Male tee;
Pipe cap, pipe bridge and Flange.
Stainless steel pipe
Sizes range for 304 inox pipe plumbing stainless steel 90 degree elbow:
The norminal diameter are: DN15, 20, 25, 32, 40, 50, 65, 80 and DN100, including EN10312 standard and GB Ⅱ standard.
EN10312 standard out diameters are: 18, 22, 28, 35, 42, 54, 76.1, 88.9, 108mm.
GB Ⅱ standard out diameters are: 15.9, 22.2, 28.6, 34, 42.7, 48.6, 76.1, 88.9, 108mm.
Under production:
Install Effect:
Loading:
Please contact us for more details about 304 inox pipe plumbing stainless steel 90 degree elbow and price list.
