304 inox plumbing SS ​tee ​stainless steel tube fittings

We produce Tube Fitting and ss tube fittings, good reason for you to choose our stainless steel tube fittings and tee tube fitting.



304 inox plumbing SS tee stainless steel tube fittings


Tube Fitting


Item name Item No. Size (DN/mm) Out dia (mm)

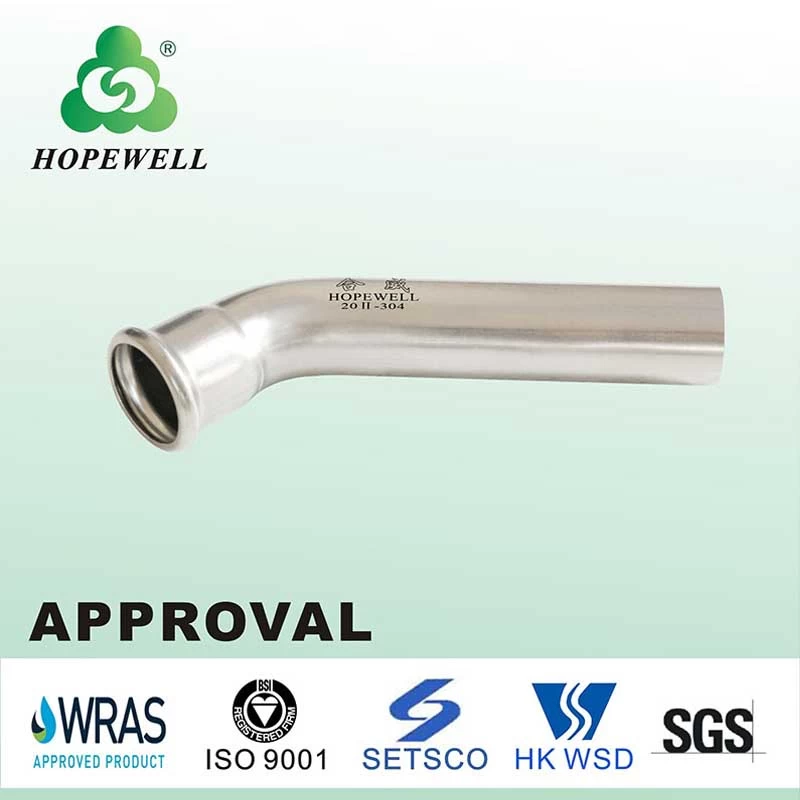

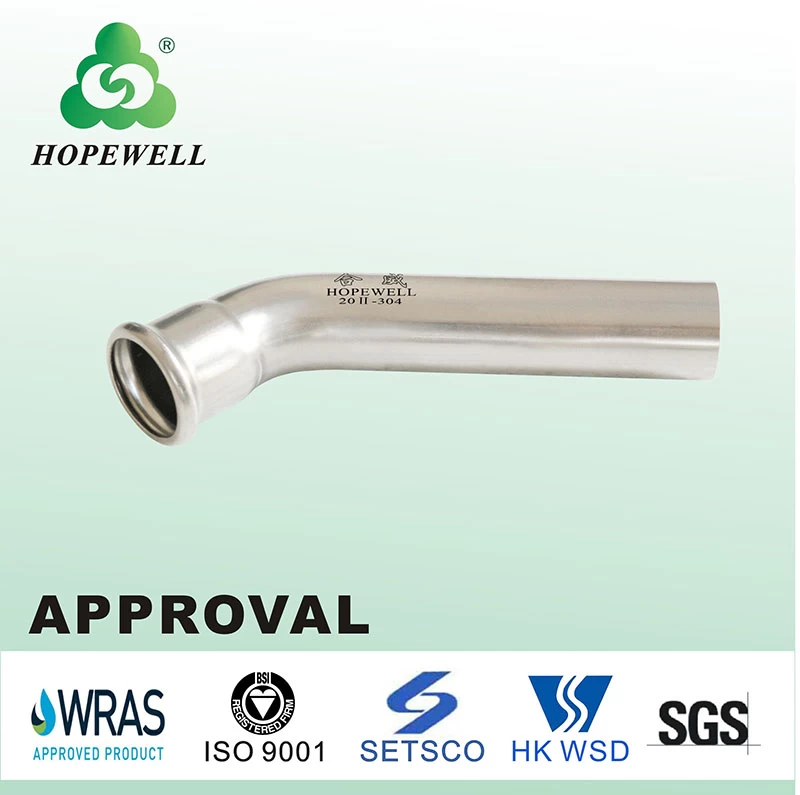

45° plain elbow HW08091 DN15 15.9
45° plain elbow HW08092 DN20 22.2
45° plain elbow HW08093 DN25 28.6
45° plain elbow HW08094 DN32 34
45° plain elbow HW08095 DN40 42.7
45° plain elbow HW08096 DN50 48.6
45° plain elbow HW08097 DN65 76.1
45° plain elbow HW08098 DN80 88.9
45° plain elbow HW08099 DN100 108


We produce Tube Fitting and ss tube fittings, good reason for you to choose our stainless steel tube fittings and tee tube fitting.


Standard:

ss tube fittings standard: GB/T 19228.1-2003 (including EN10312 standard and GB Ⅱ standard);

Pipe standard: GB/T 19228.2-2003

Sealing ring standard: GBT 19228.3-2003



Material for 304 inox plumbing SS tee stainless steel tube fittings:

Stainless steel 304 and 316 available.

Sealing ring material: EPDM



stainless steel tube fittings range:

Coupling -- Stainless steel equal pipe coupling, Reducer-A, Reducer-B, Adjustable coupling, Female coupling, Rotatable coupling, Male coupling;

Elbow -- equal elbow, plain elbow, reducing elbow, Female elbow, Based female elbow, Short female elbow, Male elbow;

Tee -- equal tee, reducing tee, Female tee, Male tee;

Pipe cap, pipe bridge and Flange.

Stainless steel pipe


Sizes range for 304 inox plumbing SS tee stainless steel tube fittings:

The norminal diameter are: DN15, 20, 25, 32, 40, 50, 65, 80 and DN100, including EN10312 standard and GB Ⅱ standard.

EN10312 standard out diameters are: 18, 22, 28, 35, 42, 54, 76.1, 88.9, 108mm.

GB Ⅱ standard out diameters are: 15.9, 22.2, 28.6, 34, 42.7, 48.6, 76.1, 88.9, 108mm.




  Under production:

stainless steel tube fittings



  Install Effect:

tee tube fitting



  Loading:


ss tube fittings


Please contact us for more details about 304 inox plumbing SS tee stainless steel tube fittings and price list.
