High Speed Energy Saving Centrifugal Blower
Both the air pressure and flow of the centrifugal blower have been greatly improved by orders of magnitude compared with the traditional blower. Not only our blower can supply much higher pressure and more flow, contrast against other types of blowers, we also saved approx. 25-40% energy cost according to on-site situation.
Product Feature
Customer also will have following advantages but not limit to-
A.the blower will have less on-site working noise.
B.less the energy consumption will be used.
C. the blower has less space and weight so it can be transported in one piece and is easy to be installed
D.The blower also has the self-learning and self-adjustment adaptive function;
E.the control platform is capable to be developed by the request of any input signals from IoT
Product Specifications
|
Name
|
High Speed Centrifugal Blower
|
|
Model
|
DIN-INT-R21.5-P9-30
|
|
Max.Power (kw)
|
30
|
|
Pressure （mmH2O)
|
<=4500
|
|
Flow (m3H)
|
2700
|
|
Dimension (L*W*H mm)
|
900*780*800
|
|
Gross Weight (KG)
|
128
|
|
Flange Diameter
|
DN150
|
Application Field
BDIT blowers have been designed specially to meet the harsh working condition (long term sustainable working/anti salty&humid condition). So the product can be worked 24*7 in the out-door conditions.

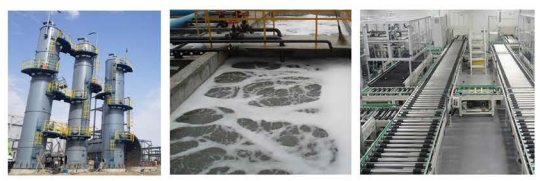

The blowers are widely be used by industrial application, such as Electrolytic Tank, civil and industrial waste water all kinds of aeroic application.
In addition, our products have been widely accepted by aquaculture industries to:
· Clean the water
· Push air/oxygen into the water for aquatic animals
The customers are raising cod fish/shrimps/perch/epinephelus/abalone/sea cucumber etc.
Packaging
Composite wooden box or paper box are optional
