Pu sandwich wall panel characteristics
☆ Different surface types of PU wall panel;
☆ Best performance of waterproof, sound-proof, fireproof;
☆ Polyurethane sandwich panel with good function of thermal and insulated;
☆ Easy to installated, reduce the installation process time, and labour;

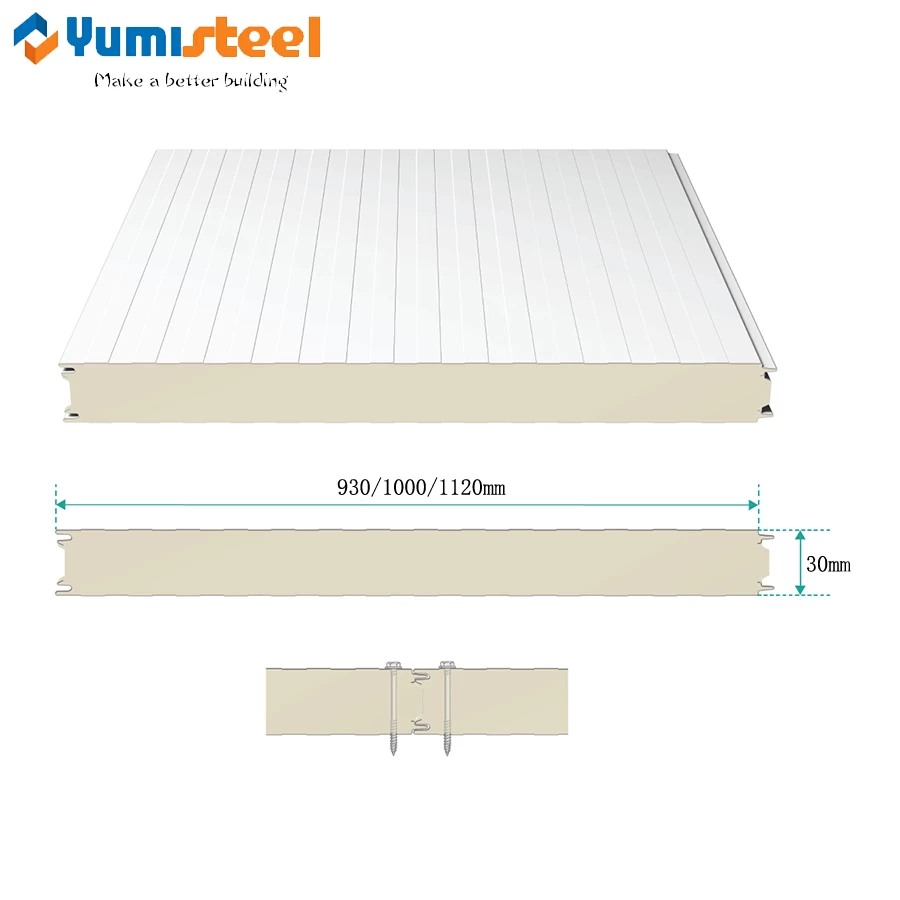

Pu sandwich wall 30mm plates model type
☆ Polyurethane wall sandwich panels type:

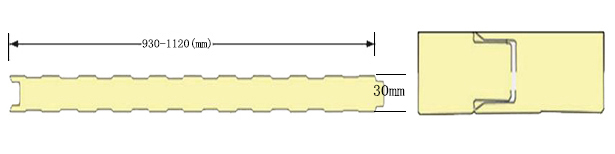

☆ Lock method:
Pu sandwich wall sheets applications

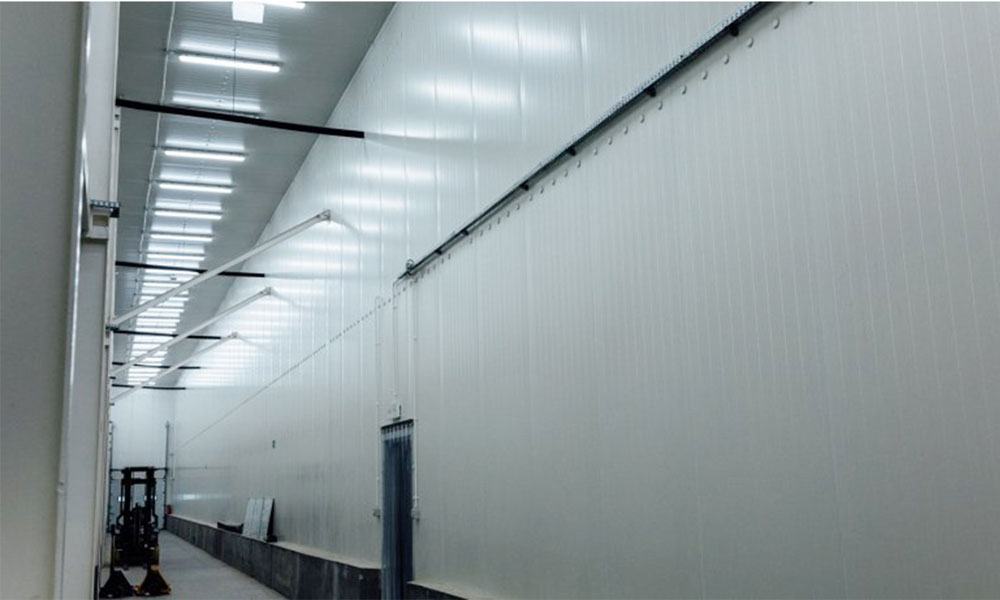

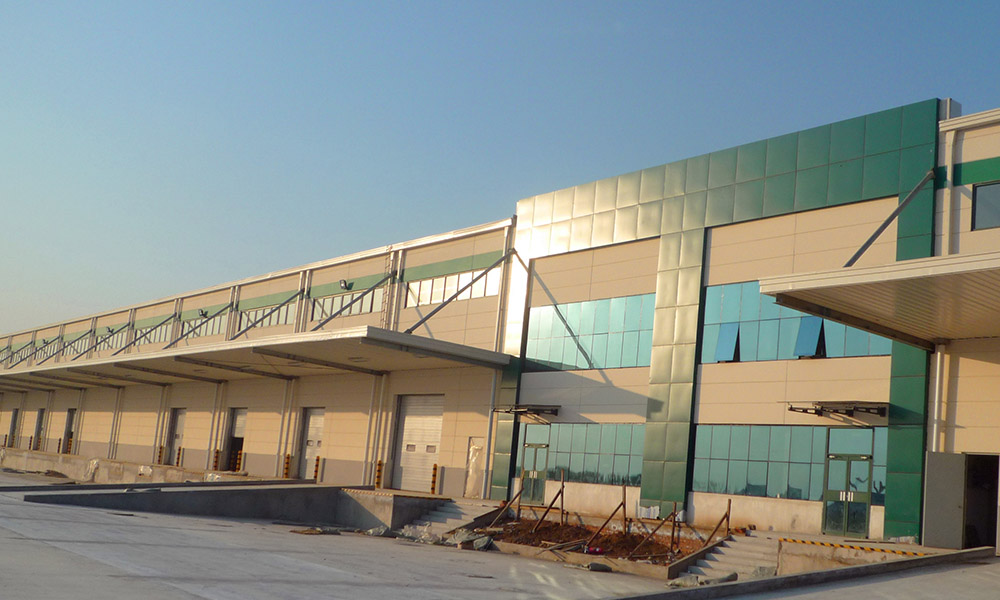

The PU sandwich wall panel is widely used in the large-sized factory buildings, warehoused, industry, cold room, storages, parking shed, exhibition halls, gymnasiums, steel structure buildings, office buildings etc.
Thermal pu sandwich wall panels specifications
|
Product name
|
PU foam insulation sandwich wall boards
|
Remark
|
|
Effective width
|
930/1000/1120 mm
|
|
|
Panel thickness
|
30mm
|
35, 40, 50, 60, 75, 100, 120, 150, 200, 250 mm can be choosen
|
|
Surface sheets
|
PPGI/ PPGL/ Aluminum sheets/ Al-Mg-Mn alloy metal sheets/ Stainless steel/ PVC sheet
|
|
|
Steel thickness
|
0.40 - 0.70 mm
|
|
|
Aluminum sheets/ Al-Mg-Mn alloy metal sheets
|
0.70 - 1.20 mm
|
|
|
Stainless steel
|
0.40 - 0.60 mm
|
|
|
Core material density
|
40 - 42 KG/M³
|
|
|
Regular panel color
|
White grey, Sea blue, Sliver grey, Dk grey, Iron grey
|
Color could be customized too.
|
|
Coating type choice
|
PE/ PVDF/ HDP/ SMP, etc.
|
|
|
Available length
|
20FT container: ≤ 5.95m
40FT container: ≤ 11.95m
|
|

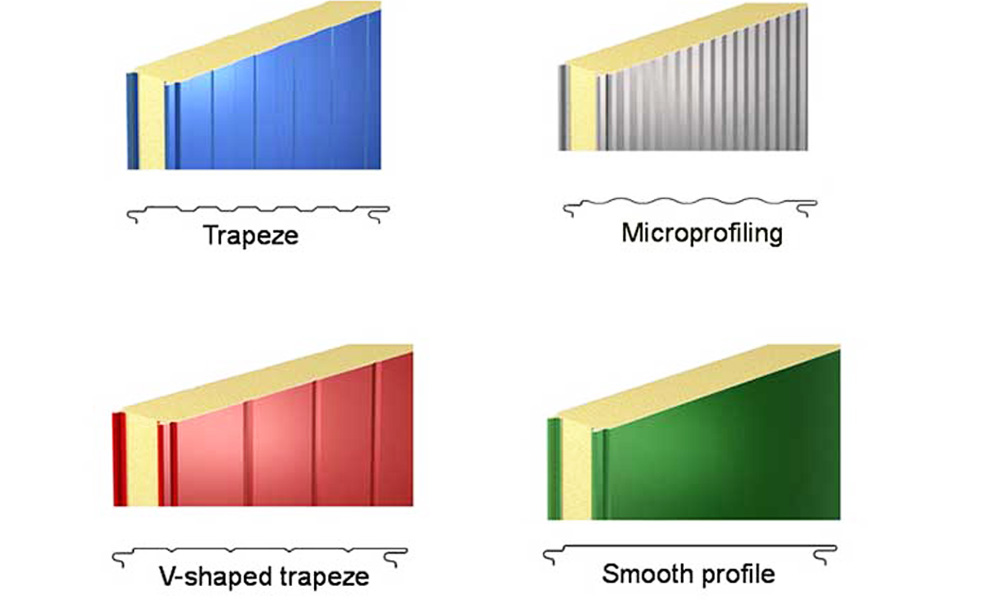

Pu foam sandwich wall panel surface types
There are 4 types of panel surface profiled for your choices.Trapeze, Micro profiling, V-shaped trapeze, Smooth profile.
☆ Trapeze,is also called wide ribs,or linear;
☆ Micro profiling is also called micro ribs,or corrugated ribs;
☆ V-shaped trapeze is also known as V wide ribs,or grooved ribs;
☆ Smooth profile is know as pure flat,or no profiling,too.
Polyurethane wall sandwich panel renderings
Packing & Delivery:
☆ Packing:
Seaworthy packing standards:
PVC on both sides to protect the roof panel surfaces;
Packed with kraft paper to protect the panel ends;
Put EPS foam on the each space to keep the panels from squeezing each other.
If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.
☆ Delivery:
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
