Solenoids are complex coils of wire that are used for the transfer of electricity into mechanical energy, or even for creating a uniform magnetic field. These coils have been around for years, used in a variety of applications. Solenoids are electrical current carrying coils of wire in the form of a cylinder that typically surround an iron core that has the ability to move within the coil. The iron core is what helps to convert electricity generated into mechanical energy for movement.
Product Description
|
Specifications
|
|
Brand
|
Landa
|
Product Name
|
tubular push pull solenoid
|
|
Model
|
TU4875
|
Rated Voltage
|
DC 12v 24v
|
|
Power
|
170w
|
Force
|
0-80N
|
|
Waterproof Class
|
IP65
|
Duty Cycle
|
10%
|
|
Stroke
|
0-30mm
|
Material
|
Metal, Electronic Parts
|
|
Action Form
|
Holding type
|
Weight(N.W.)
|
1.5kg
|
|
Install Style
|
Screw
|
Thread Size & Deepth(mm)
|
–
|
|
Hi-Pot Test
|
AC 600V 50/60Hz 2s
|
Insulation Class
|
B
|
|
Packaging Details
|
|

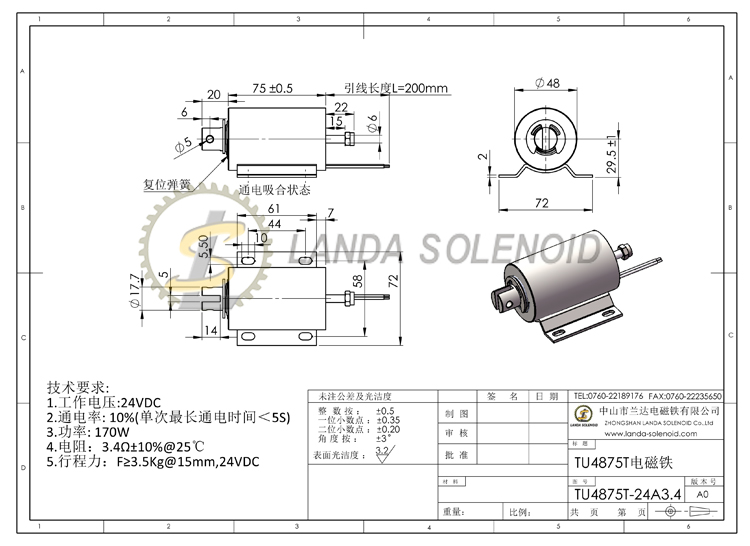

Body Size
|
D48*L75(mm)
|
Carton Box Size(Standard)
|
350*310*180(mm), accepted custom
|
Product Feature
1. Push-pull type, linear motion, DC solenoid electromagnet, supply reset spring or no reset spring plunger.
2. Tubular solenoid are excellent used for locking solenoids, whether for doors, security or industrial machiney.
3. Typically used for longer stroke, can also be designed for high force heavy duty applications.
4. Single hole mounting holes, easy to install, accepted custom as you needed.

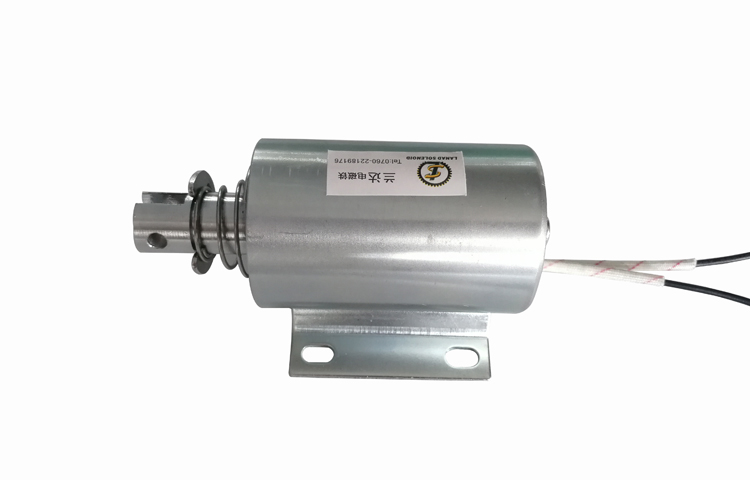

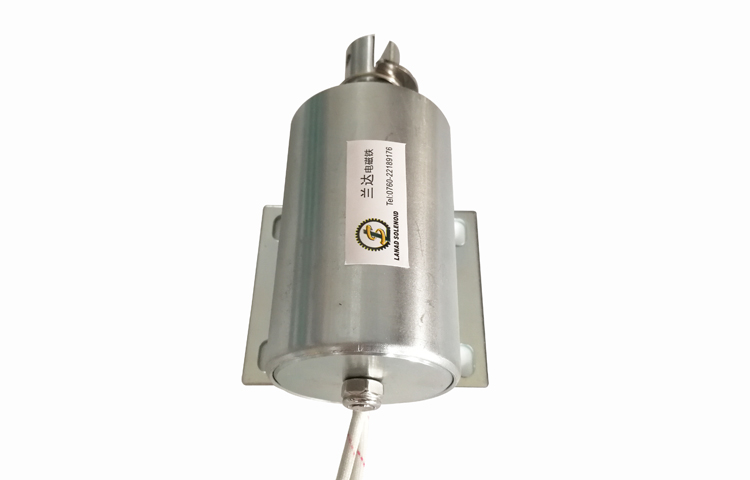

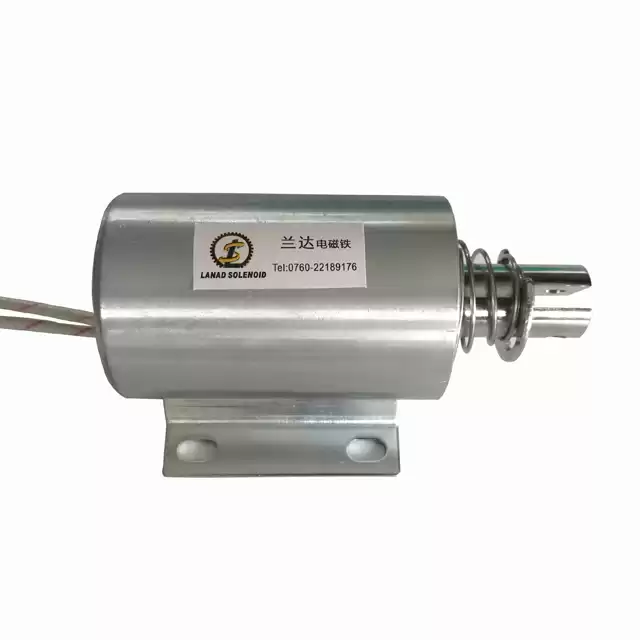

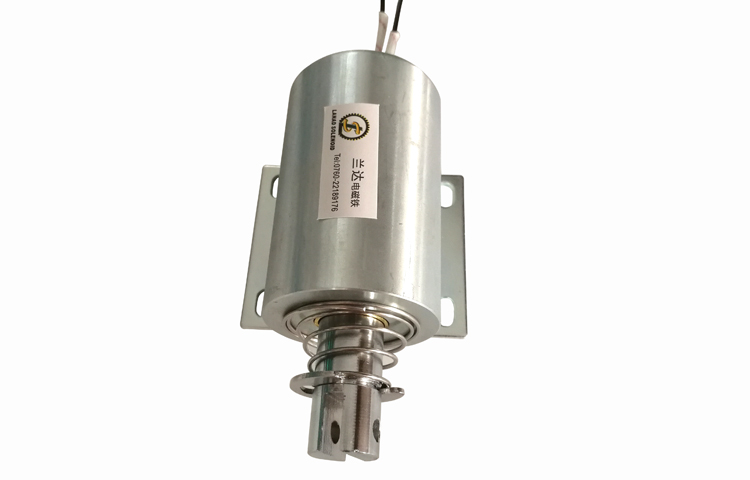

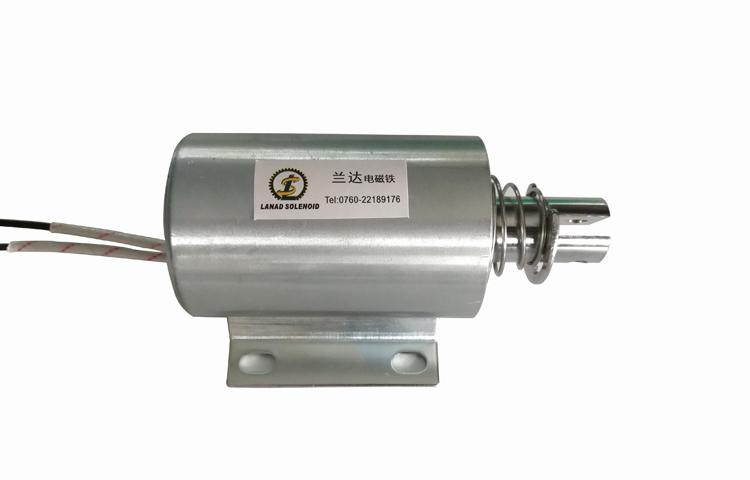

Detailed Images
