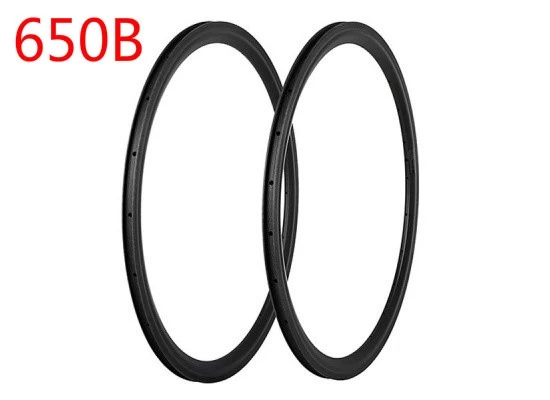

30mm wide 35mm deep 650B Gravel Rims (SC-30GD35AB)

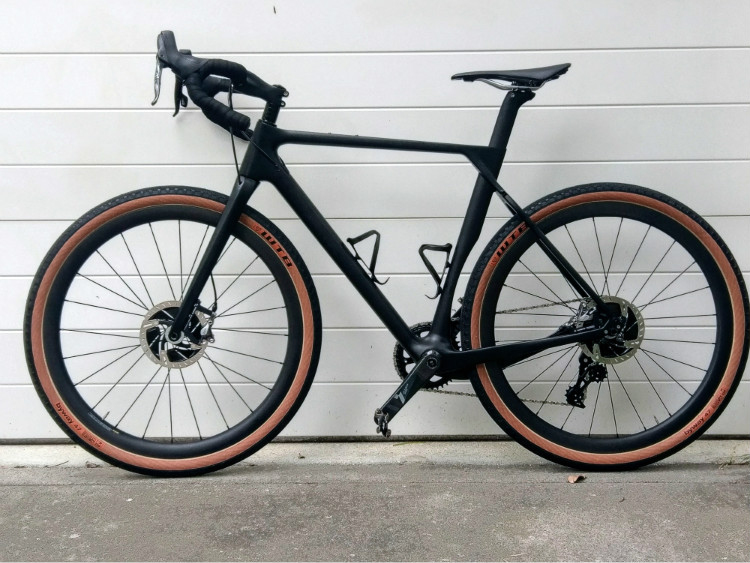

Using a 650b X 47mm tire you have the same outside tire diameter as a 700c road tire, so for your gravel bike you can run the 650b gravel tires for off road riding, and swap to 700c road wheels for road group rides and nothing changes with the geometry or gear ration on the bike.


Specification                                                    Highlights

Material: Toray T700                                                      30mm external / 24mm internal to fit wider tires

Size: Gravel 650B Hookless                                           2.8mm offset helps to even out the spoke tension for a more balanced wheels

Type: Without brake surface for disc brake                    Tubeless / Hookless design to provide the best impact resistance

Outer Width: 30mm                                                        With a nice aero profile and rim shape designed to help crosswind stability

Inner Width: 24mm

Depth: 35mm

Offset: 2.8mm

Weave: UD / 3K / 12K

Finish: Matt / Glossy

Spoke count: 16-32H

Nipple hole: External / Internal

Weight: 390g+/-15g

Rider weight limit: 120KG

Max spoke tension: 140KGF

Max tire pressure: 65PSI

Flatness: ≤0.2mm

Roundness: ≤0.3mm


Cross Section
