30T Lab Manual Hydraulic Heat Press With Two Heating Platens

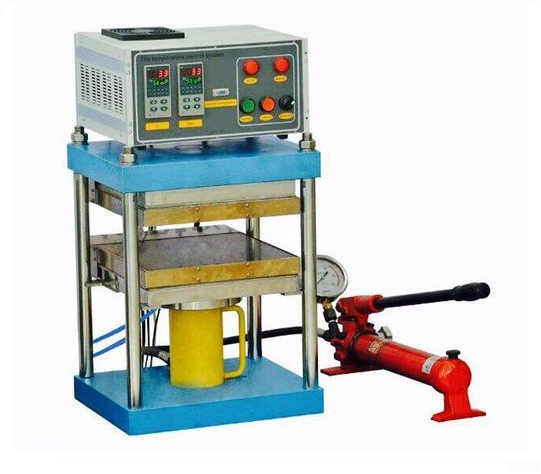

YLJ-HP300 is CE certified and UL-ready 500°C Max. lamination hot press, which consists of a 30T hydraulic press with two heated platens. The temperatures of the heated platens are controlled by two digital temperature controllers separately up to 500°C. The platen ( 300 x 300 mm area) are made of harden Cr12MoV alloy with a flat surface. Water cooling jackets are installed with the heating platen that allows heated plate get faster cooling. One pressure gauge ( 300 kN) is also mounted to monitor the pressure applied on the platen. It is an excellent tool to prepare polymer and ceramic samples.
Specification
|
Hydraulic Press
|
Hydraulic pump and hydrailic cyliner are separated for easy replacement
Max. Force: 30 T
Manual operation
|
|
Max. Working Pressure
|
Gauge Displayed Pressure Value (MPa)
|
5
|
10
|
15
|
20
|
25
|
30
|
35
|
40
|
50
|
|
Actual Force Applied on the Hydraulic Cylinder (Ton)
|
3
|
6
|
9
|
12
|
15
|
18
|
21
|
24
|
30
|
|
Displayed Pressure Value to Actual Applied Force Conversion: 1 MPa = 0.6 Ton
The actual force applied on the Hydraulic Cylinder (Ton) equal to the force applied on your working piece
For calculating the actual pressure (MPa) applied on your working piece, please follow the equations in below:
P = T/(πr^2) x g x 10
P: Pressure (MPa) applied on your working piece
T: Force (Ton) applied on the Hydraulic Cylinder
g: Standard gravity. g ≈ 9.8 m/s2
π: ~3.14
r: Radius (cm) of the working piece
*1 Metric Ton = 1000 kg; 1 MPa ≈ 10 kgf/cm2
|
|
Pressure Gauge
|
Measuring Accuracy is +/-1.25 kN
|
|
Heated Platen Area
|
Platen Area: 300 mm x 300 mm ( Nominal 12"x12" )
Material: Headen Cr12MoV alloy
Surface: Flattening with CNC grinding
|
|
Max. Travel Distance
|
80 mm
Do not raise the bottom cylinder (piston) more than it's maximum traveling distance. (80 mm)
|
|
Max. Working Temperature
|
450°C continuous with water cooling
500°C for less 30 minutes
|
|
Heating Rate
|
≤ 2°C/min
|
|
Water Cooling Jacket
|
Two water cooling jacket are built on the back of top and bottom heating plate separately with 1/4" water pipe connectors. Such a configuration allows you cool the sample as soon as the hot pressing process is completed.
Please consider using one recirculating water chiller to save water and protect the environment (order separately by click picture below)
|
|
Temperature Control
|
Two digital controllers are installed in one box with 30 segments programmable and auto-tune faction
Temperature accuracy ±2°C.
|
|
Power Requirement
|
208 - 240 VAC, 50/60Hz, single phase
3.5 kW max.
20 A circuit breaker is required for 220 V, 5' length power cable included, but no plug
|
|
Compliance
|
CE Certified
|
|
Shipping Weight
|
160 lbs
|
|
Warranty
|
Two years limited warranty with lifetime support
|
|
Application Note
|
The Hot Press Can be located inside of a glove box which temperature controller and pump will be put outside of glove box
|
