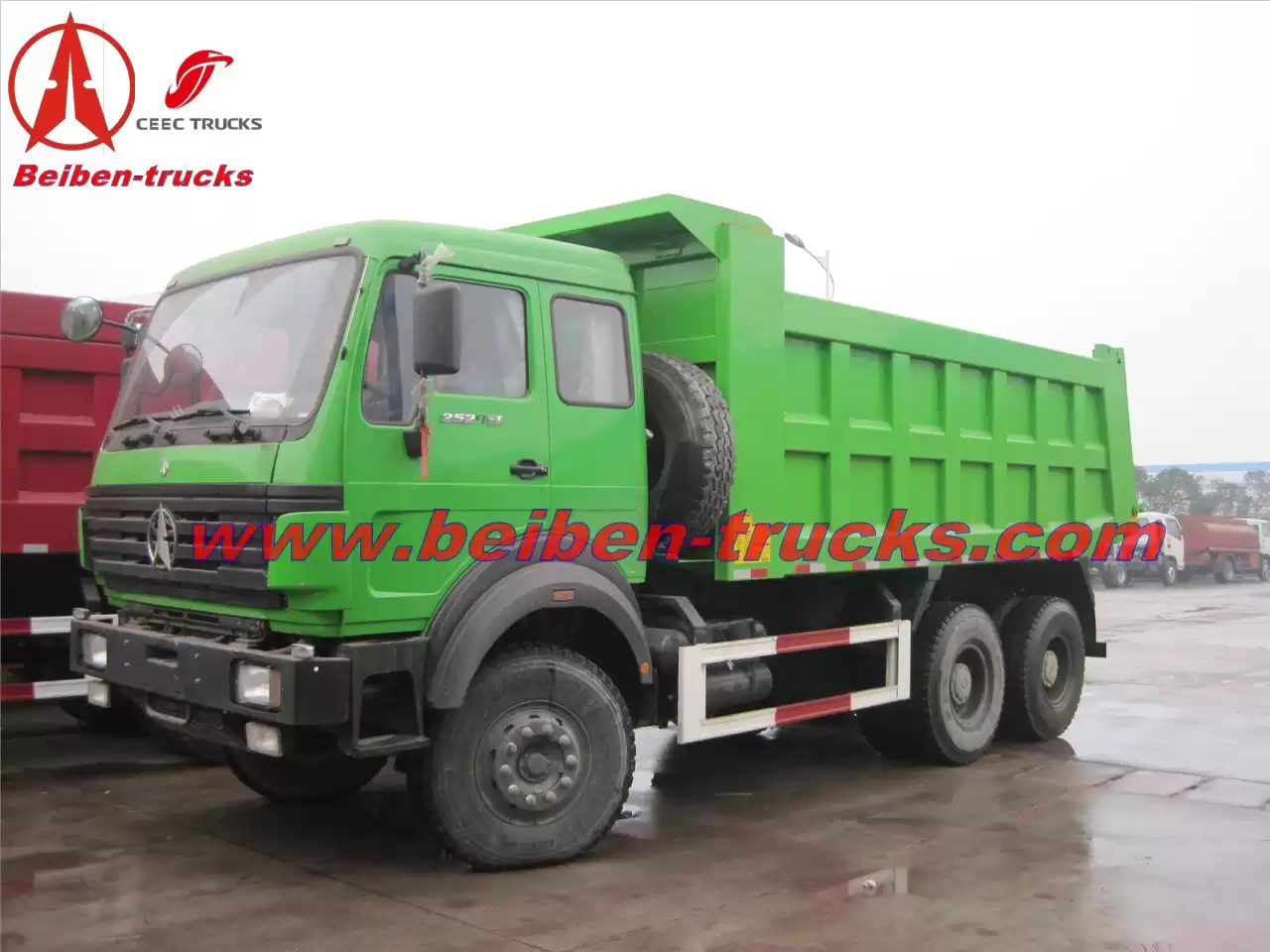

30ton beiben dump truck 6x4 10 wheel North benz tipper

Beiben dump truck 30ton 10 wheel
Weichai engine with world wide service
Fast gear box
radial tires
HYVA lifting system



Beiben 10 wheel dump truck for road construction


Wheel base  (mm)

3450+1450

Curb weight kg

12120

Upper body Dimension(Lx W x H)

5400×2300×1200  sand body

Engine



Model

WD615.50,water-cooled,four strokes,6 cylinders straight in line,turbocharged

Power, max   kw/rpm

206/2200

Max torque(Nm/rpm)

1160/1100-1600

Emission standard

EUROII

Fuel tanker capacity   L

300

Clutch

Model

GFX420, Single dry frictional disc,Hydraulic boosting

Gearbox

Model

ZF 5S-112GP (With 9 forward gears,1 reverse gear; With license from ZF Germany)

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

ZF8098

Frame of vehicle

Fish belly shape, variable width, variable section side beam structure

Front axle (Mercedes Benz  Technology)

Double-shoe pneumatic brake, non-driving steering axle



Middle and Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle



Tyre

Radial 12.00R20

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cab

Short cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure.Can be tipped forwardly; Inner A/C
