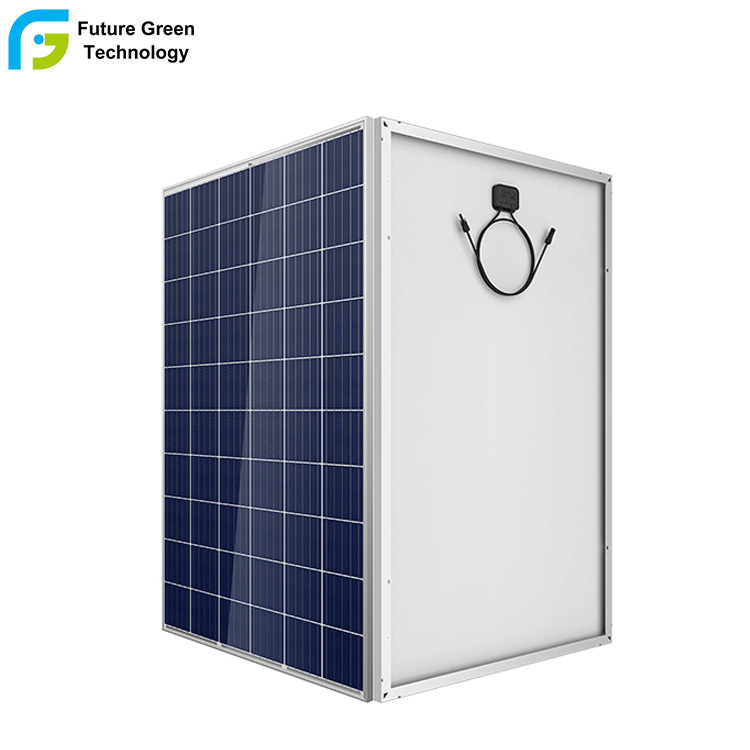

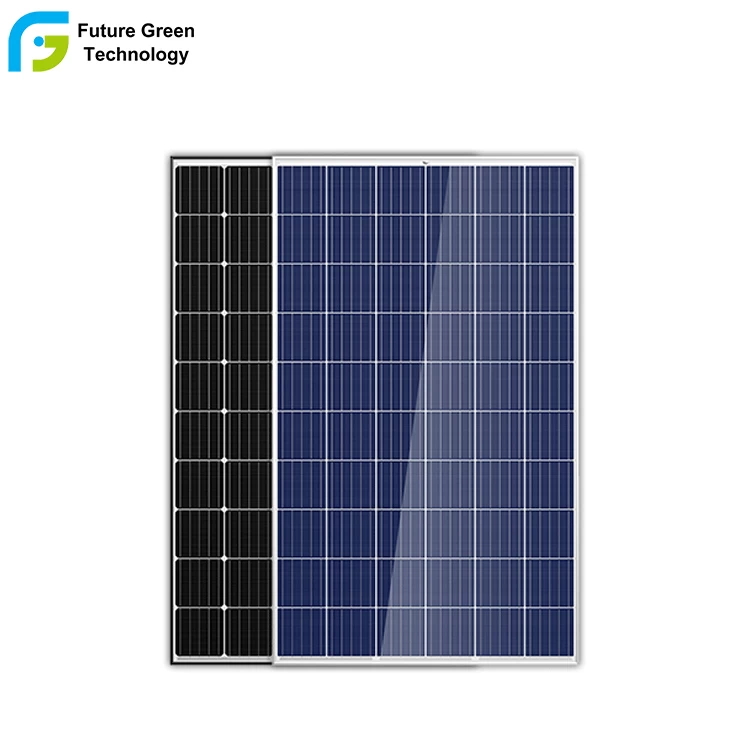

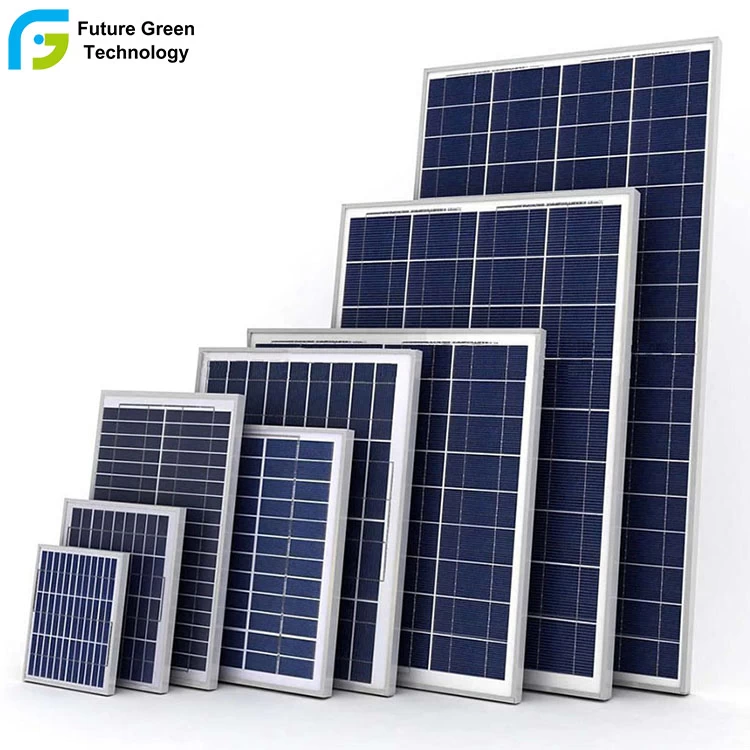

30V260W 270W 280W Poly PV Power Solar Module
Solar Panel Details:
Welcome to our website for details :www.futuregreenbattery.com !!
Future Green is one professional solar energy system one stop solution supplier since 2011.

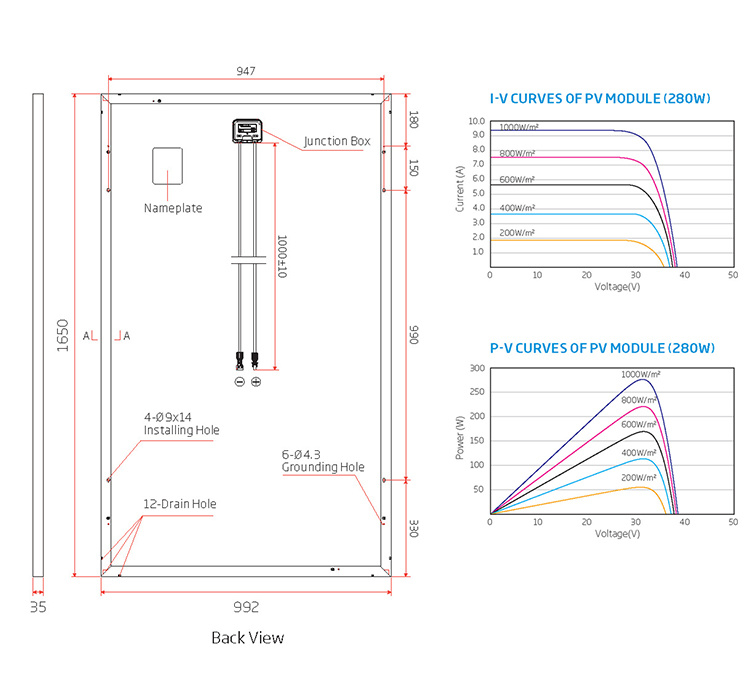

Technical Data Sheet:
|
Peak Power Pm(W)
|
Open Circuit Voltage Voc(V)
|
Short Circuit Current Isc(A)
|
Maximum Power Voltage Vm (V)
|
Maximum Power Current Im(A)
|
Module Size
(MM)
|
Outside Carton size
(MM)
|
CMB per Carton
|
N.W
(kg)
|
G.W
(kg)
|
PCS per Carton
|
|
18V/5W
|
21.24V
|
0.32A
|
17.5V
|
0.29A
|
305*187*17
|
335*217*500
|
0.04
|
0.7
|
1.2
|
20
|
|
18V/10W
|
21.24V
|
0.64A
|
17.5V
|
0.57A
|
330*290*17
|
360*320*270
|
0.03
|
1.2
|
1.8
|
10
|
|
18V/20W
|
21.24V
|
1.28A
|
17.5V
|
1.14A
|
540*350*25
|
570*380*180
|
0.04
|
2.5
|
3.2
|
5
|
|
18V/25W
|
21.24V
|
1.60A
|
17.5V
|
1.43A
|
550*450*25
|
580*480*180
|
0.05
|
3
|
3.8
|
5
|
|
18V/30W
|
21.24V
|
1.92A
|
17.5V
|
1.71A
|
550*450*25
|
580*480*180
|
0.05
|
3
|
3.8
|
5
|
|
18V/35W
|
21.24V
|
2.24A
|
17.5V
|
2.00A
|
550*500*30
|
565*545*210
|
0.06
|
3.5
|
4.5
|
5
|
|
18V/40W
|
21.24V
|
2.56A
|
17.5V
|
2.29A
|
550*500*30
|
565*545*210
|
0.06
|
3.5
|
4.5
|
5
|
|
18V/50W
|
21.24V
|
3.20A
|
17.5V
|
2.86A
|
640*540*30
|
670*570*210
|
0.08
|
4.5
|
5.5
|
5
|
|
18V/60W
|
21.24V
|
3.84A
|
17.5V
|
3.43A
|
805*535*30
|
835*565*210
|
0.1
|
5.2
|
6.5
|
5
|
|
18V/70W
|
21.24V
|
4.48A
|
17.5V
|
4.00A
|
1000*515*30
|
1030*545*210
|
0.12
|
6.5
|
7.8
|
5
|
|
18V/80W
|
21.24V
|
5.12A
|
17.5V
|
4.57A
|
1000*515*30
|
1030*545*210
|
0.12
|
6.5
|
7.8
|
5
|
|
18V/90W
|
21.24V
|
5.76A
|
17.5V
|
5.14A
|
1190*540*30
|
1220*570*210
|
0.15
|
7.5
|
9
|
5
|
|
18V/100W
|
21.24V
|
6.40A
|
17.5V
|
5.71A
|
1190*540*30
|
1220*570*210
|
0.15
|
7.5
|
9
|
5
|
|
18V/110W
|
21.24V
|
7.04A
|
17.5V
|
6.29A
|
1250*670*30
|
1280*700*210
|
0.19
|
10
|
12
|
5
|
|
18V/120W
|
21.24V
|
7.68A
|
17.5V
|
6.86A
|
1250*670*30
|
1280*700*210
|
0.19
|
10
|
12
|
5
|
|
18V/130W
|
21.24V
|
8.18A
|
17.5V
|
7.43A
|
1470*670*35
|
1500*705*95
|
0.1
|
12
|
14
|
2
|
|
18V/140W
|
21.24V
|
8.80A
|
17.5V
|
8.00A
|
1470*670*35
|
1500*705*95
|
0.1
|
12
|
14
|
2
|
|
18V/150W
|
21.24V
|
9.16A
|
17.5V
|
8.33A
|
1470*670*35
|
1500*705*95
|
0.1
|
12
|
14
|
2
|
|
36V/180W
|
42.48V
|
5.67A
|
35V
|
5.15A
|
1580*808*35
|
1610*845*95
|
0.13
|
16
|
18
|
2
|
|
36V/200W
|
42.48V
|
6.28A
|
35V
|
5.71A
|
1580*808*35
|
1610*845*95
|
0.13
|
16
|
18
|
2
|
|
30V/230W
|
35.70V
|
8.44A
|
30V
|
7.67A
|
1640*992*40
|
1670*1030*110
|
0.19
|
18
|
20
|
2
|
|
30V/240W
|
35.70V
|
8.80A
|
30V
|
8.00A
|
1640*992*40
|
1670*1030*110
|
0.19
|
18
|
20
|
2
|
|
30V/250W
|
35.70V
|
9.16A
|
30V
|
8.33A
|
1640*992*40
|
1670*1030*110
|
0.19
|
18
|
20
|
2
|
|
30V/265W
|
35.70V
|
9.71A
|
30V
|
8.83A
|
1640*992*40
|
1670*1030*110
|
0.19
|
18
|
20
|
2
|
|
36V/280W
|
42.48V
|
8.80A
|
35V
|
8.00A
|
1940*992*40
|
1970*1030*110
|
0.22
|
23
|
25
|
2
|
|
36V/300W
|
42.48V
|
9.60A
|
35V
|
8.57A
|
1940*992*40
|
1970*1030*110
|
0.22
|
23
|
25
|
2
|
|
36V/315W
|
42.48V
|
9.90A
|
35V
|
9.00A
|
1940*992*40
|
1970*1030*110
|
0.22
|
23
|
25
|
2
|
|
Case Studies
|
>>View More>>
|
|
|
|
|
|
CRRC 5kw
Project: CRRC Super Capacitor Test
Capacity: 5kW
Type of Module: FGET Multicrystalline 265Wp
Date of Completion November 2017
Owner: CRRC Cooperation Ltd.
Installer: FGET
|
30kw System Replace
Owner: CRRC Cooperation Ltd.
Project: CRRC Solar System replace
Capacity: 30kW
Type of Module: FGET Multicrystalline 265Wp
Date of Completion November 2016
Installer: FGET
|
Burkina Faso 5kw
Project: Burkina Faso 5kw
Capacity: 5kW
Type of Module: FGET Multicrystalline 250Wp
Date of Completion: March 2017
Owner: Yacouba Zongo
|
|
Packing & Delivery
|
>>View More>>
|
|
|
|
|
|
Carton Packing
20, 10 or 4 pieces in one carton for batteries smaller than 12V24AH, one in one carton for larger batteries.
|
Batteries Layer
Load Lead acid batteries 3-5 layers high with cardboard between each layer, and stretch wrap. Make sure to catch the top of the pallet to help anchor it.
|
Fumigation Free Tray
As Lead Acid batteries are very heavy, we all use fumigation free tray to transport them.
|
|
Our Certification
|
|
>>View More>>
|
|
|
|
|
Company Certificate
Commitment to quality, consistency, innovation and service is taking the Company through a steady growth in the competitive market.
|
ISO Certificate
SGS ISO9001 quality management system certificate, ISO14001 environment system certificate
|
MSDS & Transport
Our batteries have UL and CE approvals. MSDS and Report for Safe Transport of Goods.
|
Our Services:
Samples and OEM, Warranty and After-Sale Service:
Sample can be provided for quality testing
-
OEM Welcomed
-
Warranty:5 years for solar panel, 2 years for controller/inverter/battery.
-
After-Sale Service: 24 Hour-Hot Line for Consultancy and Technical Support
