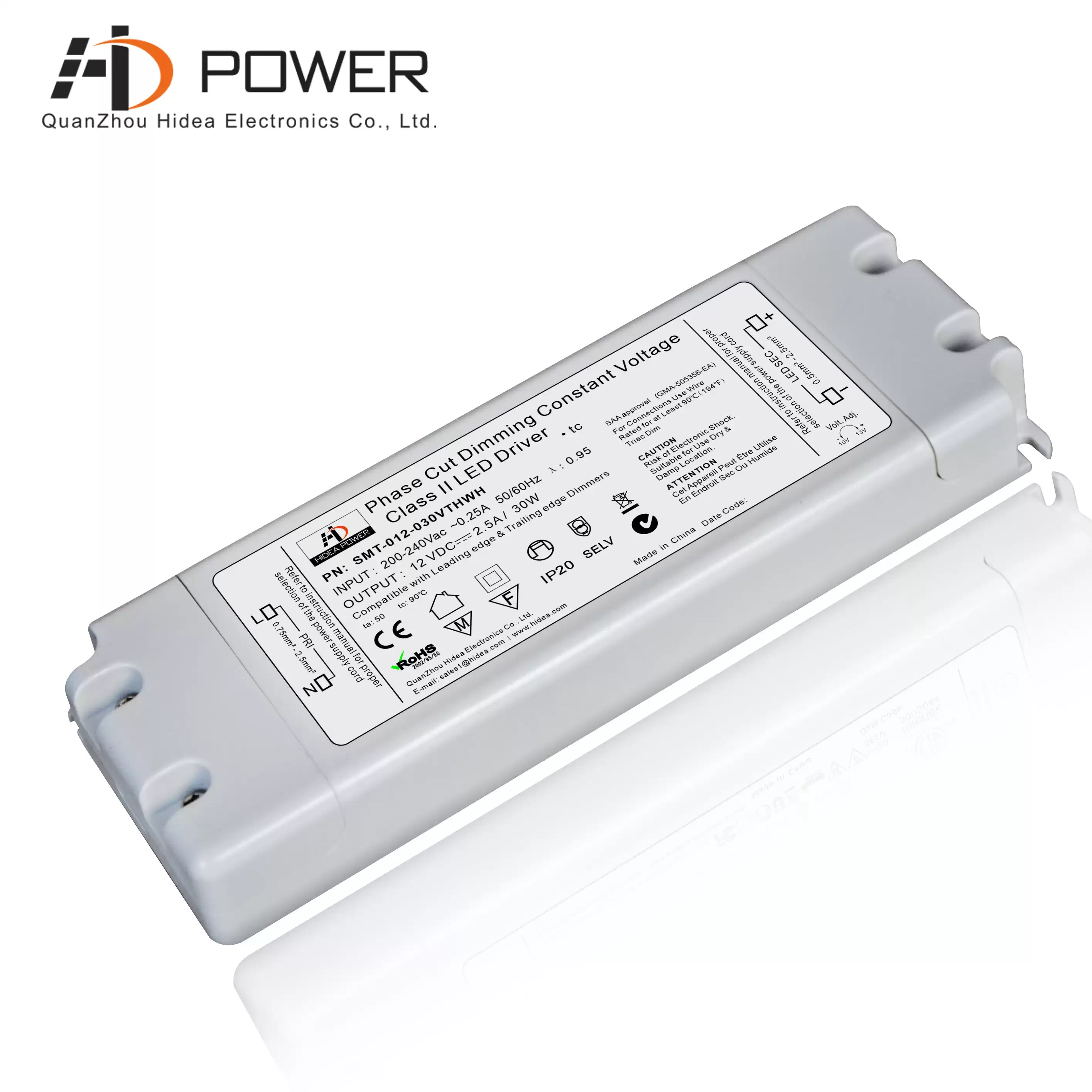

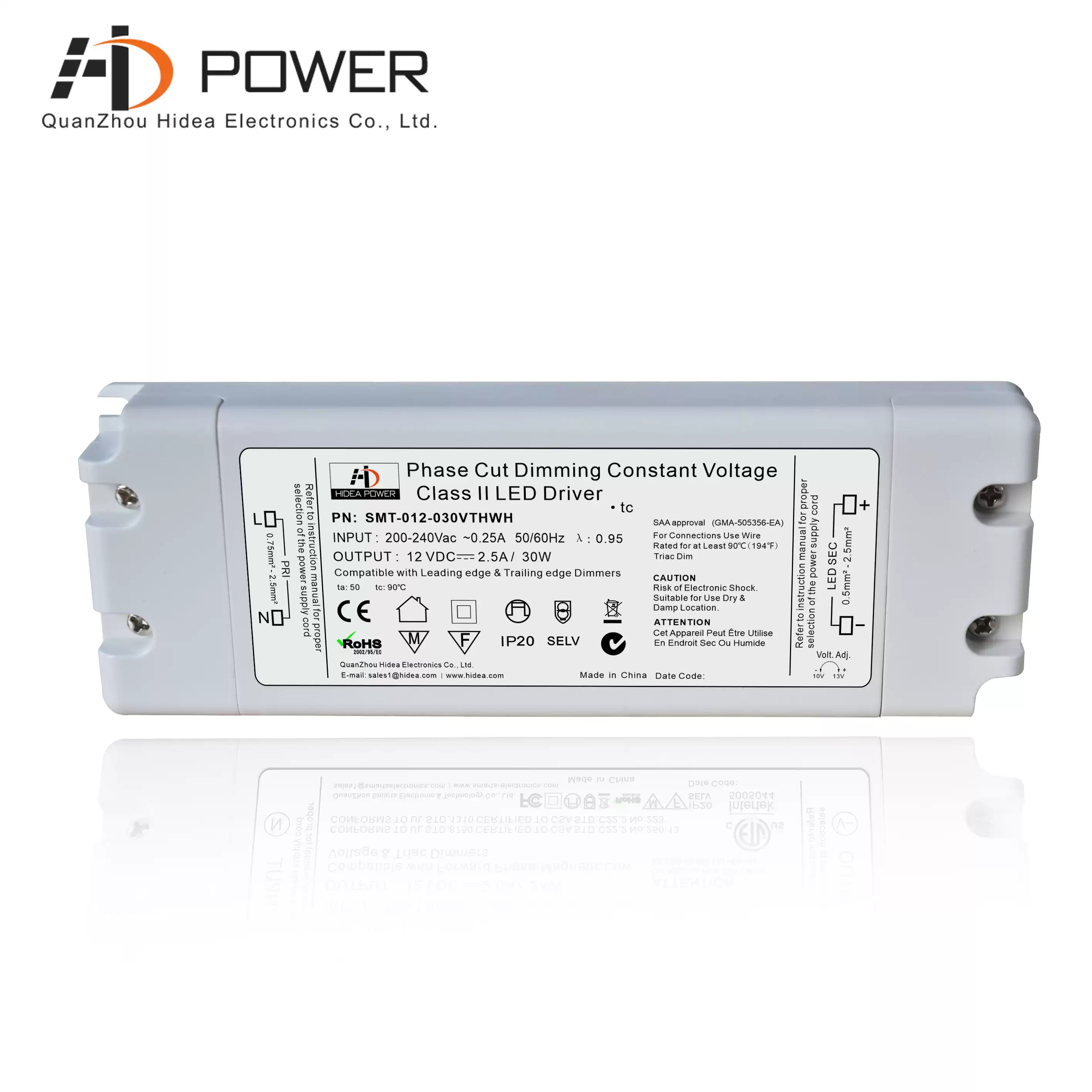

30W 12v/24v constant voltage triac dimmable LED driver transformer
240VAC traic dimmable 30W LED driver has passed SAA and CE certification, which is in line with European and Australian lighting rules. Can be well compatible with the lamps to achieve the flashless smoothing light
Specification
|
model
|
SMT-012-030VTHWH
|
SMT-024-030VTHWH
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated current
|
2.5A
|
1.25A
|
|
Rated power
|
30W
|
|
Input
|
Voltage Range
|
200-240VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor
|
PF≧0.97/200VAC PF≧0.97/230VAC PF≧0.97/240VAC(Full loading)
|
|
Full Load Efficiency(Typ.)
|
79%
|
79%
|
|
AC Current (Max.)
|
0.22A
|
0.22A
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≦120% shut down o/p voltage, re-power on to recover
|
|
Over Current
|
≦ 1.2 *Iout
|
|
Over Temperature
|
100℃± 10℃ shut down o/p voltage ,re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40-+70℃
|
|
Working Humidity
|
20-90%RH, non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10-95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0-50℃)
|
|
Vibration
|
10-500Hz,2G 10min./1 cycle,period for 72min,each along X,Y,Z axes.
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
EN55015,EN61000-3-2,3 (≧60%loading)
|
|
Others
|
Net.Weight
|
0.21KG
|
|
Size
|
155*54*20mm (L*W*H)
|
|
packing
|
160*60*23mm for inner box ; 350*240*130mm for carton 40PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃ of ambient temperature.
|
|
2. Tolerance: includes set us tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again
|
|
4. Loading range from 10% to 100%
|

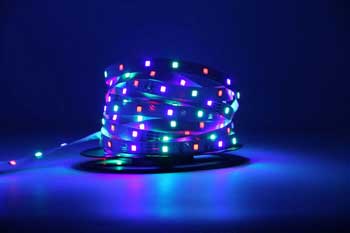

Compatible Light Type
The size is only 155*54*20mm plastic shell triac dimmable 30W LED driver 12v, which can be removed at both ends. The installation is convenient to be exposed to the outer wire. It is safe and reliable. It has 7 years of warranty.
Related Products
|

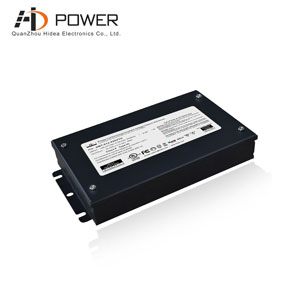

277Vac 30W triac dimmable led driver integrates the power supply with the wiring box, and the installation is convenient and fast
