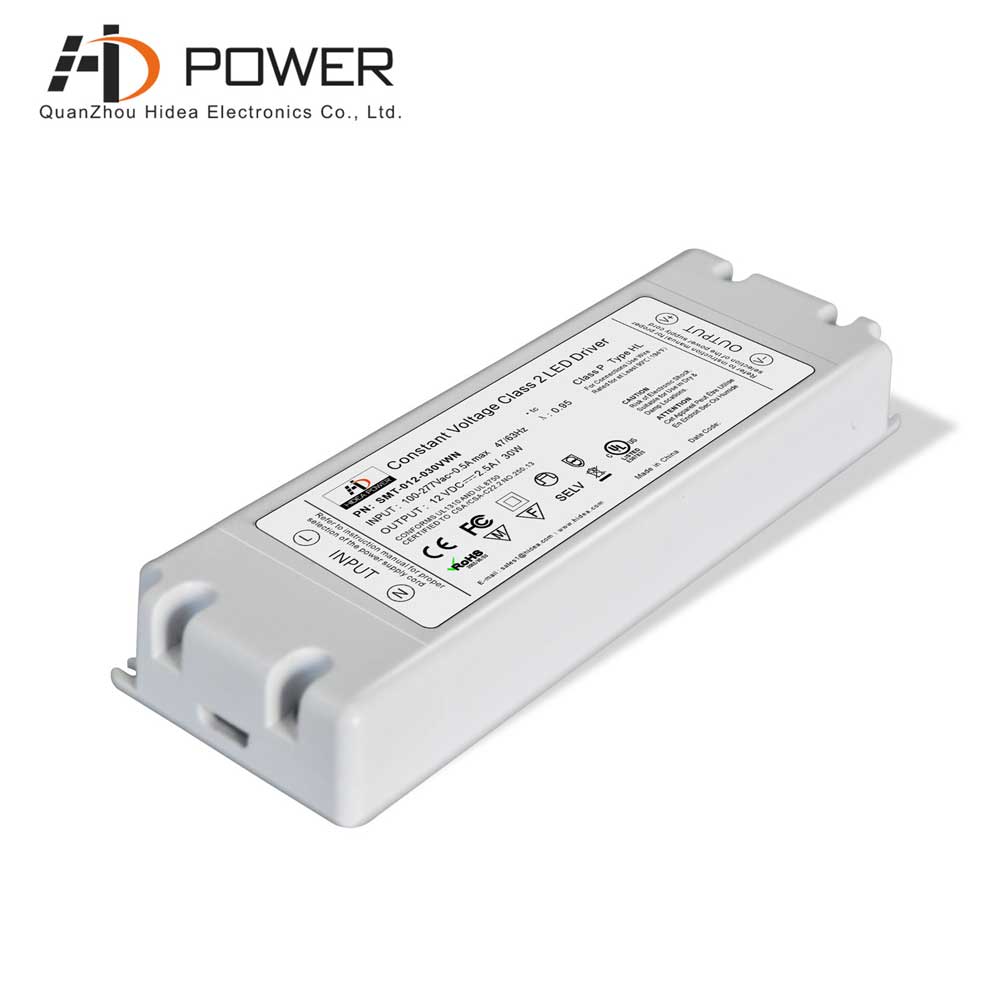

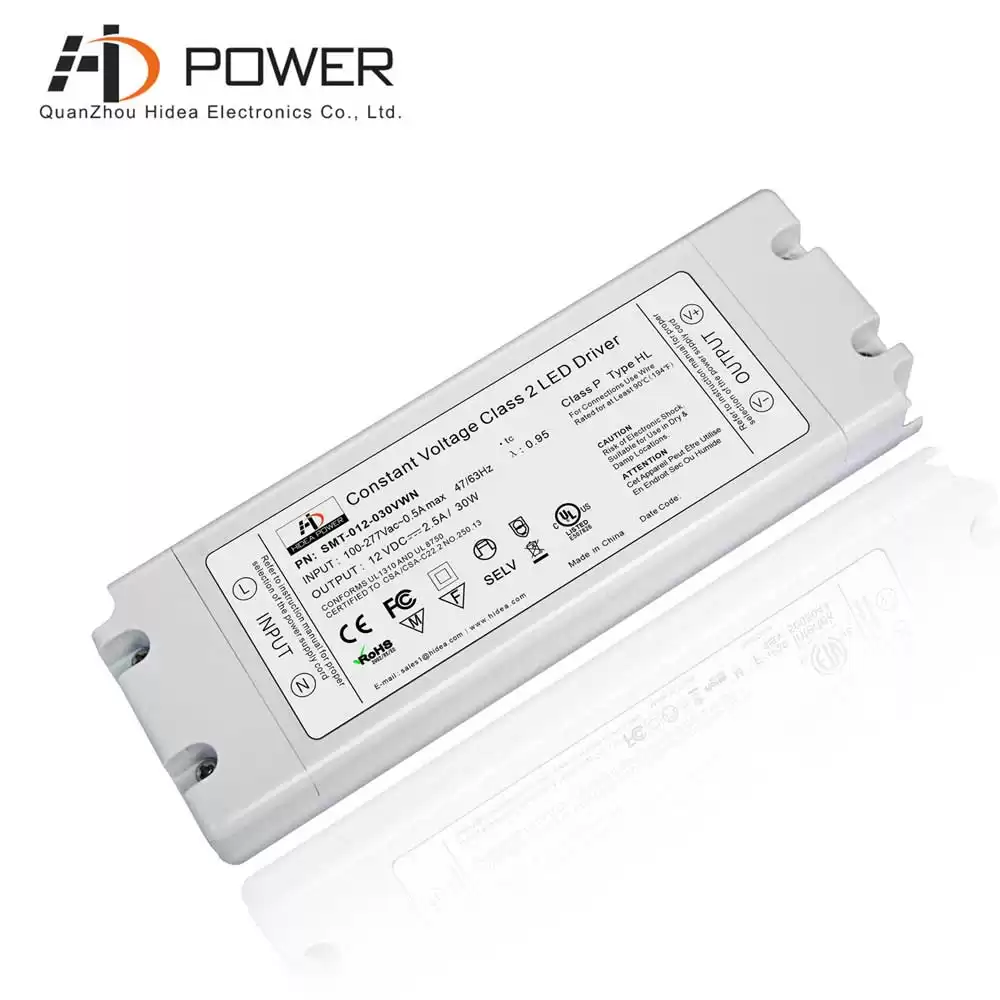

30w 12v led drivers plastic case with connection terminals

Hidea, led light driver suppliers, produce UL/cUL-listed, class 2 12v 30w non-dimming constant voltage led driver, compact size with connection terminals for Livingart Kitchens cabinets lights.


  • Size155*54*20 MM
  • Shape & SizeStandard Size
  • Output Voltage12/24Vdc
  • Output Power(Watt)30W
  • Input Voltage100-277Vac
  • Working ModeConstnat Voltage LED Driver
  • Dimming ModeNon-dimming
  • Weight200g
  • CertificationUL/CUL
  • Warranty7 Years

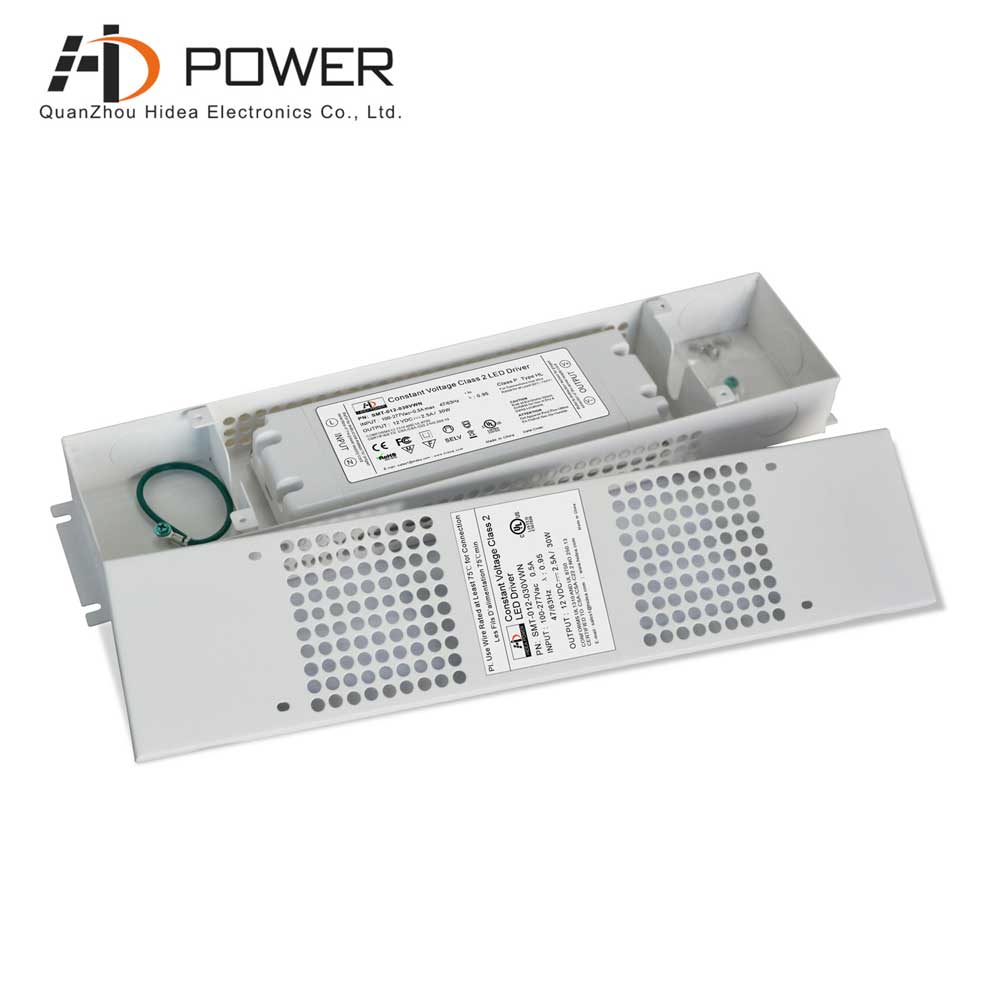

Converts 110VAC to 12VDC 30w led transformer, screw terminal connection for easy installtation to electrical code, UL lsited and 7 years warranty, become a good choice for Emcod LED mirror lights.

  Specification

model SMT-012-030VWN SMT-024-030VWN
Output DC Voltage 12V 24V
Adj. Voltage Range 10-13V 21.5-25.5V
Rated Current 2.5A 1.25A
Rated Power 30W
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Load Regulation ±1%
Input Voltage Range 100-277VAC
Frequency Range 47-63Hz
Power Factor(Typ.)@ full load 0.99@120VAC 0.98@230VAC 0.98@277VAC 0.99@120VAC 0.98@230VAC 0.96@277VAC
THD(Typ.)@ full load <15%@120VAC  <20%@230VAC  <20%@277VAC
Efficiency(Typ.)@ full load 80%@120VAC 79%@230VAC
81%@ 277VAC
82%@120VAC 82%@230VAC
81%@ 277VAC
AC Current (Max.) 0.5A@100VAC 0.5A@100VAC
Inrush Current  (Typ.) 7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC;  12A,50%480us@277VAC
Leakage current <0.50mA
Protect Short Circuit shut down o/p voltage, re-power on to recover after fault condition is removed
Over Loading ≤120% shut down o/p voltage, re-power on to recover
Over temperature 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment Working TEMP. -40~+60℃ (see below derating curve)
Working Humidity 20~90%RH, non-condensing
Storage TEMP. Humidity -40~+80℃,10~95%RH
TEMP .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC Safety standards UL8750+UL1310
Withstand voltage I/P-O/P:1.88KVAC
Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION FCC Part 15 B
Safety standards UL8750+UL1310
Others Weight About 0.21Kg
Size 155*54*20mm (L*W*H)
packing 40PCS/CTN (L*W*H)
Notes 1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.

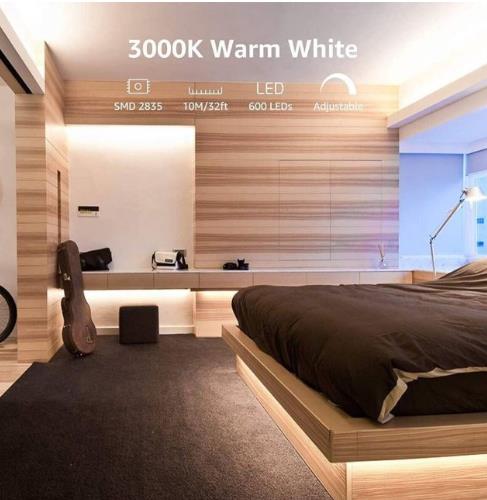

  Compatible Light Type

12 volt or 24 volt DC voltage options and waterproofing levels. Rimikon provides custom strip width, brightness, PCB color, CRI, match specific brand colors, manufacture custom lengths, pre-install custom connectors, can work well with HIdea 30w led transformer.


  Related Products

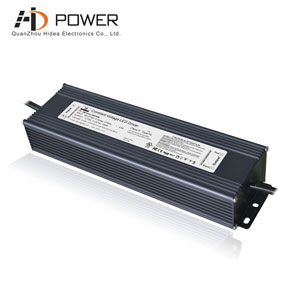

30w led transformer100% waterproof IP67 protect 12v led drivers for outdoor use,.aluminum metal housing, easy for heat dissipation and ensure stability.


Mode:SMT-012-300VWN

Dimming Mode : Non-Dimming

Output Power : 300W

intput voltage:100~277V AC

Size:276*78*47MM   (L*W*H)
