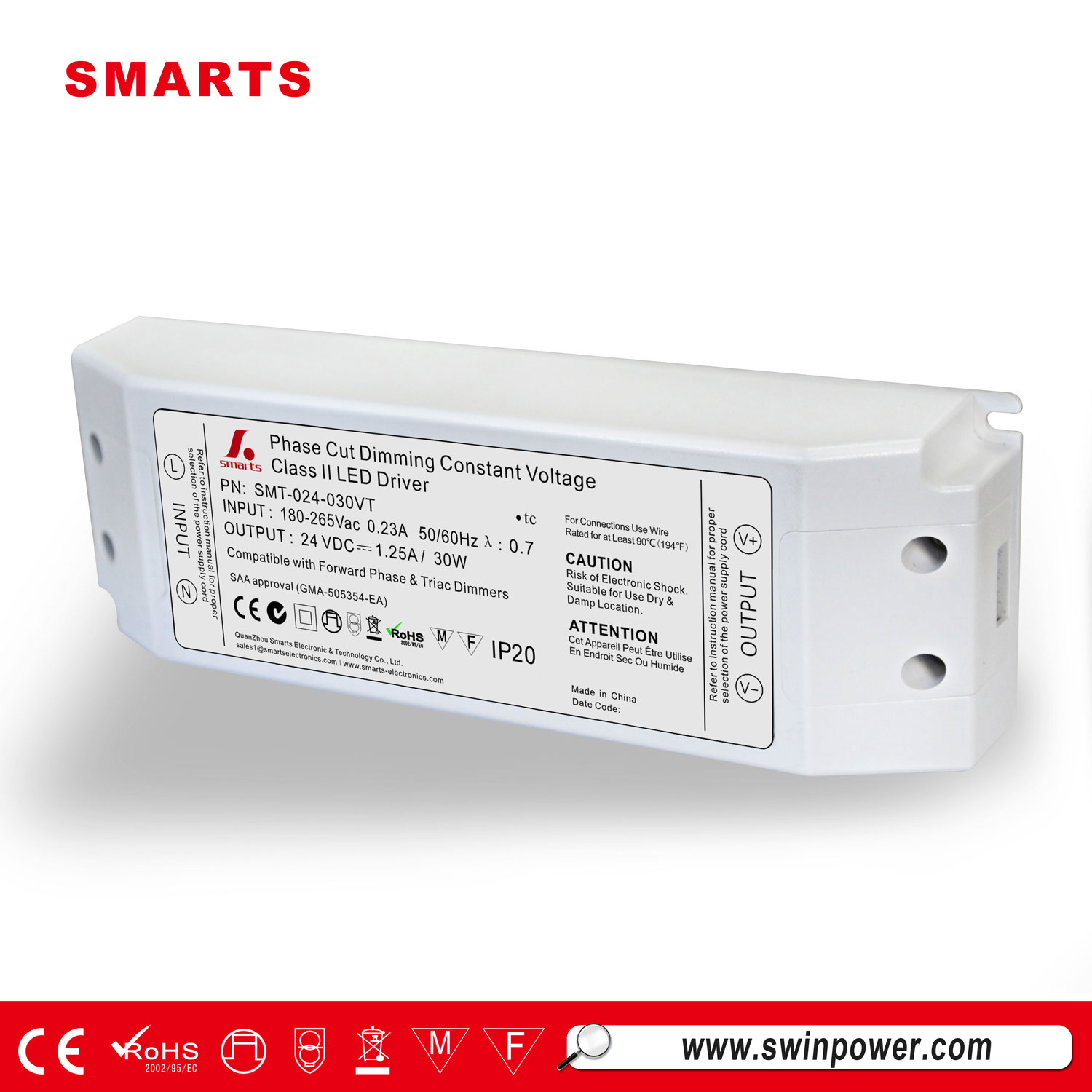

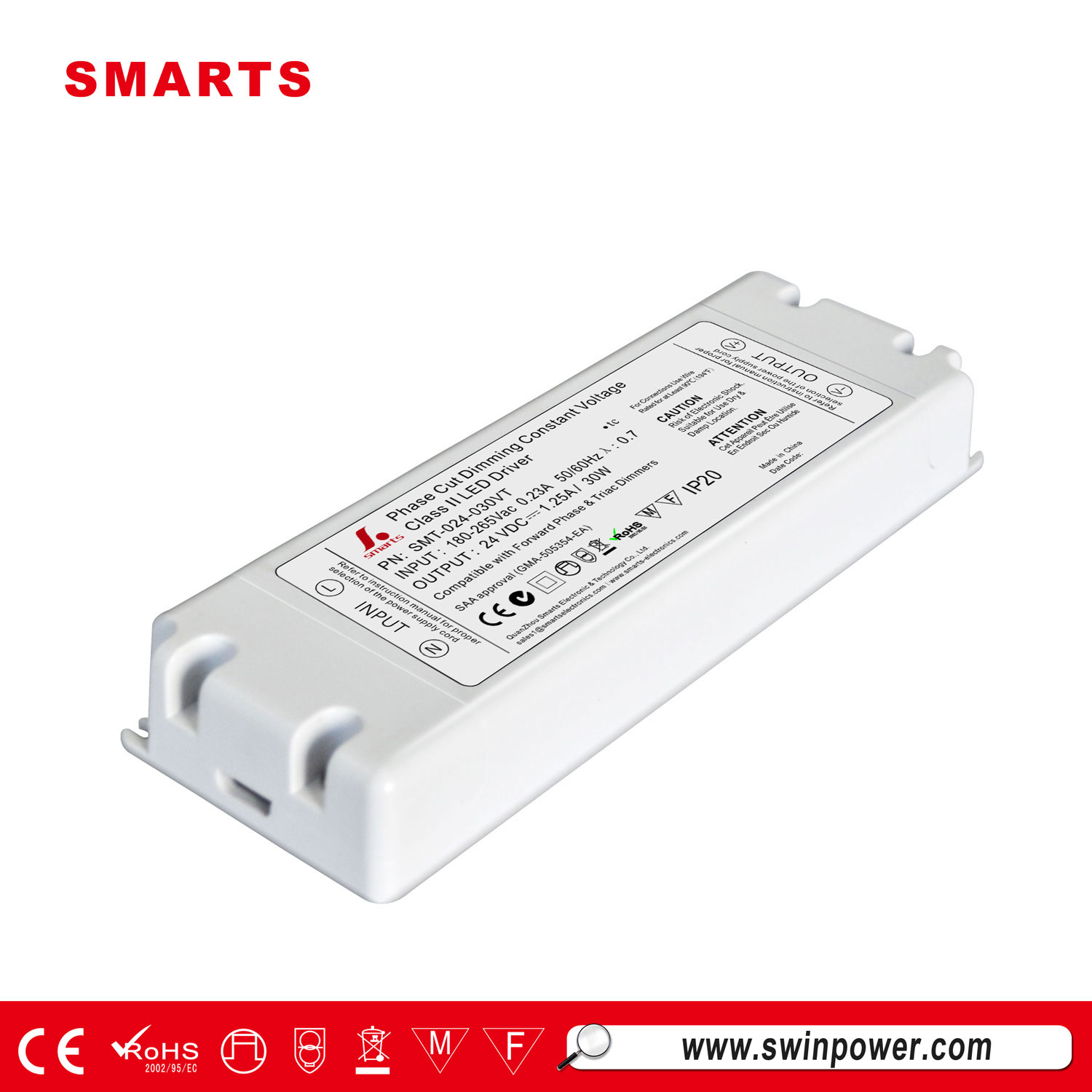

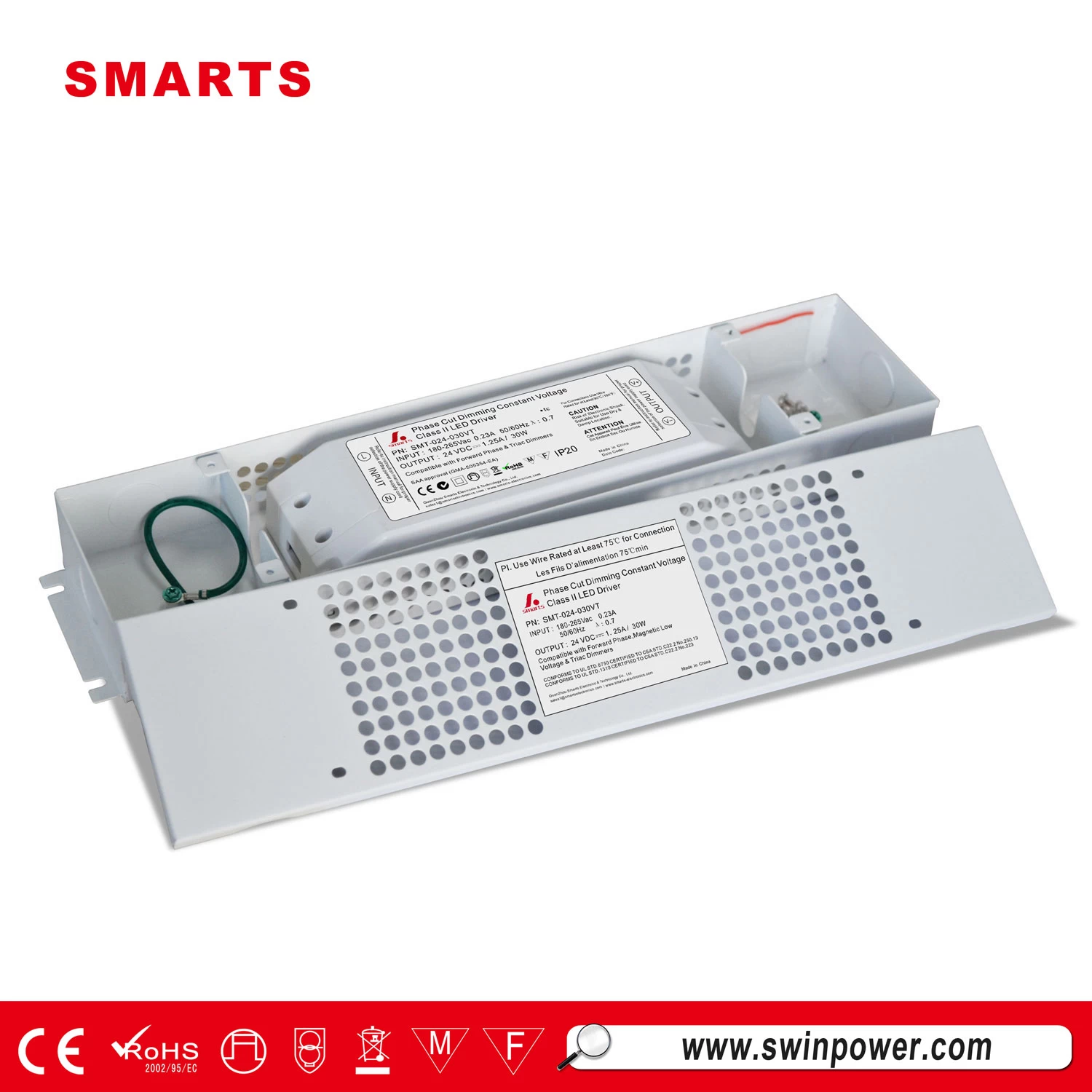

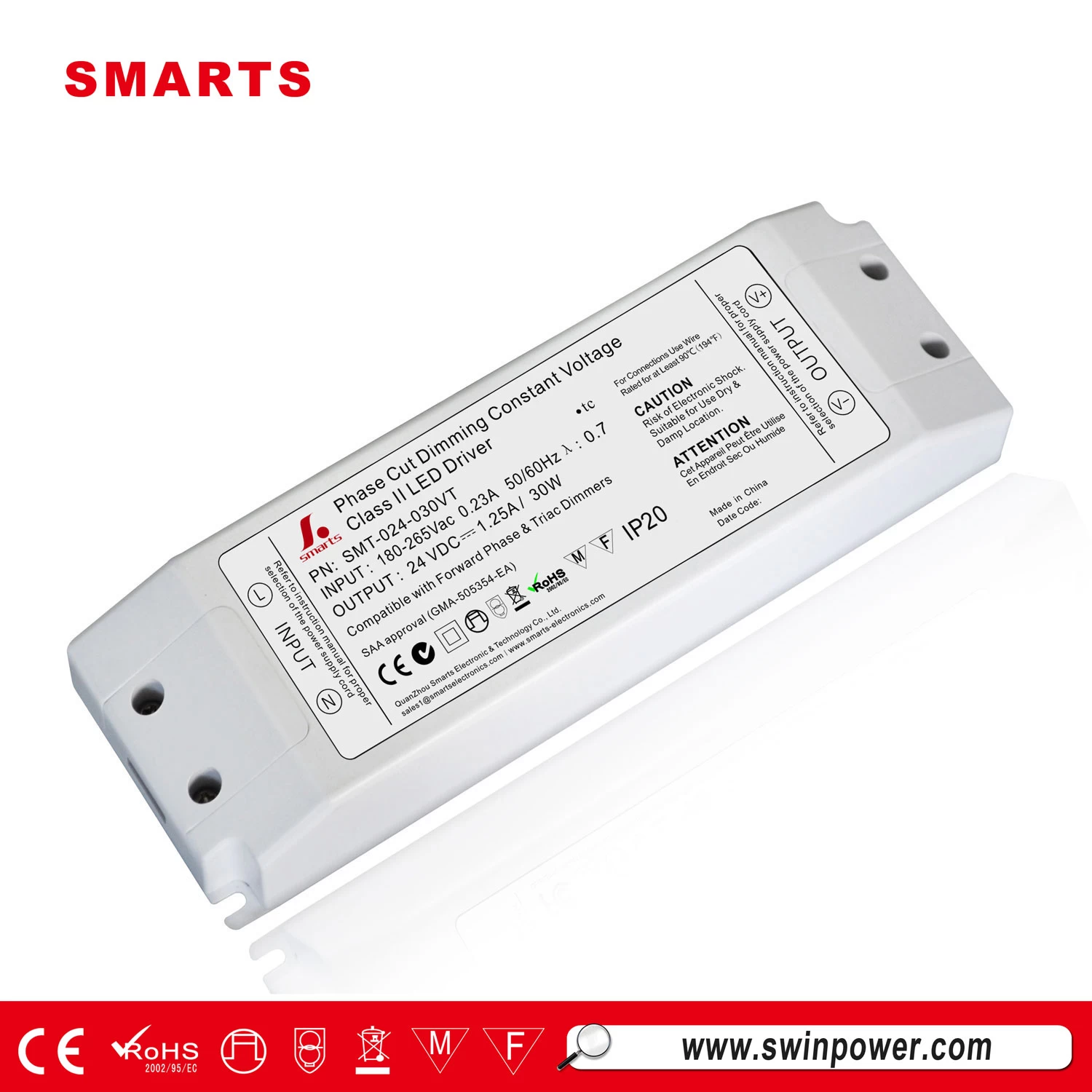

30w 24v dimmable led power supply class 2 led driver for led lighting
This is 24v dimmable led power supply and rated power is 30w with class2. About over Current is 1.4 Times output current. More than 0.7 power factor and 83% efficiency. The led driver applied to led lighting, Vehicle Lights, Controller Panels, etc.
Specification
|
model
|
SMT-012-030VT
|
SMT-024-030VT
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
1.66Amp
|
0.83Amp
|
|
Rated power
|
30W (class 2)
|
30W(class 2)
|
|
Input
|
Voltage Range
|
180～265V AC
|
|
Frequency Range
|
50～60HZ
|
|
Power Factor ( Typ.）
|
PF≧0.92/180V ; PF≧0.93/220V ; PF≧0.935/265V
|
|
Full Load Efficiency（Typ.）
|
>83%
|
>83%
|
|
AC Current（Typ.）
|
0.14A/180VAC 0.12 A/220VAC 0.01A/250VAC
|
|
Leakage current
|
<0.27mA/180VAC; ﹤0.25mA/220VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
Over Current
|
1.4 Times output current
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-2-13, EN62493,
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance toEN55015,EN61000-3-2 (≧50%load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,,11, ,
Alight industry level
|
|
Others
|
Weight
|
0.40Kg
|
|
Size
|
180*60*35mm（L*W*H）
|
|
packing
|
355*215*215mm 20pcs/ctn
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 230VAC input ,
Rated load and 25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Simple Connection Diagram
