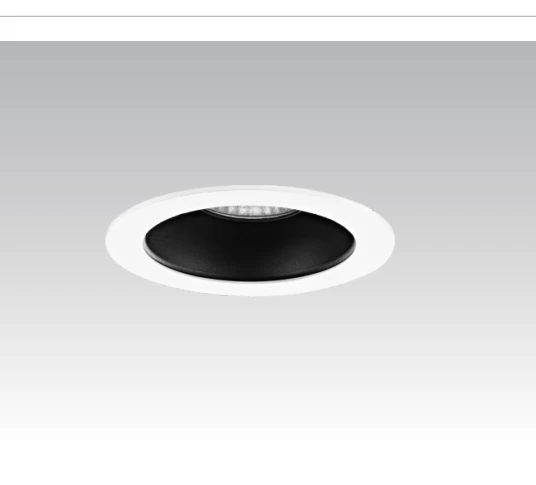

30W 37v tilt recessed COB LED Downlight
● This product consists of aluminum die-cast front and a pure aluminum heat sink completing with powder coating or oil painting finish.
● By using the new generation of CITIZEN COB LED chip.this product generates extreme low heat and offers an excellent lumen performance.
● This product completes with high light transmission PC lens,available with several different beam angle.
- Light sourceCITIZEN COB
- MaterialAluminum
- Product Size
- Lamp Power30W
- Finish
- Lumen
- CRI
- CCT
- Beam angle
- Cutout
- IP Rate20

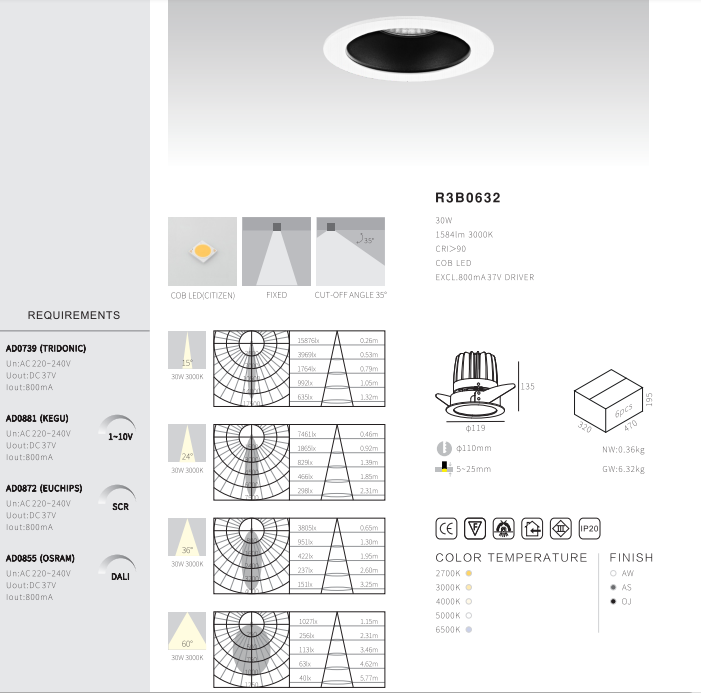

Model number |
R3B0632 |
Installation |
Recessed mounted |
Power |
30W |
Light source |
COB CITIZEN |
Cut off angle |
n/a |
Material |
Aluminum |
Beam Angle |
15°/25° /36°/60° |
Electric Data |
DC 37V |
CCT |
2700K-3000K |
Finish |
Texture:White、Black |
IP |
IP20 |
Certification |
CE、STD、RoHS |
CRI(Ra>) |
>80 |
Cutout shape/size |
n/a |
Class |
Class III |
Requirements |
1-10V、SCR 、DALI |
Application
