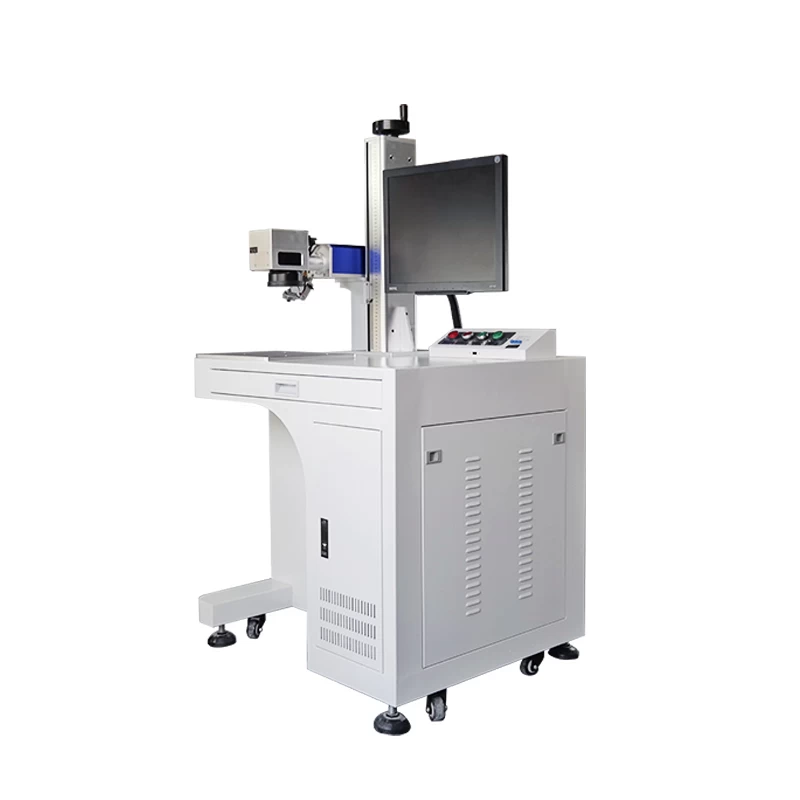

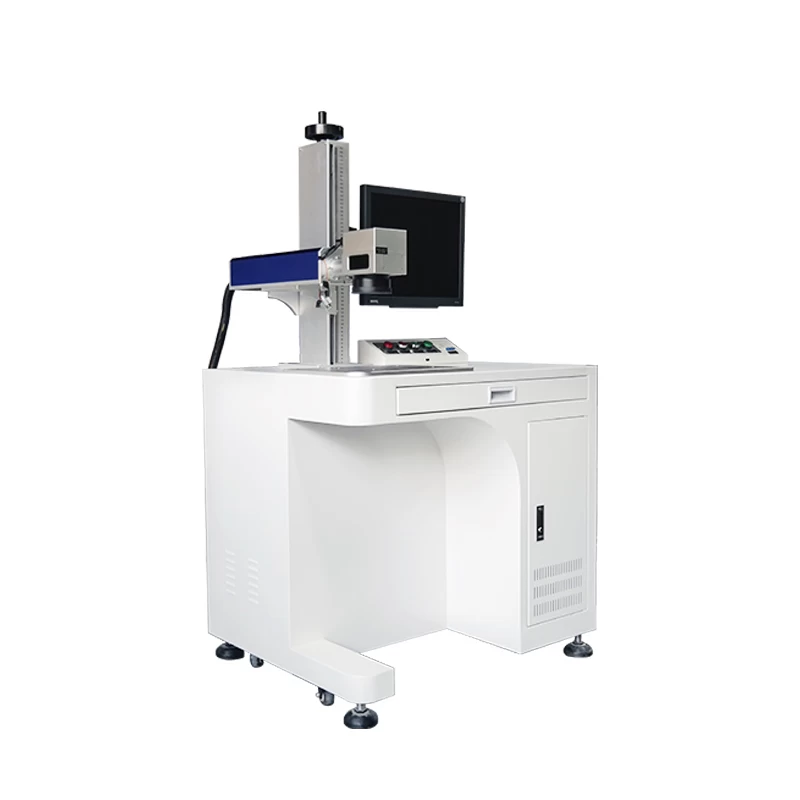

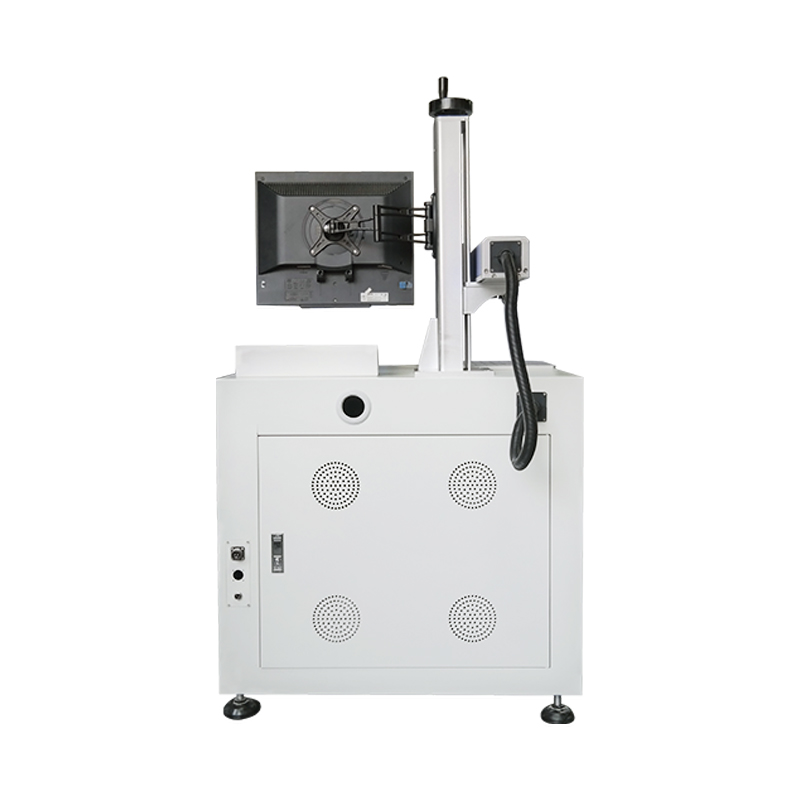

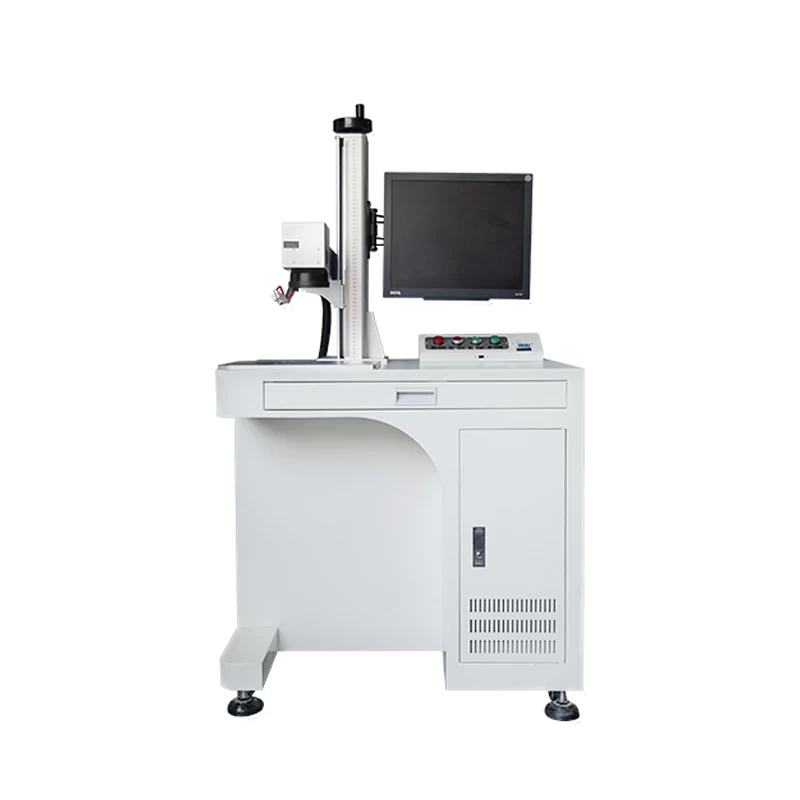

30W Desktop Metal Fiber Laser Marking Machinery
PRODUCT PARAMETER
|
NO.
|
Model
|
Lz-F20W Desktop
|
|
1
|
Power
|
20W / 30W / 50W for option
|
|
2
|
Marking Range
|
110*110mm / 200*200mm / 300*300mm
|
|
3
|
Repetition Frequency
|
20-80KHZ
|
|
4
|
Laser Wavelength
|
1050-1070nm
|
|
5
|
Marking Depth
|
≤1mm
|
|
6
|
Marking Speed
|
7000mm/s
|
|
7
|
Minimum Linewidth
|
0.01mm
|
|
8
|
Minimum Character
|
0.15mm
|
|
9
|
Repeat Accuracy
|
±0.002
|
|
10
|
Power Consumption
|
500W
|
|
11
|
Dimension
|
760*210*570m
|
|
12
|
Total Weight
|
About 45KG
|
|
13
|
Optional Part
|
Rotary Device,Moving Table
|
|
14
|
Cooling System
|
Bulit In Air Cooling
|
|
15
|
Software
|
EZCAD
|
|
16
|
Controller
|
JCZ
|
|
17
|
Life-Span of Fiber Laser Module
|
100000-200000 hours
|

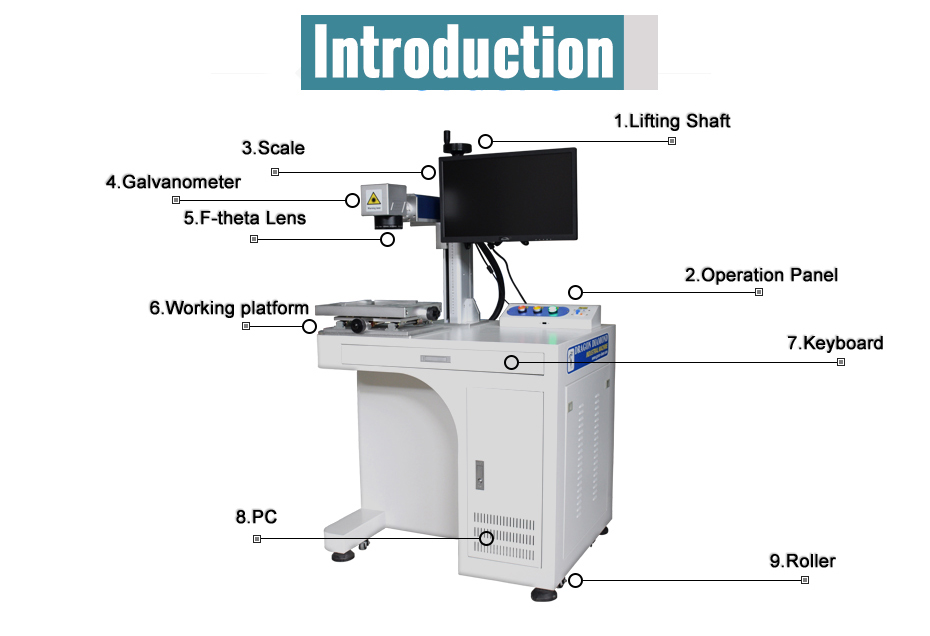

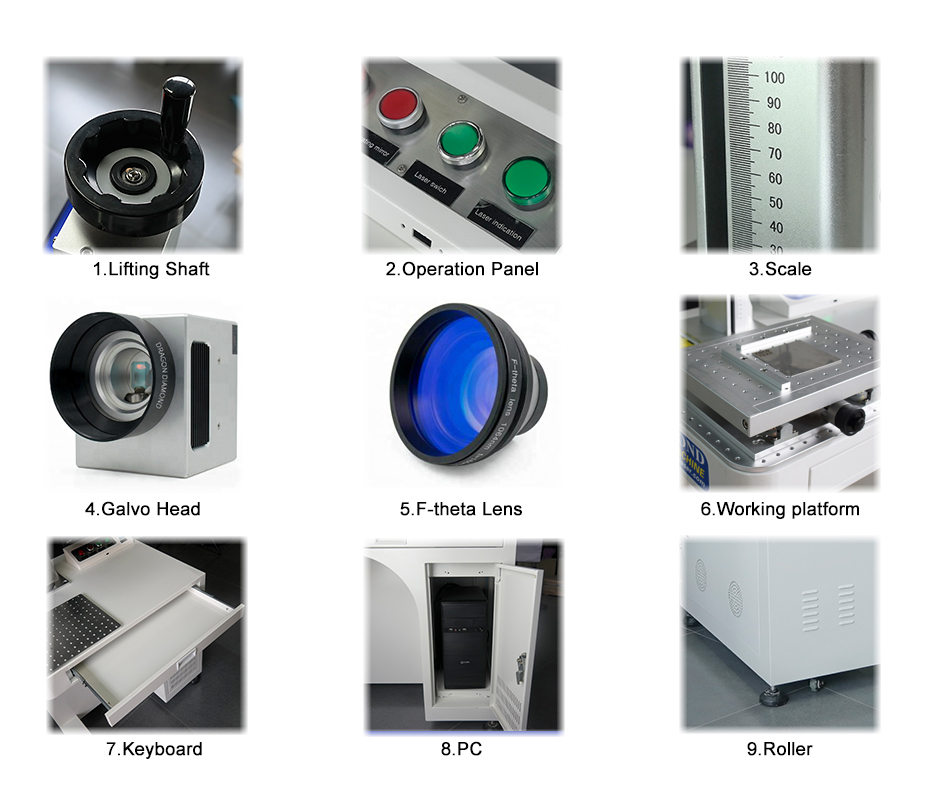

PRODUCT DETAILS
1.High Quality Galvanometer
From the European Union Marker mandatory safety certification.Can expand the field of view,increase the of fiux.Can realease as surface placed modulation disk,in order to splve problem of no where to place the modulator.
2.High Quality Field Lens
In order to further improce the quality of export,use new technology,new material,new craft, in the galvanometer scanning system,graphic precision is good,no distortion,etc.
3.Lifting Shaft
Selecting high quality,high energy,stable and convenient.
4.High Precision Control Panel
The specialized teaching,assign personnel to training,Export standards comply with the eu,the new methods of technocal coordination and standardization,basic requirments of the directive.
5.Manual Fine Tuning Lifting Platform
Can be lifting and shifting from left to right,up and down,easy to adjust the laser focus distance.
6.Precision Scale
Company personnel design tranning,rocker arm free to lift to up and down 50cm.
7.Power Supply
Power supply for golvo head and control card.High efficiency,low working temperature.
8.Laser Marking Card
Mainly used in the laser marking system.the hardware processing data,fast speed,high precision,support high speed flying function.
