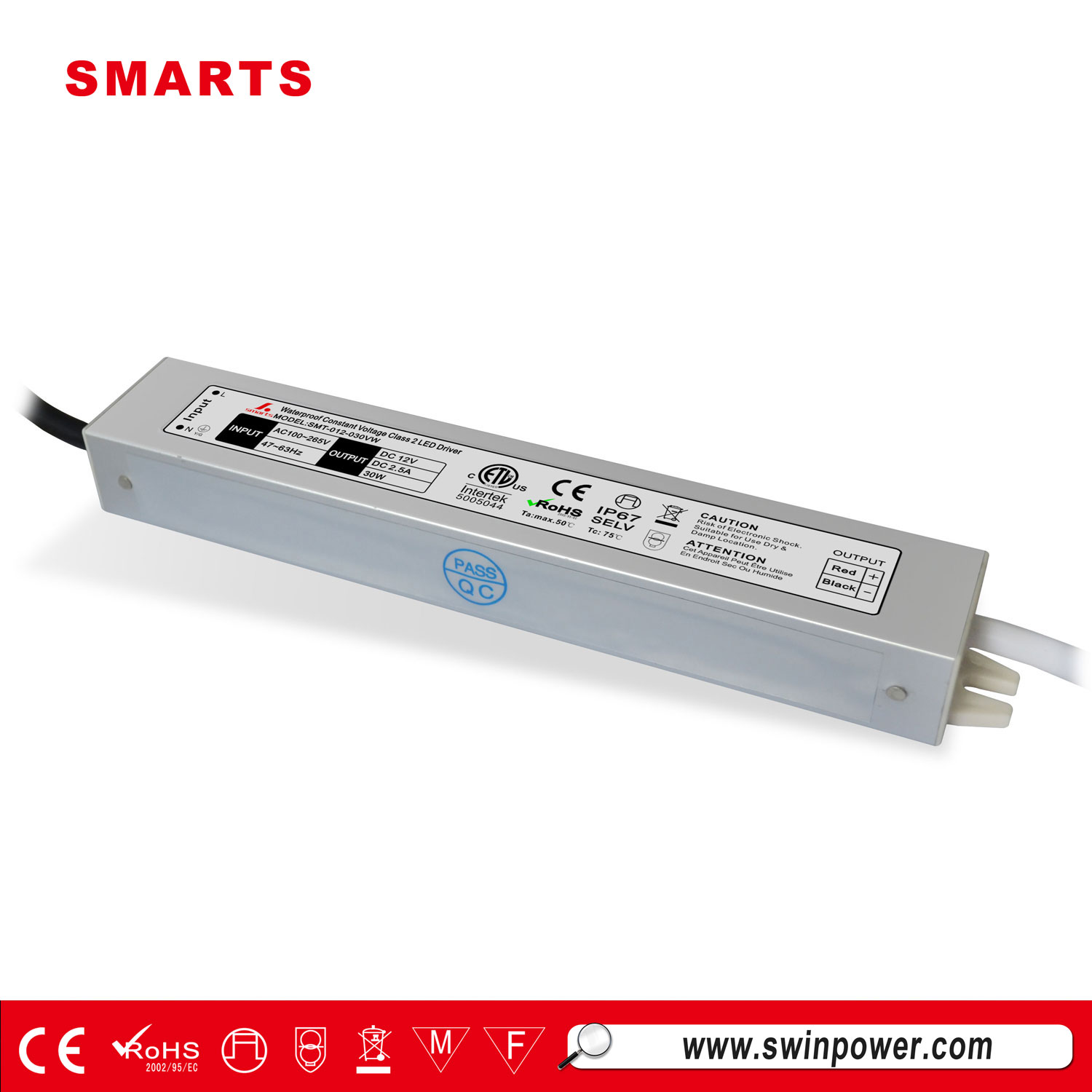

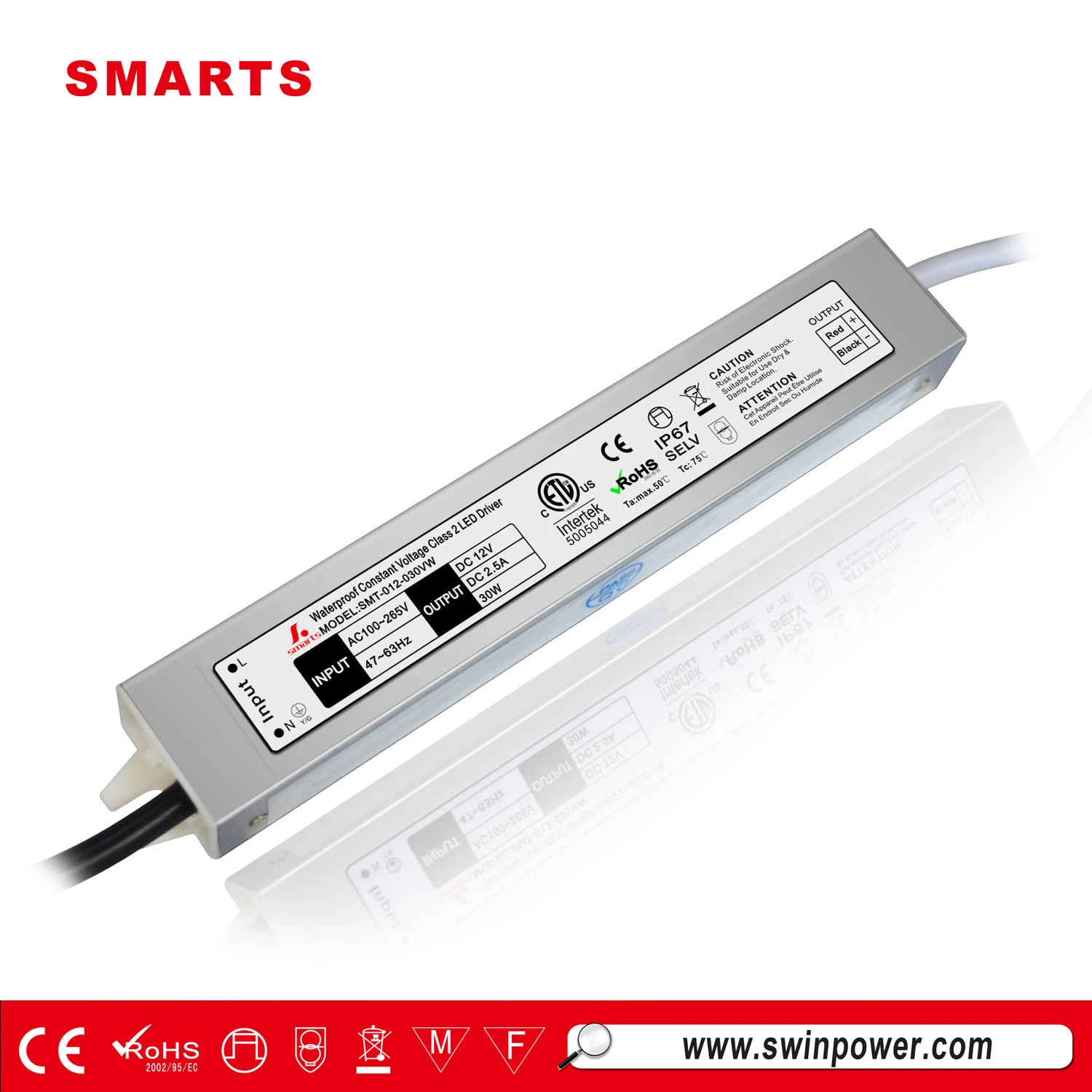

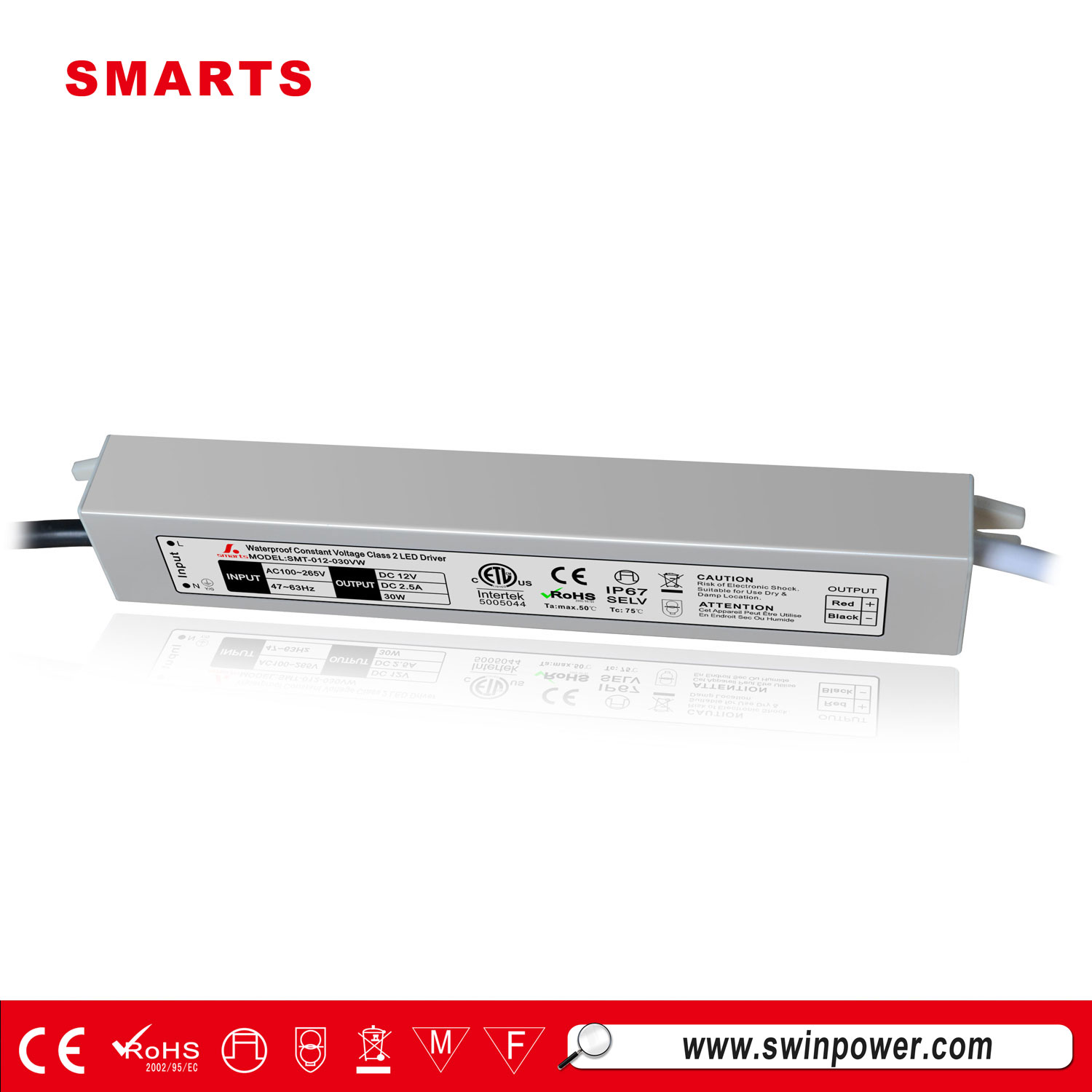

30w outdoor 110v class 2 led DC power supply 12 volt for led lights
SMARTS 30W power supply is being a highly reliable and low cost way to deliver power to your LED strips. The VW series powerful and robust and is most often used for outdoor applications. it can be used with a variety of our single color output, color changing (RGB), color changing + white (RGBW), and Dynamic Tunable Series LED strip lights.
Specification:
|
MODEL
|
SMT-012-030VW
|
SMT-024-030VW
|
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
|
RATED CURRENT
|
5.0A
|
2.5A
|
|
|
CURRENT RANGE
|
0~2.5A
|
0~1.25A
|
|
|
RATED POWER
|
30W
|
30W
|
|
|
RIPPLE&NOISE(max)
|
1.2V
|
1.2V
|
|
|
voltage TOLERANCE
|
12V±5%
|
24V±5%
|
|
|
SETUP RISE TIME
|
80ms/110,220VAC
|
80ms/110,220VAC
|
|
|
HOLD UP TIME(Typ.)
|
60ms/110,220VAC
|
60ms/110,220VAC
|
|
|
INPUT
|
VOLTAGE RANGE
|
100~265Vac
|
100~265Vac
|
|
|
FREQUENCY RANGE
|
50~60Hz
|
50~60Hz
|
|
|
POWER FACTOR(Typ.)
|
|
|
|
|
EFFICIENCY(Typ.)
|
>84%
|
>84%
|
|
|
AC CURRENT(Typ.)
|
0.5A/110V,220VAC
|
0.5A/110V,220VAC
|
|
|
INRUSH CURRENT (Typ.)
|
COLD START 30A/110,220VAC
|
|
PROTECTION
|
Short circuit
|
Protection type:recovers automatically after condition is removed
|
|
Overload
|
overload protected@145-160% above peak rating
|
|
Over temperature
|
Protection type:Shut down o/p voltage,re-power on to removed
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-30~+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20~99% RH non-condensing(Waterproof)
|
|
STORAGE TEMP.,HUMIDITY
|
-40~+80℃,10~99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
ETL, CE Mark(LVD),IP67
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:1.5KVAC IP-GND:1.5KVAC
|
|
EMC Test Standards
|
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
|
|
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
|
|
NOTE
|
1.All parameters NOT specially mentoned are measured at 110VAC, 220VAC input,
rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth
by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|
Dimension:
What do I need to do before installing this 30w power supply?
Remember, an electrician should be consulted before any installations. Line voltage current can be lethal. We recommend always following these steps when working with electricity.
1). Turn OFF the circuit using the circuit-breaker at the main electrical panel. Use a marker or tape to notate, or even lock the circuit breaker switch so that someone else doesn't switch it back on while you are working on the wiring
2). Test the area you will be working with a multimeter or voltage tester to make sure electricity is off. After a test confirms a wires are dead, check the equipment has not just now failed. Test it on a known live source before proceeding to handle the wiring
3). Again, always consult an electrician licensed to do electrical work in your area.
