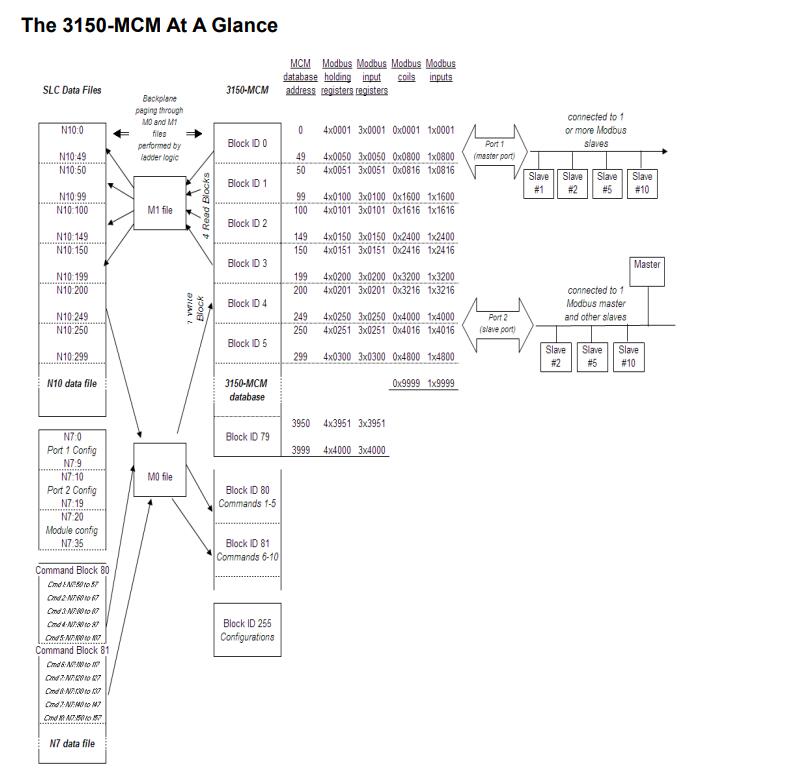

3150-MCM ProSoft for Allen Bradley SLC 500 DH485/RS232C Interface
Contact: Miya
Job Title: Sales Manager
Skype: live:miyazheng520
Email: sales@amikon.cn
Tel: 86-18020776792(Whats App )
QQ :2851195450
Brand Name AB
Product reference 3150-MCM
Modbus Master/Slave Communication Module for the SLC platform
1 Open the sample ladder logic, MCM3EX1M.RSS in RSLogix500. T
he sample
ladder is available on the inRAx product CD, or on the web site
www.prosoft-technology.com
2 Double-click "Controller Properties" and choose the appropriate SLC
processor. Click OK.
3 Do not clear I/O. Click OK.
4 Double-click "I/O Configuration".
Implementation Guide
Integration of the MCM module into a PLC or SLC application is easier if a series
of steps are followed.
In order to assist the first time users of our products in
getting operational quickly, we have come up with this step-by-step
implementation guide.
First Time Users: Although the following steps are to assist you in implementing the module, we
recommend that you attempt to
experiment with the example logic provided on disk with the
module or available off our www.prosoft-technology.
Modbus Master/Slave Communication Module for the SLC platform
1 Open the sample ladder logic, MCM3EX1M.RSS in RSLogix500.
The sample
ladder is available on the inRAx product CD, or on the web site
www.prosoft-technology.com
2 Double-click "Controller Properties" and choose the appropriate SLC
processor.
Click OK.
3 Do not clear I/O. Click OK.
4 Double-click "I/O Configuration".
5 Choose the appropriate rack size.
The sample ladder is configured with a
1747-A4 four-slot rack.
6 The 3150-MCM module is defined as a "1746-BAS-5/02, BASIC module,
M0/M1 capable."
7 Drag this module to the appropriate slot in the rack.
