Bearings R4 Introduction :
Bearing No.: R4 RS
Size : 0.25*0.625*0.196 inch
Material:stainless steel 316
Zinc Plating for race with thickness 0.003~0.005mm
Limited Speed :2200 rpm
|

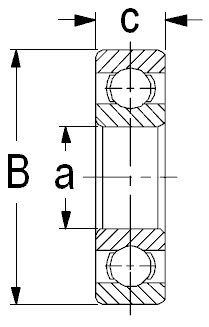

Bearing Number
|
Boundary dimensions(Inches)
|
|
|
a
|
B
|
C
|
|
R4
|
1/4
|
5/8
|
.1960
|

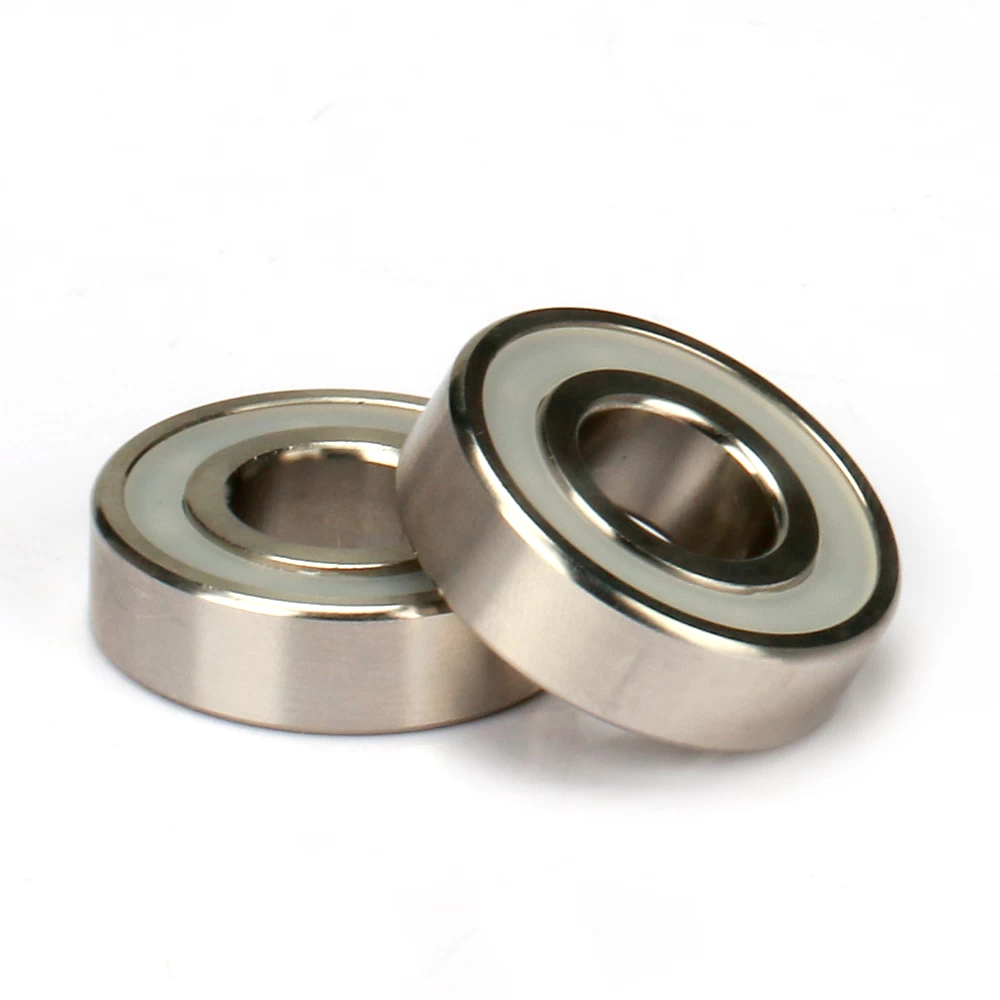

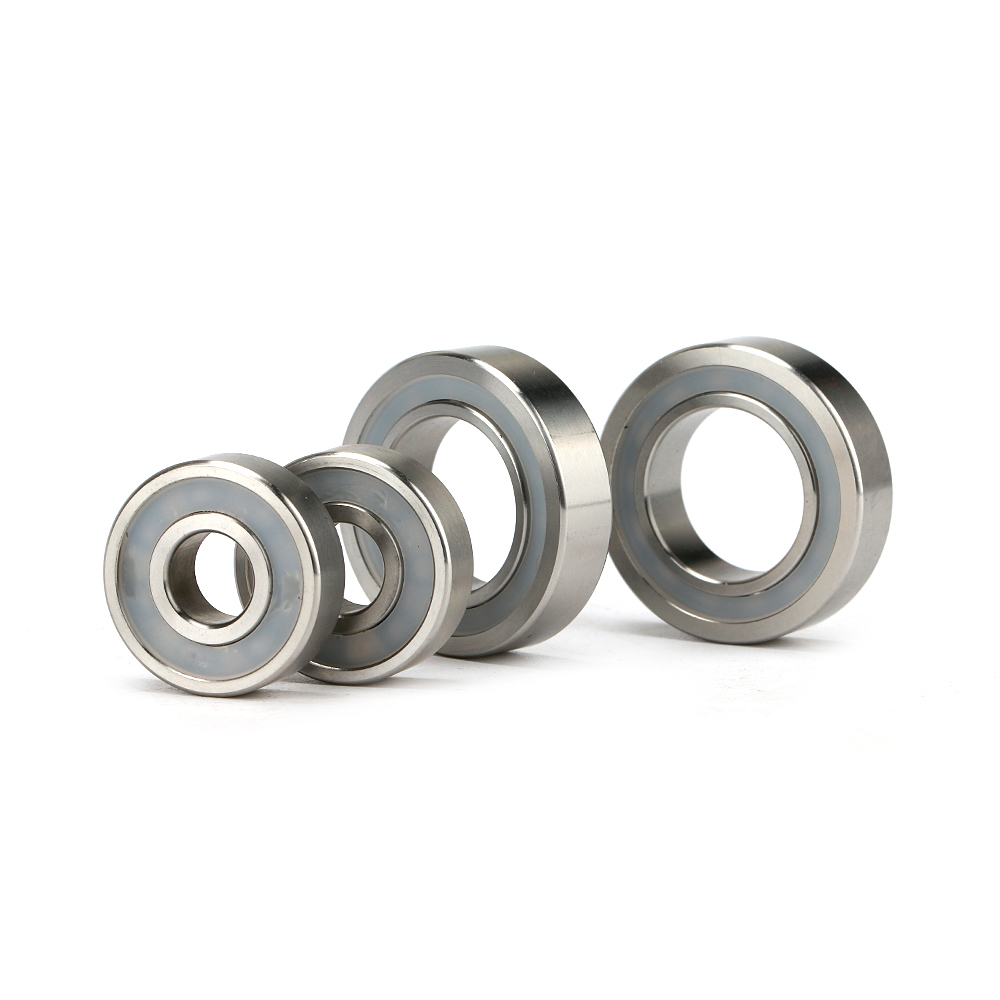

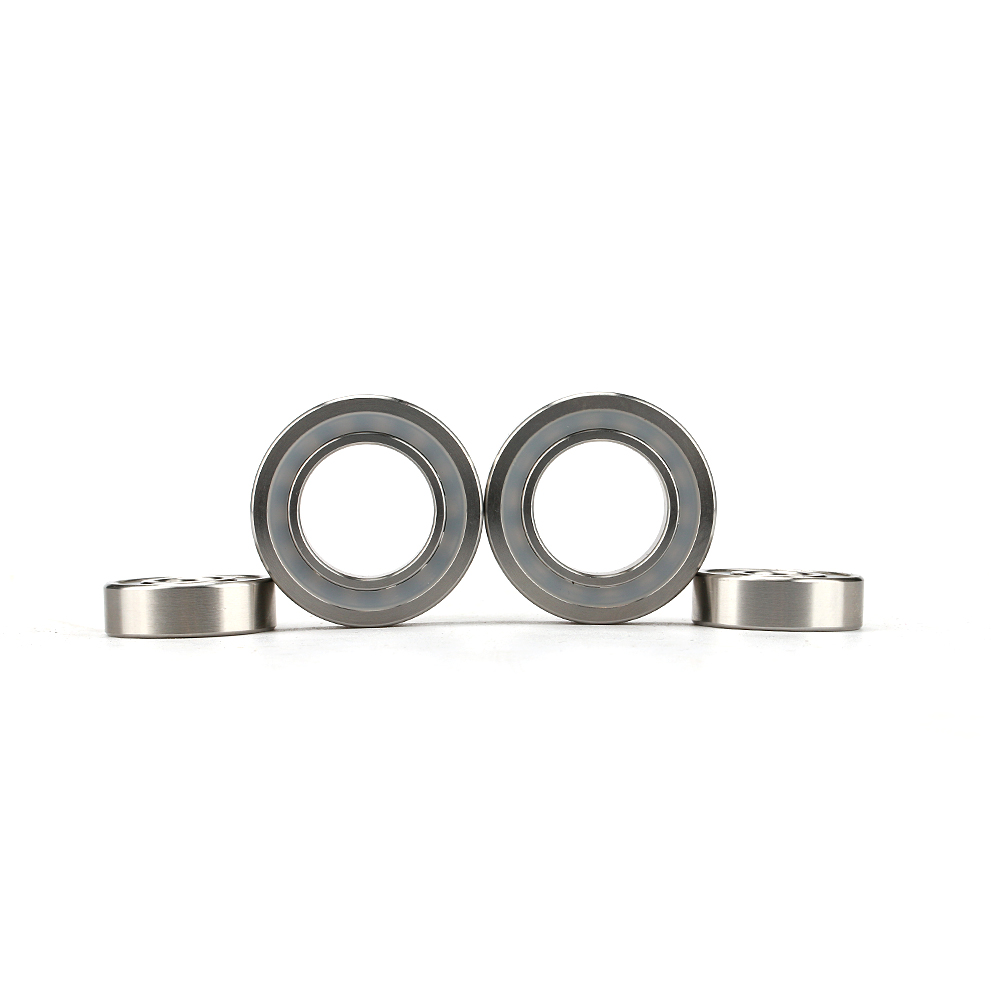

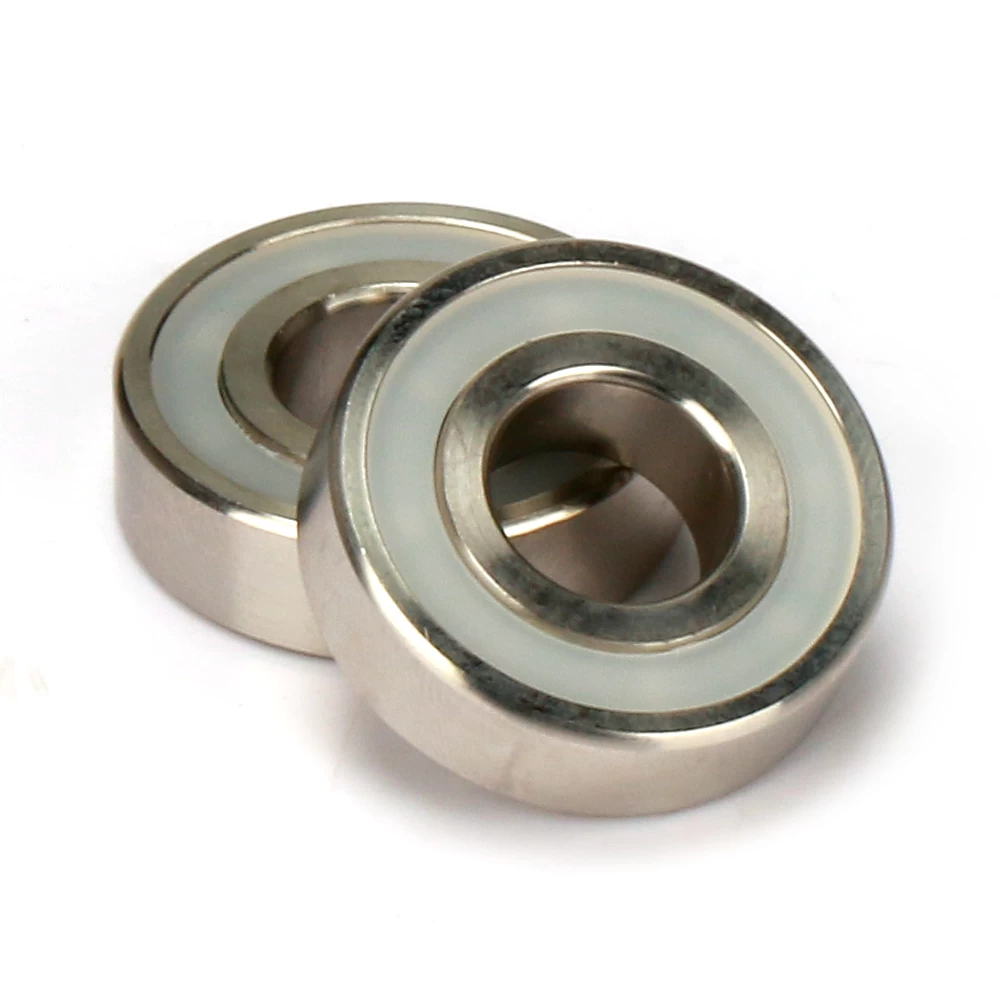

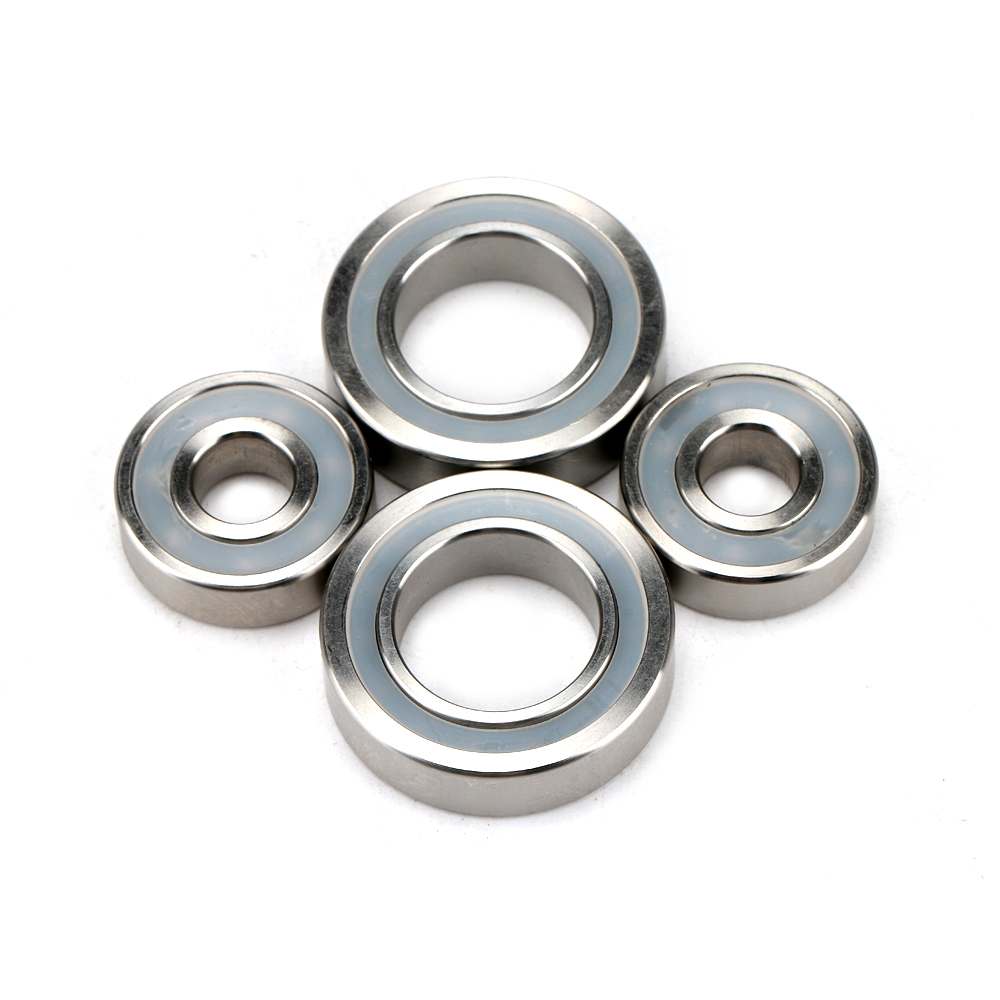

SS Bearing R4 Picture :
R4 Bearing Application :DC motors, Fan, Power Tools, Robotic Systems, Equipment, Vacuum, Align Helicopter, Trex700, Jewelry, Hand Piece, Hobby, RC Helicopters, RC Planes, RC Trucks, RC Cars, Beam Ball Bearing and much more.
We Can Prouce Other Inch Bearings Such As :
R155ZZS E156ZZS R166ZZS R3 R3A R168ZZS R188ZZ R4 R4A R1810 R6
