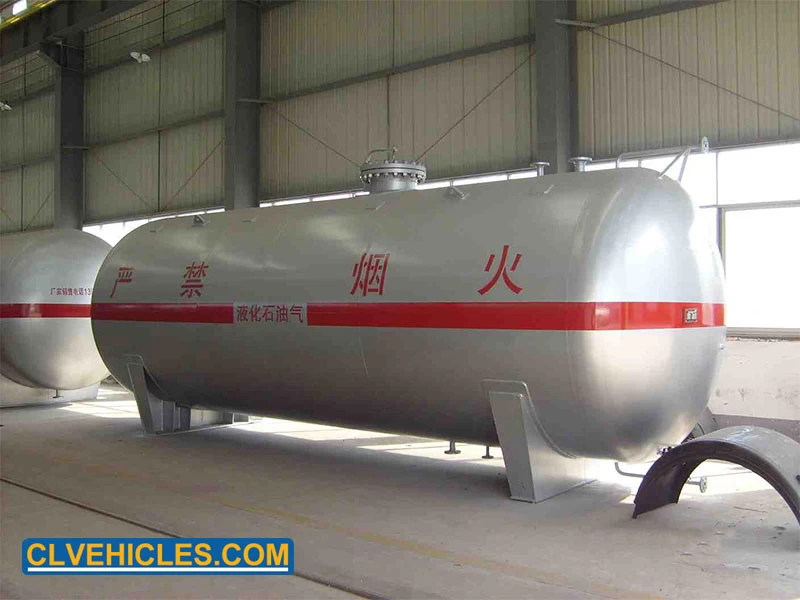

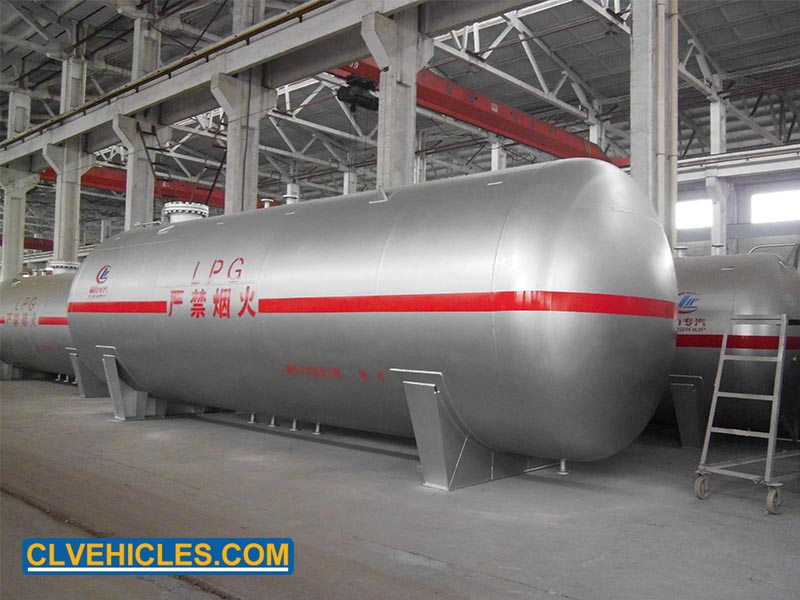

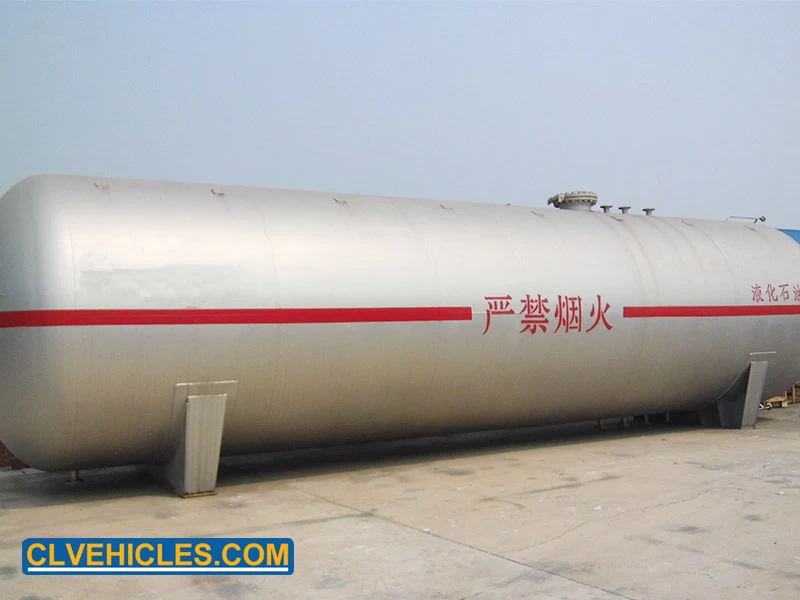

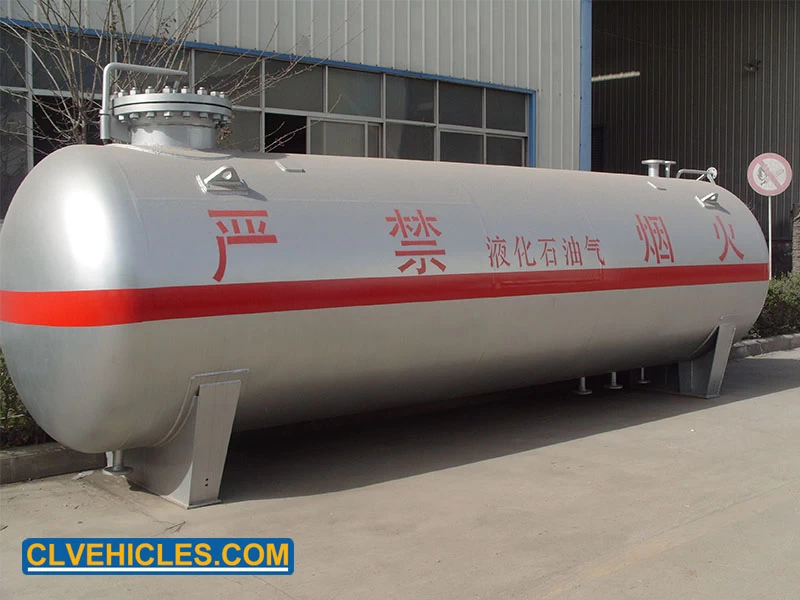

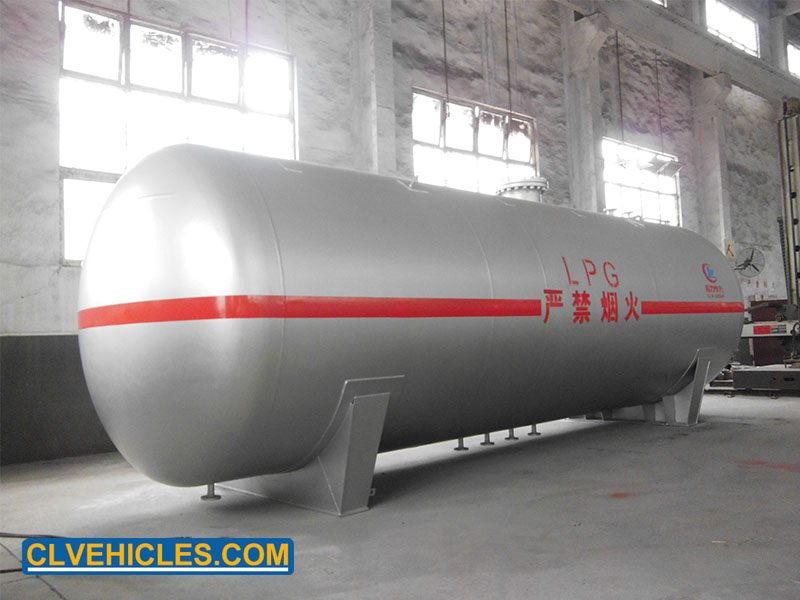

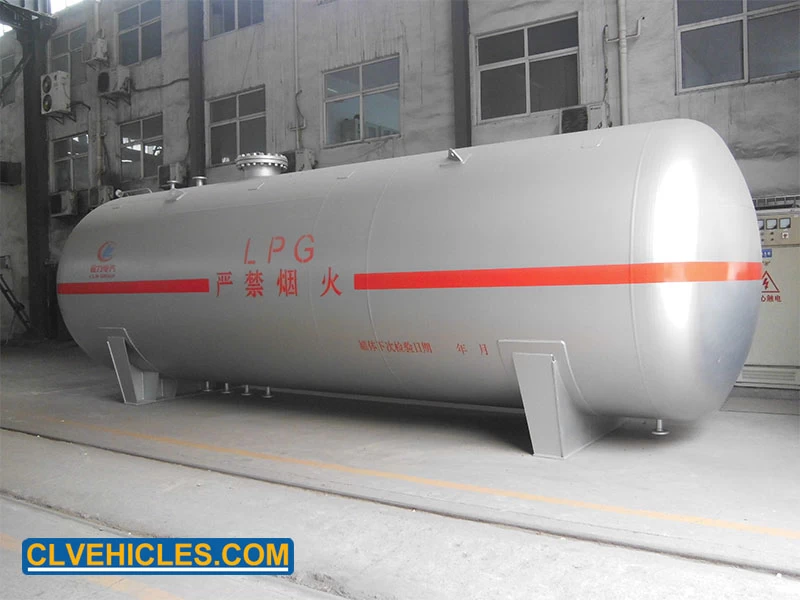

32000 liter liquid petrol gas tank
Liquefied petroleum gas storage tanks can be divided into fixed volume storage tanks and active volume storage tanks according to the volume change of containers. Large fixed volume LPG storage tanks It is made into a spherical shape, and the small one is made into a cylindrical shape.
Storage tank is a double cylinder structure, tube and pipe were used austenitic stainless steel manufacturing, outer cylinder with Q235-B/Q345R manufacturing, sandwich filled with perlite, and vacuum pumping, and setting the after special treatment of the adsorbent to extend the life of vacuum tank.
Quick Details
|
LPG tank size
|
8158*2324*2914
|
|
Propane tank capacity
|
32000 liter
|
|
Design temperature
|
50℃
|
|
Design pressure
|
1.77Mpa
|
|
Leak test pressure
|
1.77Mpa
|
|
Hydraulic test pressure
|
2.3Mpa
|
Applications
LPG storage tank is widely used in the gas industry, hospitals, metal smelting,filling stations and liquefaction plants and other large gas users, is to achieve the best central air supply products.
Competitive Advantages
|
|
|
|
Our LPG tanker trailer is made of Q345R steel which is specialized for pressure vessel 100% X-ray inspection
|
Emergency shut off valve fore safety
|
|
|
|
Double side for discharge and loading ,double tool box and valve box
|
LPG dispenser optional with automatic fault detection and overload protection
|
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
|
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
Supply only upper body without chassis. According to your chassis drawing,
design function parts.
Customization
Communicate with engineer,making design drawings and produce customized products.
Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts
on trucks as tank and box.
|
|
