Main parameters
|
|
Item
|
3.5 inch IPS TFT LCD display
|
|
Model name
|
TST035QVHS-46P
|
|
Display Mode
|
Normally Black,Transmissive
|
|
Resolution
|
320*240
|
|
Technology Type
|
a-Si TFT active matrix
|
|
Driver IC
|
ST7272A
|
Touch screen
|
with RTP
|
|
Outline Dimension
|
|
|
Active Area(mm)
|
70.08x52.56mm
|
|
Interface
|
RGB
|
|
Viewing Direction
|
ALL O'clock
|
|
Surface Luminance
|
220 nits
|
|
Backlight Type
|
6 LED white color
|
|
Operating Temperature
|
-20~70°C
|
|
Storage Temperature
|
-30~+80°C
|

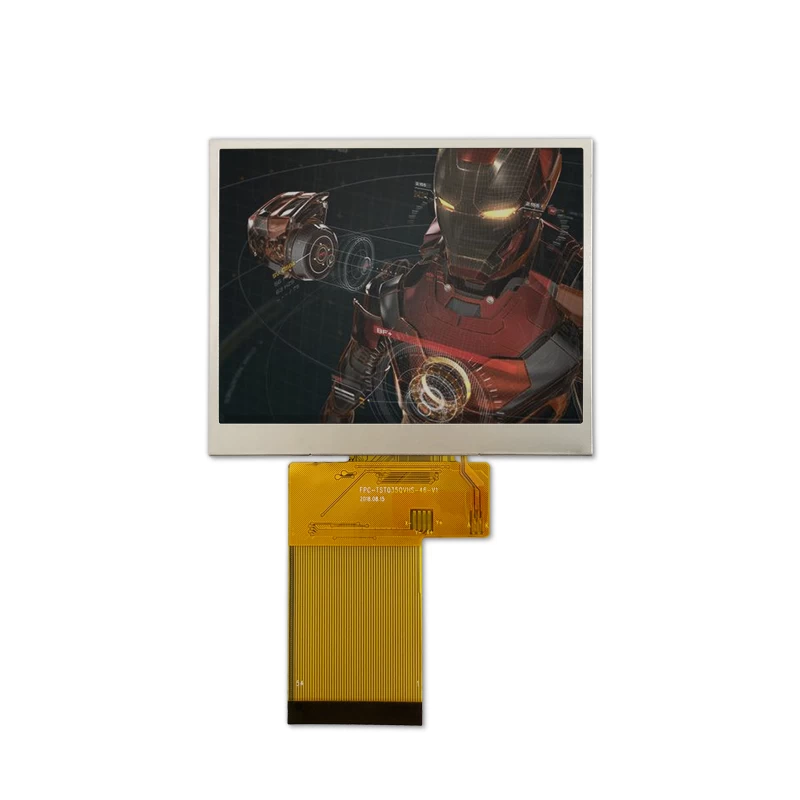

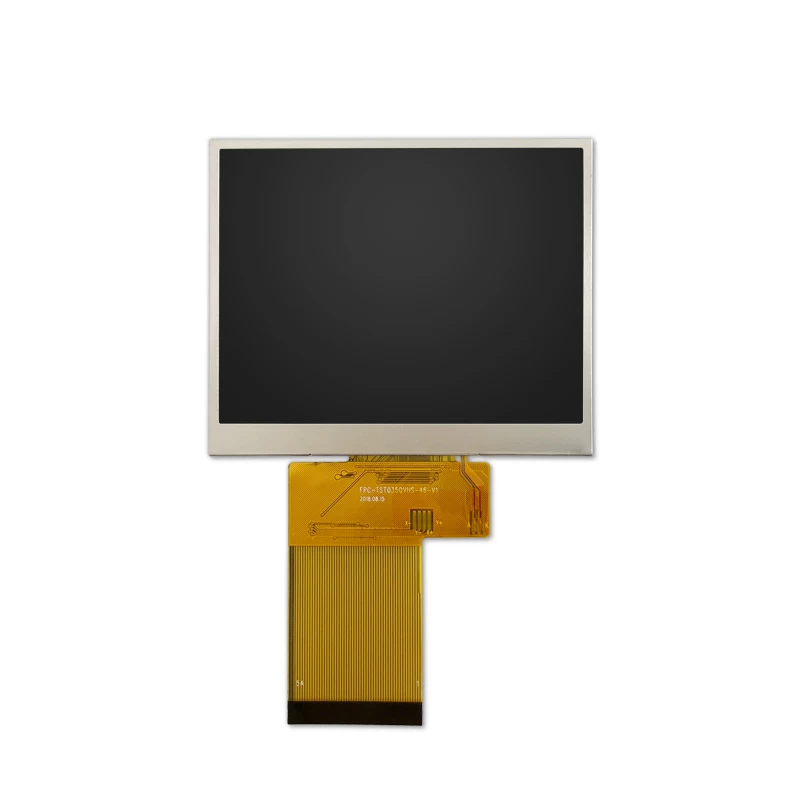

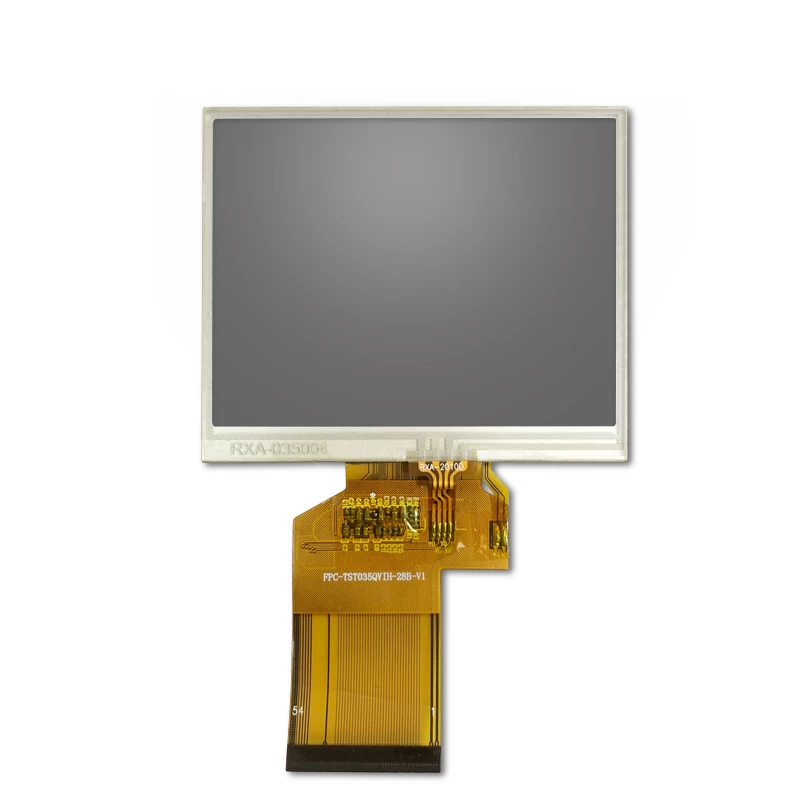

320x240 resolution 3.5 inch ips lcd display with RTP
