320x480 resolution 3.5 inch ips lcd screen with good brightness

320x480 resolution 3.5 inch ips lcd screen with good brightness

Facebook Twitter Pinterest LinkedIn 分享
Main parameters

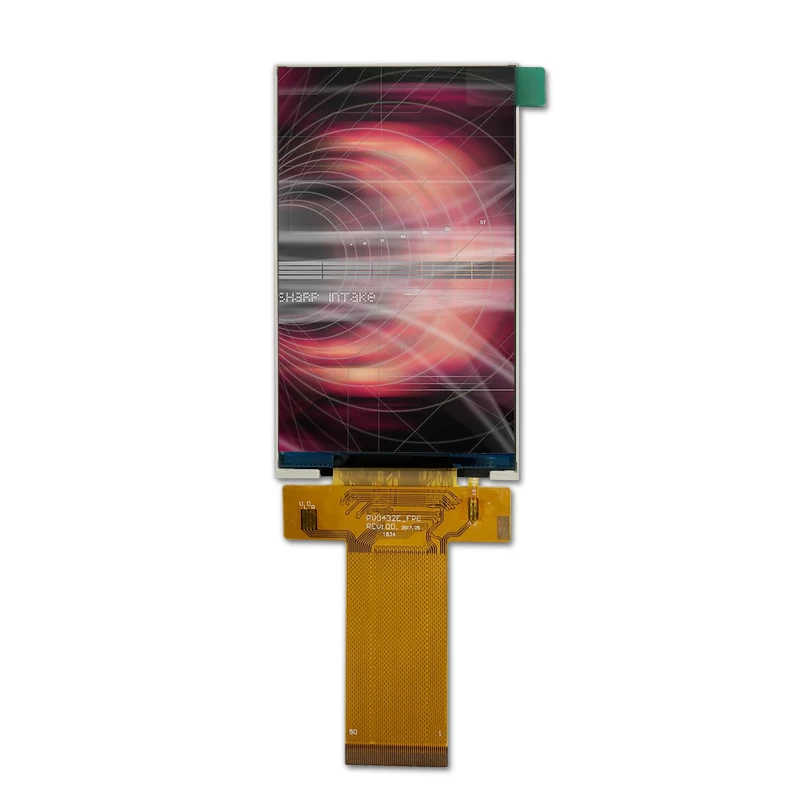

Item 3.5 inch IPS TFT LCD display
Model name TST035HVQI-54
Display Mode Normally Black,Transmissive
Resolution 320*480
Technology Type a-Si TFT active matrix
Driver IC ILI9488
Pixel Configuration R.G.B. Vertical Stripe
Outline Dimension
53.76(W)*84.18(H)*3.30(T)(Exclude FPC)

Active Area(mm) 48.96mm*73.44mm
Interface MCU
Viewing Direction ALL  O'clock
Surface Luminance 480 nits
Backlight Type 6 LED white color
Operating Temperature -20~70°C
Storage Temperature -30~+80°C
