Specification
|
|
LCD type
|
TFT, Transmissive
|
|
Display type
|
3.5 inch TFT lcd hvga, 262k color, normal white
|
|
Driver element
|
a-si TFT Active matrix
|
|
Outline Dimension(mm)
|
54.5x83.0x2.1
|
|
A.A.(mm)
|
48.96x73.44
|
|
Driver IC
|
ILI9488
|
|
Item
|

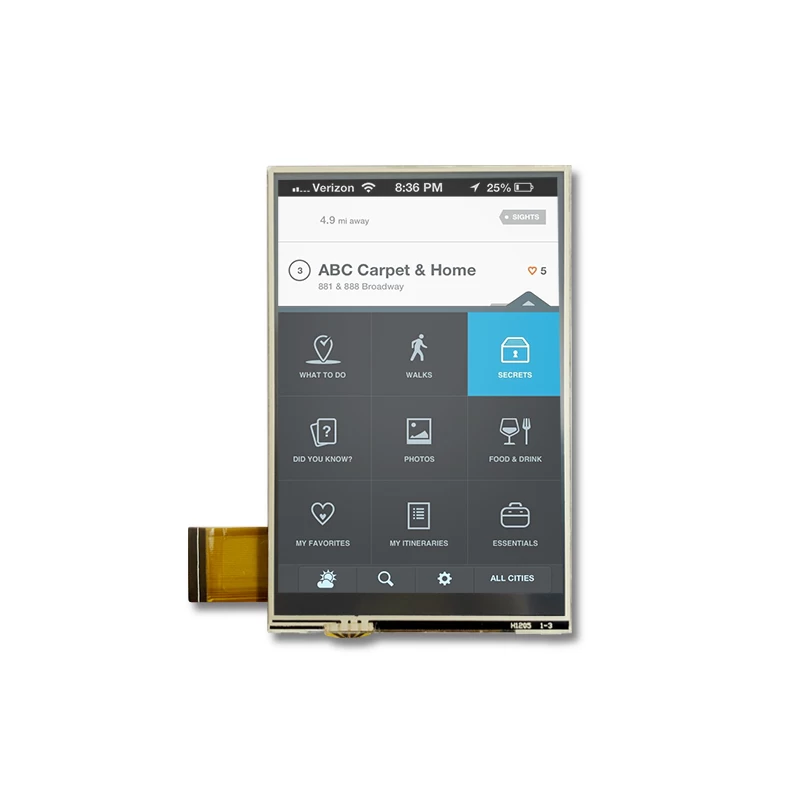

3.5 inch tft lcd panel with zif fpc connector
|
|
Resolution(dots)_
|
320*RGB*480
|
|
Viewing Direction
|
12H
|
|
Operating temperature(°C)
|
-20-70
|
|
Storage temperature(°C)
|
-30-80
|
|
Number of Pixel(pixels)
|
320(H)x 3RGB x 480(V)
|
|
Dots Pitch
|
0.18x0.18
|
|
Operating Volatge
|
2.8v
|
|
Pixel arrangement
|
RGB Stripe
|
|
Display mode
|
Normally white
|
|
Surface treatment
|
Antiglare, Hard-Coating(3H)
|
|
Weight(g)
|
TBD
|
|
Backlight
|
6 LEDs, White
|
|
Weight(g)
|
TBD
|
|
Interface
|
MCU/RGB
|
|
Module lifetime(Hours)
|
50,000-100,000
|
