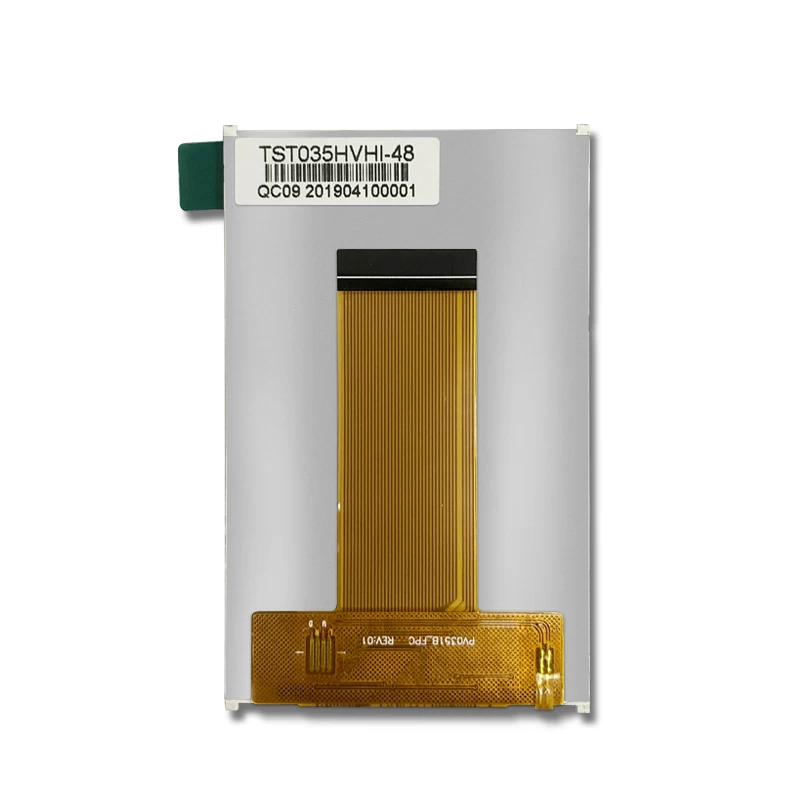

320x480 resolution HVGA 3.5 inch ips lcd module with RGB interface

320x480 resolution HVGA 3.5 inch ips lcd module with RGB interface

Facebook Twitter Pinterest LinkedIn 分享
Main parameters
Item 3.5 inch IPS TFT LCD display
Model name TST035HVHI-48
Display Mode Normally Black,Transmissive
Resolution 320*480
Technology Type a-Si TFT active matrix
Driver IC ILI9488
Pixel Configuration R.G.B. Vertical Stripe
Outline Dimension
53.76(W)*84.18(H)*3.30(T)(Exclude FPC)

Active Area(mm) 48.96mm*73.44mm
Interface 18 bits RGB
Viewing Direction ALL  O'clock
Surface Luminance 350 nits
Backlight Type 6 LED white color
Operating Temperature -20~70°C
Storage Temperature -30~+80°C




Next Product
Prev Product
Product Tags 3.5 inch ips mono tft          3.5 inch tft          tft 3.5 inch          HVGA 3.5 INCH TFT          3.5" inch tft lcd          3.5 inch TFT LCD          tft lcd 3.5 inch          60PIN 3.5 inch TFT          3.5 inch tft display
