330-360W 72cells Polycrystalline Solar Cells Solar Panel

Widely using of the most popular and mature type of modules for on grid or used off grid for residential, commercial or community. All our panels are TUV and CE Certified,have a 25 years warranty.


  • CertificationCE ISO TUV
  • Number Of Cells:72
  • Solar Cell:156*156
  • Power Range330-355
  • BrandLongcom Group
  • Warranty25



Polycrystalline Solar Cells Solar Panel

LCxxxP-72   xxx=Peak power watts
Peak Power Watts(Pmax/W)
330W
335W
340W
345W
350W
355W
Maximum Power Voltage(Vmp/V)
38.7
38.8
38.9
39.0
39.2
39.4
Maximum Power Current(Imp/A)
9.19
9.29
9.39
9.49
9.57
9.65
Open Circuit Voltage(Voc/V)
47.4
47.5
47.6
47.7
48.0
48.3
Short Circuit Current(Isc/A)
9.74
9.84
9.94
10.04
10.11
10.19
Module Effciency(%)
18.4
18.6
18.8
19.0
19.3
19.5

Polycrystalline Solar Cells Solar Panel

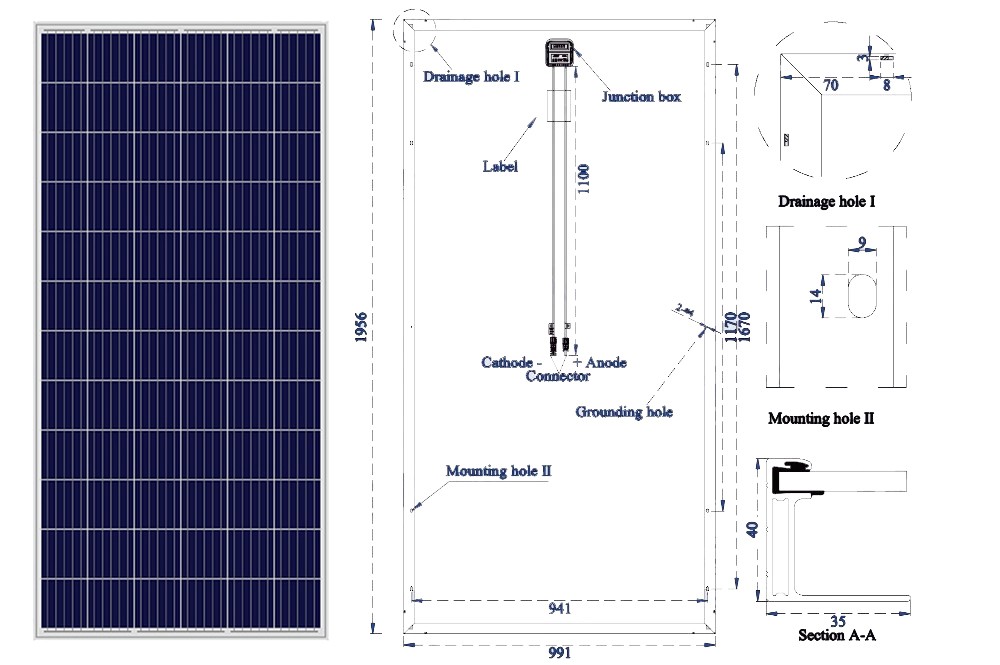

Detailed Photos





Glass
*Anti-reflective glass
*High-transmittance and low reflection Increase model efficiency
*High mechanical strength








Solar Cell


*High model efficiency up to 20%

*High shunt-resistance: adapt the several environmental conditions
*High PID resistant
* Low breakage rate

*Uniform color



Frame
*Optional silvery or black frame
*Tensile Strength Frame
*Boost bearing capability and prolong service life









Junction Box

*Waterproof Junction Box

*Innovative Full-Glue-Filled Combination of series circuit and parallel circuit,

reduced internal power loss Quality diode ensures module running safety

*Heat dissipation
*Long service life
