Relays are important to the integrity of monitoring systems. They provide external alarm annunciation or input to an automatic shutdown device. You can order 3300 monitors with quality, built-in relays. Installation requires no external wiring between relays and rack, and no extra housing to mount the relays. This facilitates installation and minimizes the chance of errors associated with field wiring.
The 3300 system offers 2 relay module types:
• Dual, with 2 relays per module
• Quad, with 4 relays per module.
For system installations on the machine deck, in hazardous areas, or in areas with harsh environments, the dual relay module is available with hermeticallysealed relays. For non-hazardous areas and clean environments such as control rooms or instrument panels, modules with epoxy-sealed relays are available.
All relay modules include arc suppressors as a standard feature to increase the life of the contacts by reducing arcing at the switching point.
Bently Nevada 3300/03-01-00
3300/03-01-00 | Bently Nevada | System Monitor PLC Module
Email:sales3@amikon.cn
|
Inputs
|
|
One relay module can be installed
|
|
Location
|
|
behind each monitor.
|
|
|
|
|
|

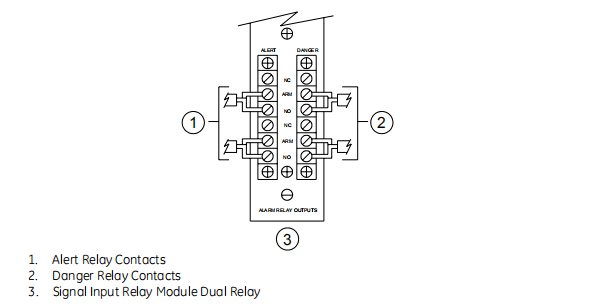

Dual Relay
|
|
One Alert and one Danger relay.
|
|
Module
|
|
|
|
|
|
|
|
Quad Relay
|
|
Two Alert and two Danger relays.
|
|
Module
|
|
|
|
|
|
|
|
Dual Relay
|
|
Double-pole, double-throw
|
|
Module
|
|
(DPDT).
|
|
|
|
|
|
Quad Relay
|
|
Single-pole, double-throw (SPDT)
|
|
Module
|
|
|
|
|
|
|
|
Dual Relay
|
|
Optional epoxy- or hermetically
|
|
Module
|
|
sealed.
|
|
|
|
|
|
Quad Relay
|
|
Epoxy-sealed.
|
|
Module
|
|
|
