3300/15 | Bently Nevada | Dual Vibration Monitor

The 3300 System provides continuous, online monitoring suitable for machinery protection applications




Bently Nevada    3300/15  !!!  --- sales3@amikon.cn



  Contact:  Jessica

                               Email:  sales3@amikon.cn

                               Skype:  jessica01235483

                               Wechat:  hu18030235311

                               Mobile:  86-18030235311(WhatsApp)









Relays are important to the integrity of monitoring systems. They provide external alarm annunciation or input to an automatic shutdown device. You can order 3300 monitors with quality, built-in relays. Installation requires no external wiring between relays and rack, and no extra housing to mount the relays. This facilitates installation and minimizes the chance of errors associated with field wiring.





The 3300 system offers 2 relay module types:


• Dual, with 2 relays per module
• Quad, with 4 relays per module.





For system installations on the machine deck, in hazardous areas, or in areas with harsh environments, the dual relay module is available with hermeticallysealed relays. For non-hazardous areas and clean environments such as control rooms or instrument panels, modules with epoxy-sealed relays are available.




All relay modules include arc suppressors as a standard feature to increase the life of the contacts by reducing arcing at the switching point.








Bently Nevada   3300/15


3300/15 | Bently Nevada | Dual Vibration Monitor






Email:sales3@amikon.cn






Inputs  One relay module can be installed
Location  behind each monitor.
Dual Relay  One Alert and one Danger relay.
Module

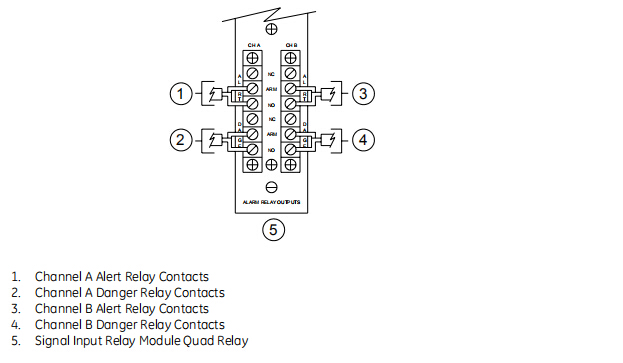

Quad Relay  Two Alert and two Danger relays.
Module
Dual Relay  Double-pole, double-throw
Module  (DPDT).
Quad Relay  Single-pole, double-throw (SPDT).
Module
Dual Relay  Optional epoxy- or hermetically-
Module  sealed.
Quad Relay  Epoxy-sealed.
Module
Arc Suppressors  Installed as standard.
