The 3300 XL 11 mm Proximity Transducer System consists of:
• 3300 XL 11 mm probe
• 3300 XL 11 mm extension cable
• 3300 XL 11 mm Proximitor® Sensor1
The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil)output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System. It is primarily used in the following applications where the longer linear range is necessary:
• Axial (thrust) position measurements
• Ramp differential expansion measurements on steam turbines
• Rod position or rod drop measurements on reciprocating compressors
• Tachometer and zero speed measurements
• Phase reference (Keyphasor®) signals
|
Manufacturer : Bently Nevada
Product No : 330780-91-00

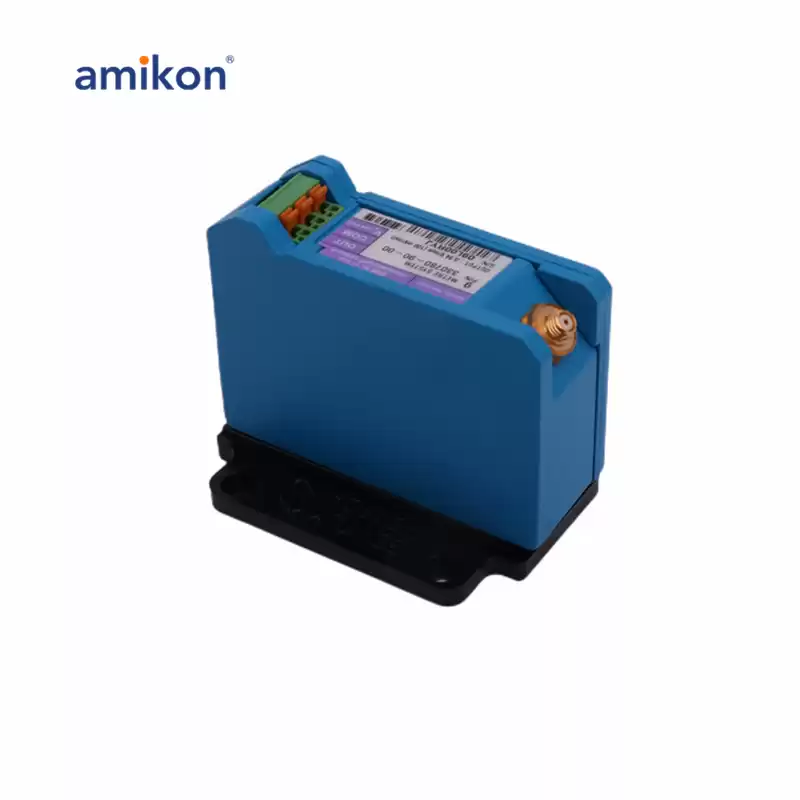

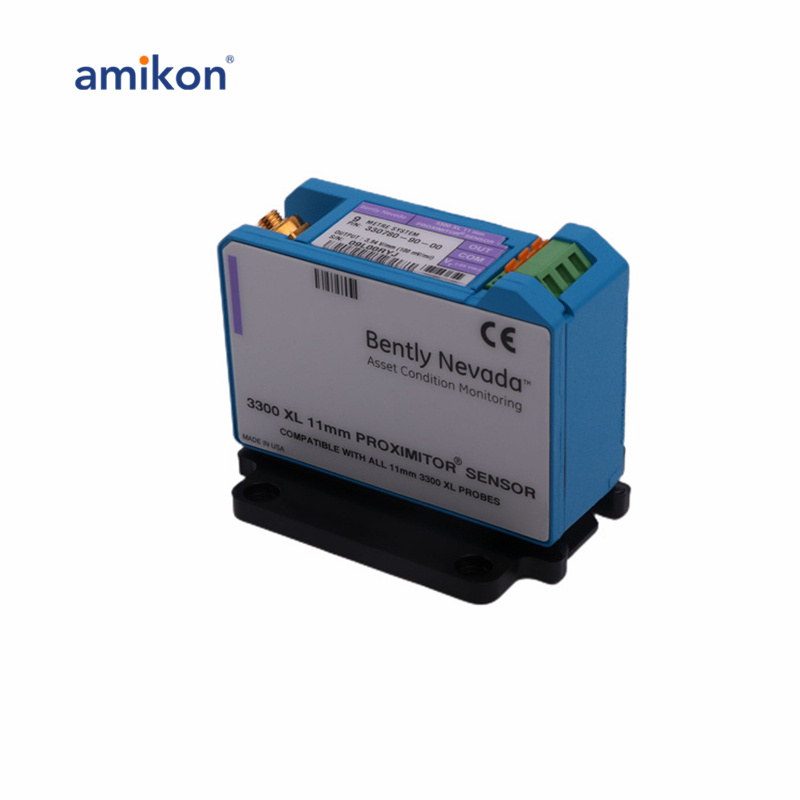

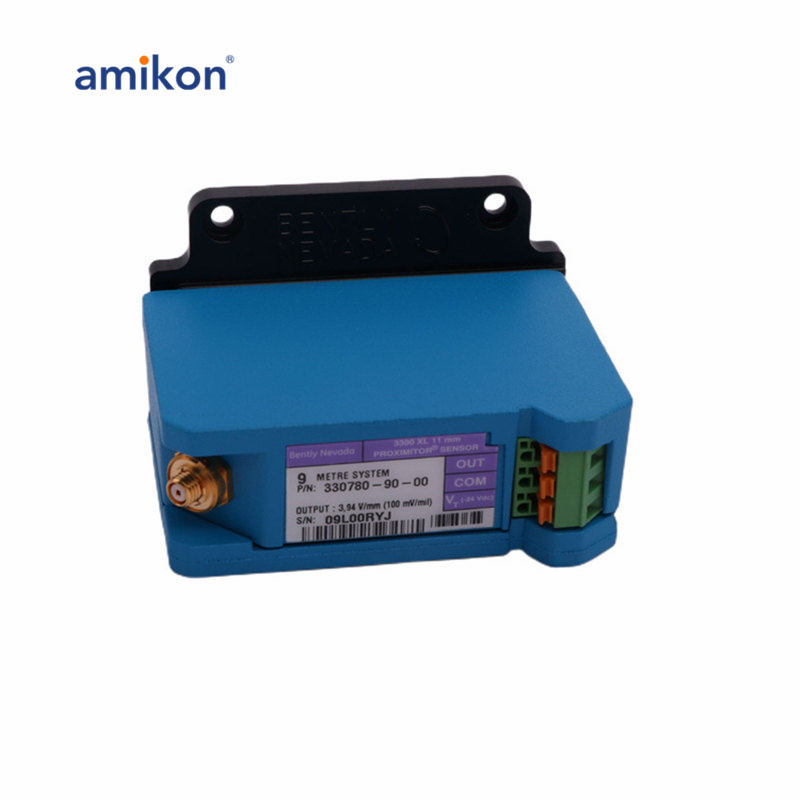

Product type : 3300 XL 11 mm Proximitor Sensor
91 - Total Length and Mounting Option : 9.0 metres (29.5 feet) system length, DIN mount
00 - Agency Approval Option : Not required
Proximitor Sensor Input : Accepts one noncontacting 3300 XL 11 mm Proximity Probe and Extension Cable
Power : Requires -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption, -23 Vdc to -26 Vdc with barriers. Operation at a more positive voltage than -23.5 Vdc can result in reduced linear range
Operating Temperature: -35°C to +85°C (-31°F to +185°F)
Storage Temperature: -51°C to +100°C (-60°F to +212°F)
Weight : 0.255 Kg
|
