The 3300 XL probe and extension cable have been improved over previous designs, featuring a patented TipLoc* molding method that creates a stronger bond between the probe tip and the probe body. The probe’s cable also incorporates a patented CableLoc* design, providing 330 N (75 lbf) pull strength to securely attach the cable to the probe tip.
The 3300 XL 8 mm Proximity Transducer System includes one 3300 XL 8 mm probe, one 3300 XL extension cable, and one 3300 XL Proximitor Sensor. This system provides an output voltage directly proportional to the distance between the probe tip and the observed conductive surface, allowing it to measure both static (position) and dynamic (vibration) values.
Ordering Information
|
Model
|
330101
|

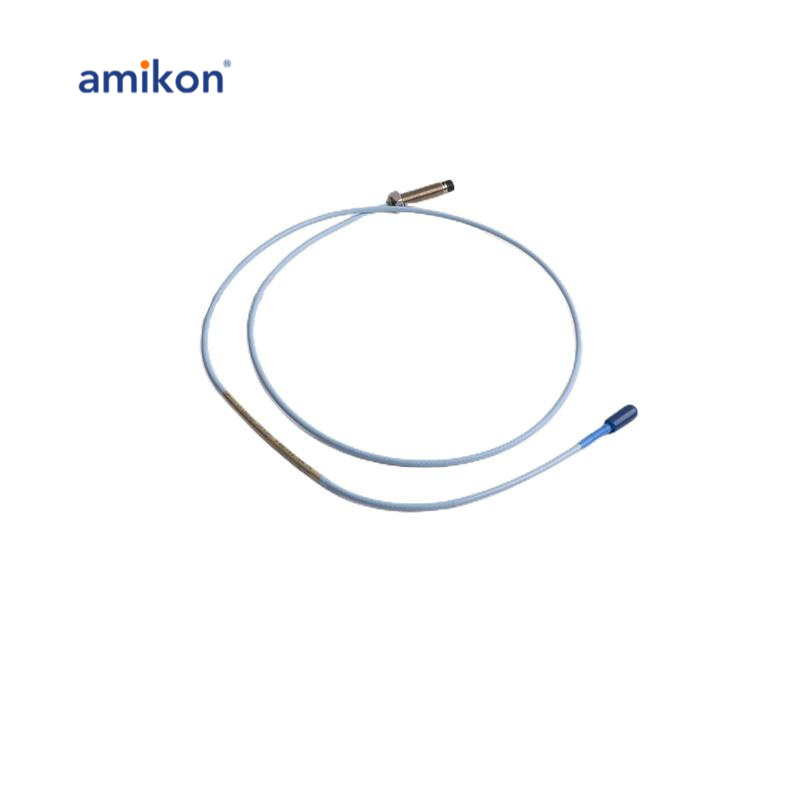

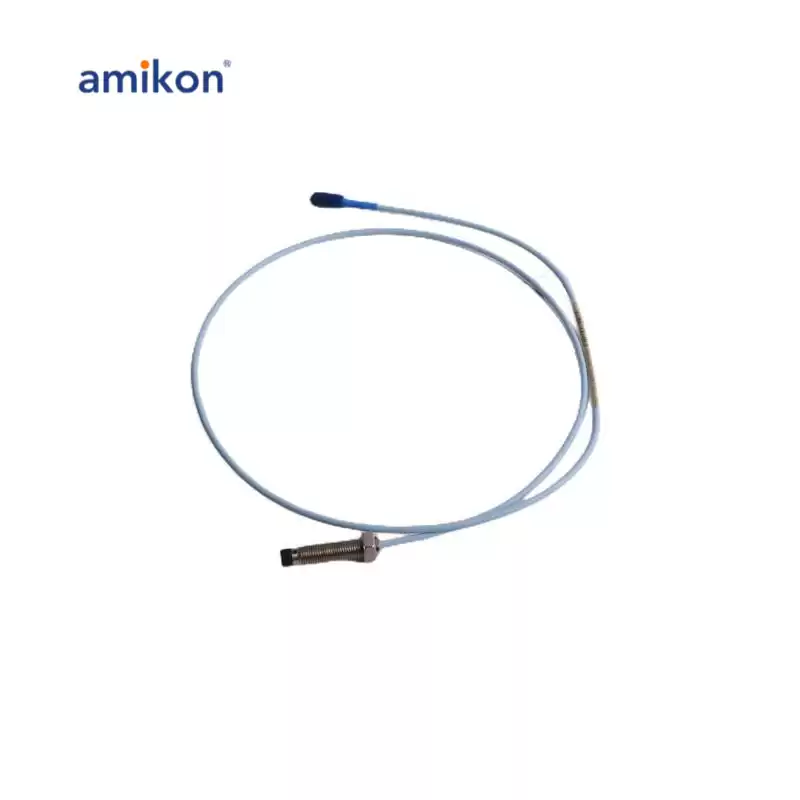

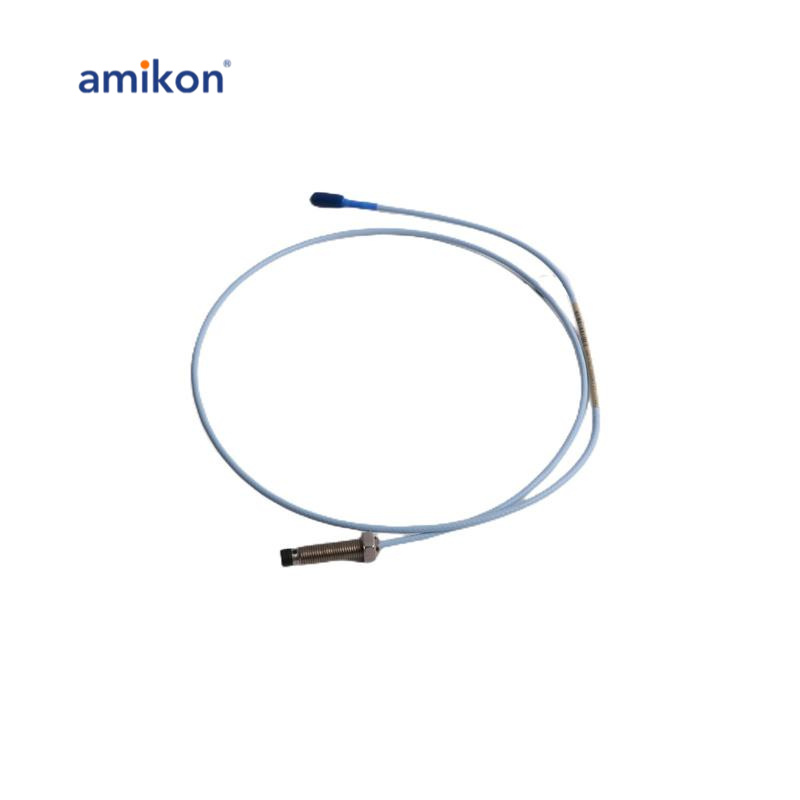

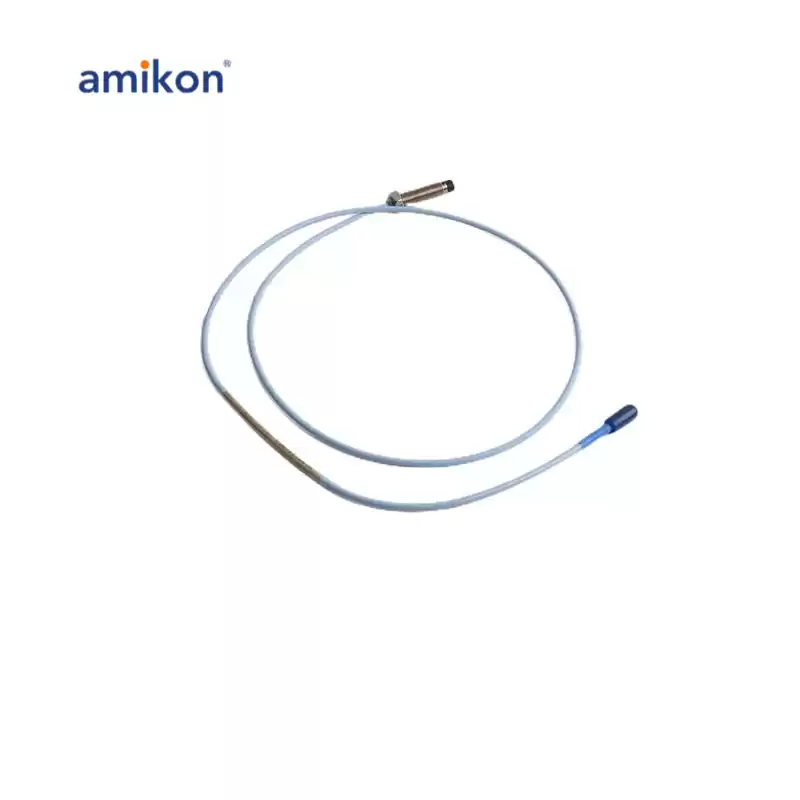

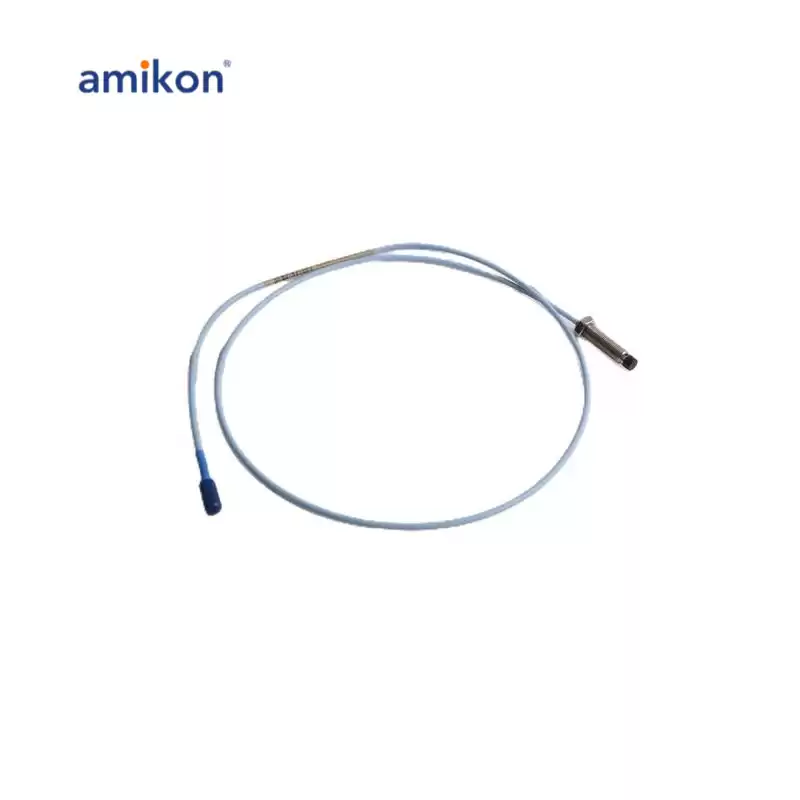

3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor²
|
|
Unthreaded Length Option
|
00
|
0.0 in
|
|
Overall Case Length Option
|
08
|
0.8 in
|
|
Total Length Option
|
05
|
0.5 metre (1.6 feet)
|
|
Connector and Cable-Type Option
|
02
|
Miniature coaxial ClickLoc connector, standard cable
|
|
Agency Approval Option
|
00
|
Not required
|
