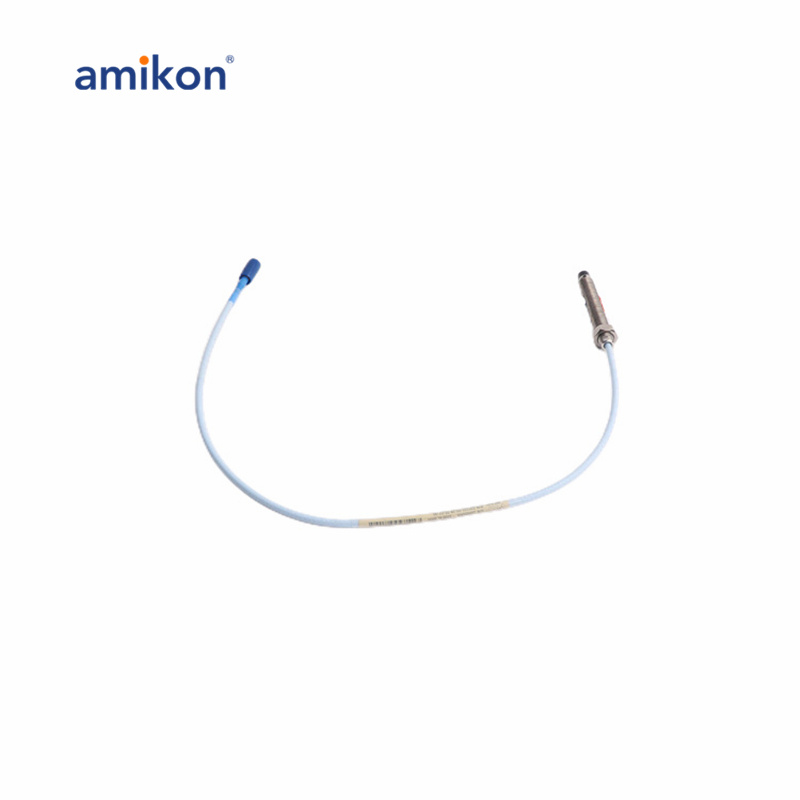

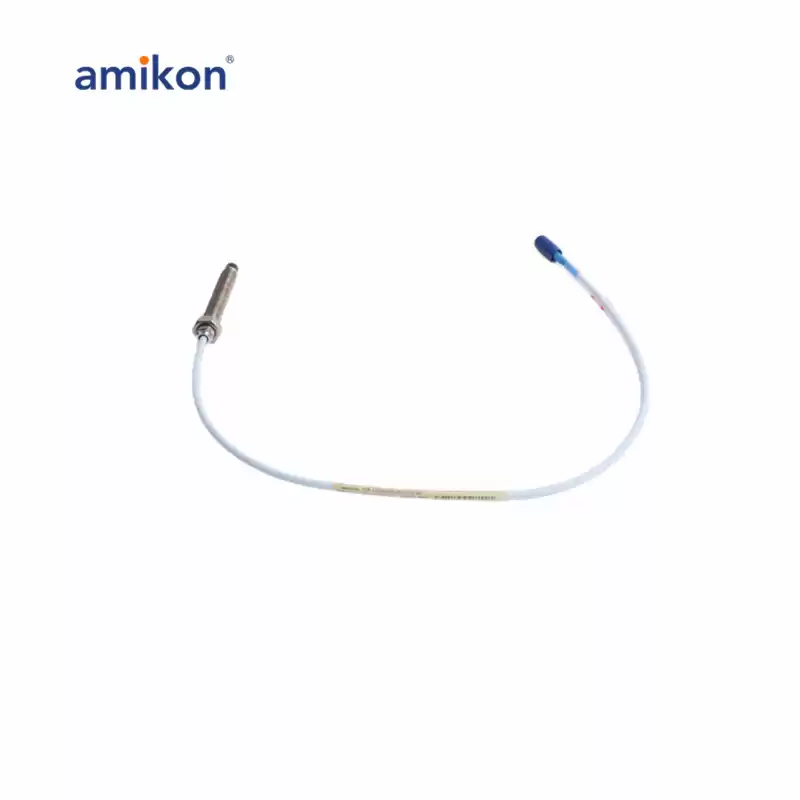

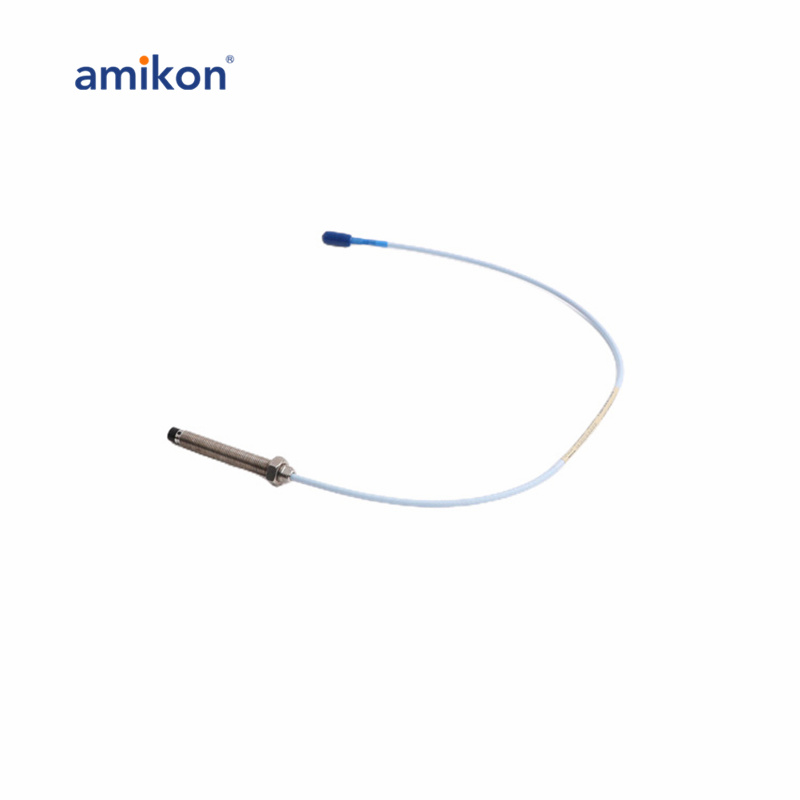

330101-00-20-10-02-05 Proximity Probe and Extension

330101-00-20-10-02-05 is a Proximity Probe and Extension Cable 8mm manufactured by Bently Nevada and used in Proximity Transducer System. The Proximity Transducer System and Sensors of the 3300 XL series work with replaceable probes of different length, armor, and connectors made by Bently Nevada.

Functional Description
The 3300 XL 8 mm system provides the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-metre system also completely complies with the API 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability.
This level of performance is provided by all 3300 XL 8 mm proximity transducer systems, which also offer total interchangeability of probes, extension cables, and Proximitor sensors, removing the need to match or bench calibrate individual components.
Each component of the 3300 XL 8 mm Transducer System is backwards compatible and interchangeable4 with non-XL 3300 series 5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm probe, which is useful in applications where an 8 mm probe would be too large for the limited mounting area.
330101-00-20-10-02-05 Features
Armored and Unarmored Options
Multiple Connector Options
Complete Interchangeability of Units and Cabling
Product Characteristics
Length: 1.0 metre (3.3 feet)
Weight: 0.23 Kg
Storage Temperature : -51 °C to +177 °C (-60 °F to +351 °F)
Unthreaded Length Option: 0 mm
Overall Case Length: 2.0 metres (6.6 feet)
Connector and Cable Type: 02 - Miniature coaxial ClickLoc, connector, standard cable
Agency Approval: Not required
