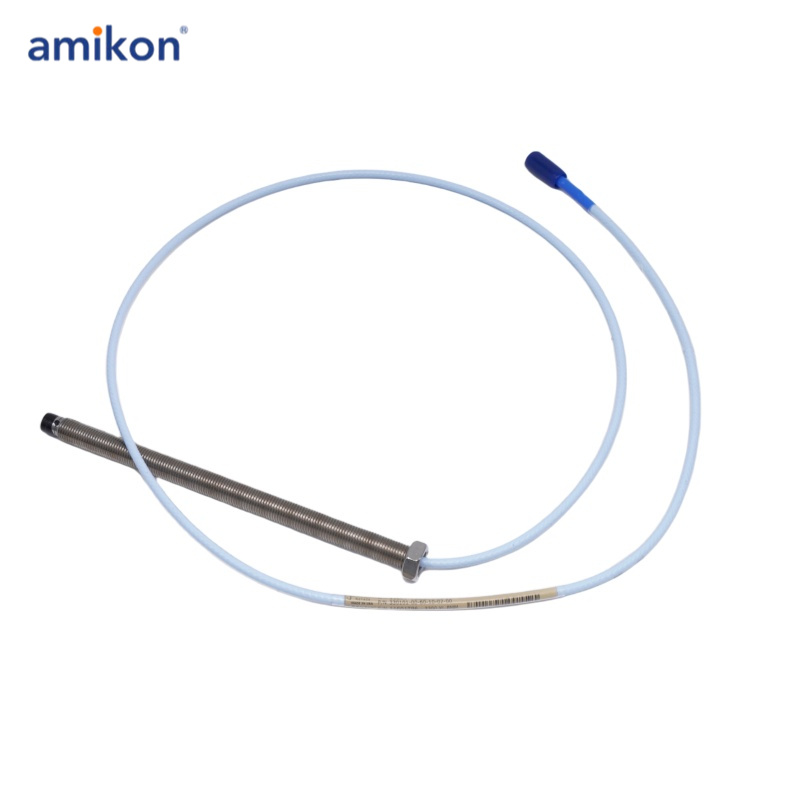

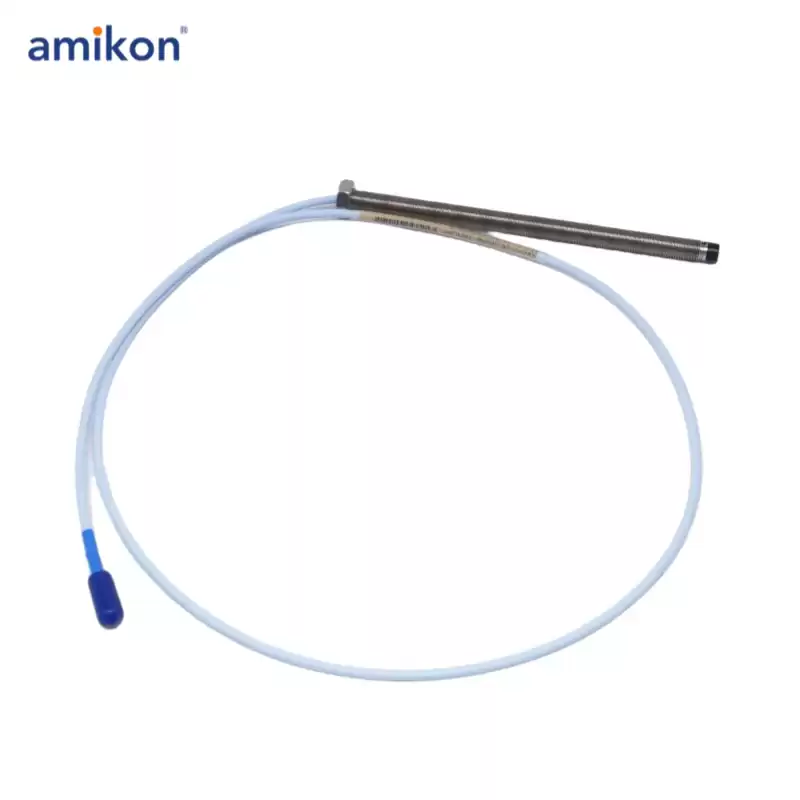

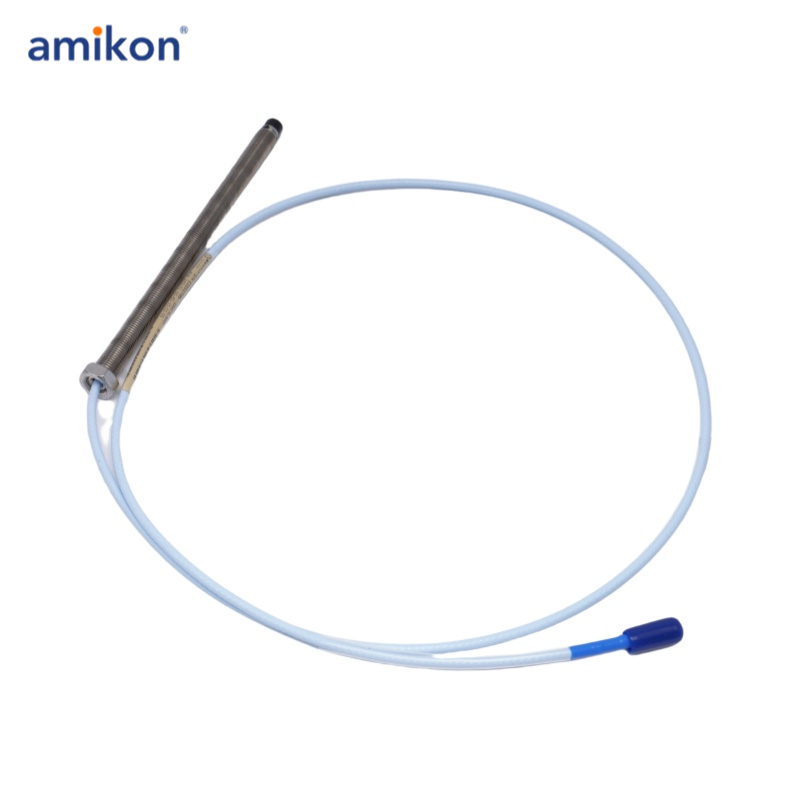

Part Number: 330101-00-24-10-02-CN
Model: 3300 XL 8 mm Proximity Probes
Manufacturer: Bently Nevada
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
|
Model
|
330101
|
3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor²
|
|
Unthreaded Length Option
|
00
|
0.0 in
|
|
Overall Case Length Option
|
24
|
2.4 in
|
|
Total Length Option
|
10
|
1.0 metre (3.3 feet)
|
|
Connector and Cable-Type Option
|
02
|
Miniature coaxial ClickLoc connector, standard cable
|
|
Agency Approval Option
|
CN
|
ATEX/IECEx and Chinese NEPSI hazardous area marking
|
The 3300 XL 8mm proximity sensor system consists of the following components:
A 3300 XL 8mm probe,
A 3300 XL extension cable, and
A 3300 XL Proximitor sensor.
The output voltage provided by the system is proportional to the distance between the probe tip and the observed point. This output voltage can measure both static (position) and dynamic (vibration) values. The system is primarily used for vibration and position measurements on fluid film bearing machines, as well as Keyphasor* reference and speed measurements.
The 3300 XL 8mm system features the most advanced performance in eddy current proximity sensor systems. The standard 3300 XL 8mm 5-meter system fully complies with the mechanical configuration, linear range, accuracy, and temperature stability outlined in the American Petroleum Institute (API) 670 standard (4th edition). All 3300 XL 8mm proximity sensor systems provide this level of performance and support full interchangeability of probes, extension cables, and Proximitor sensors, with no need for matching or calibration of individual components.
Each component of the 3300 XL 8mm sensor system is backward compatible and can be interchanged with other non-XL 3300 series 5mm and 8mm sensor system components. This compatibility includes 3300 5mm probes, which are suitable for applications where an 8mm probe is too large to fit the existing installation space.
