330101-00-27-50-02-05 | Bently Nevada | 3300 XL 8 mm Proximity Probes

330101-00-27-50-02-05 | Bently Nevada | 3300 XL 8 mm Proximity Probes

Manufacturer : Bently Nevada
Product No. : 330101-00-27-50-02-05
Product type : 3300 XL 8 mm Proximity Probes

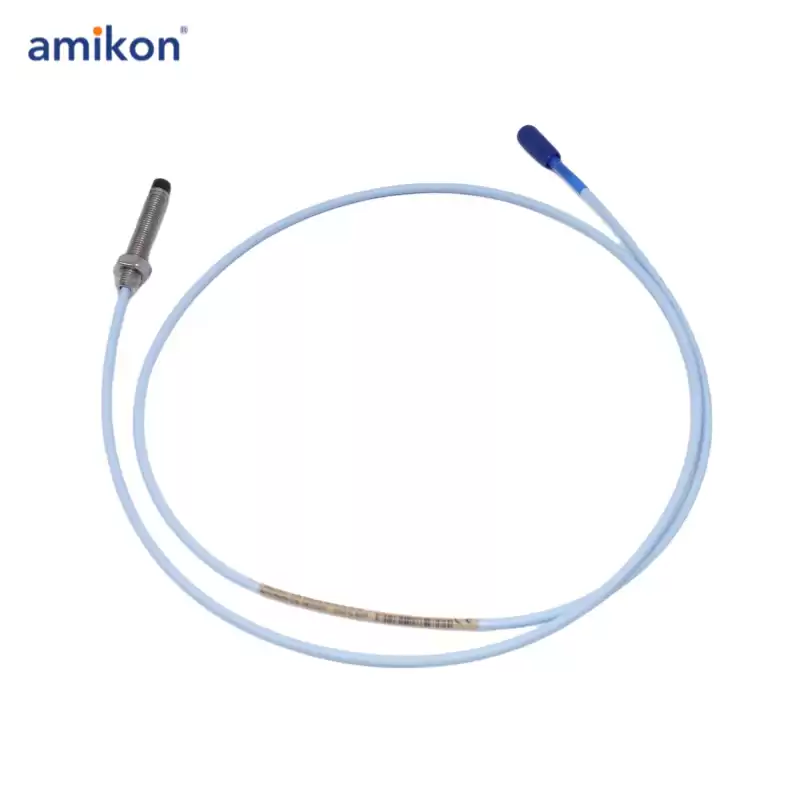

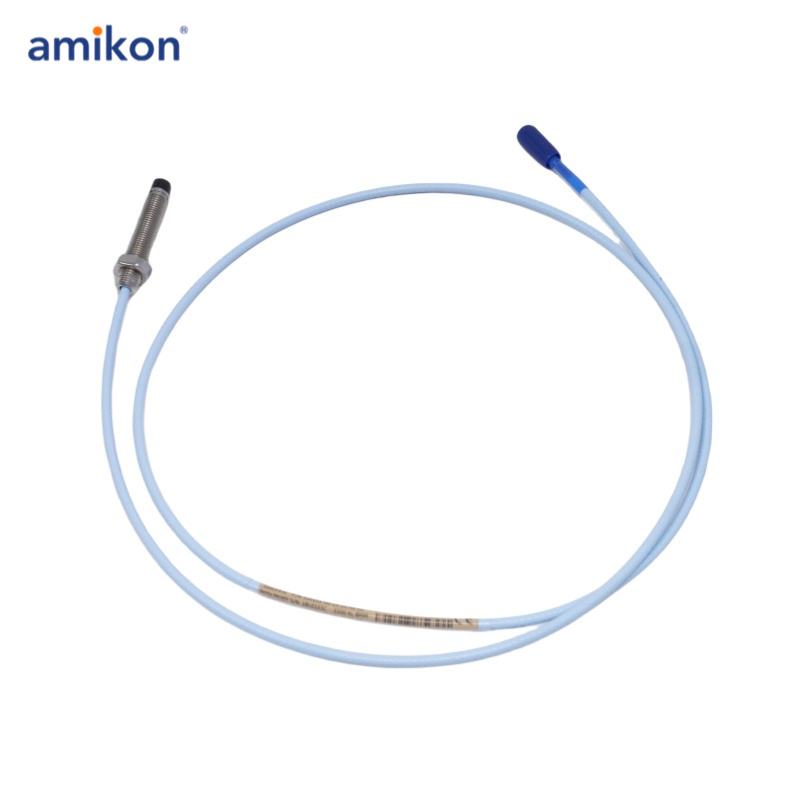

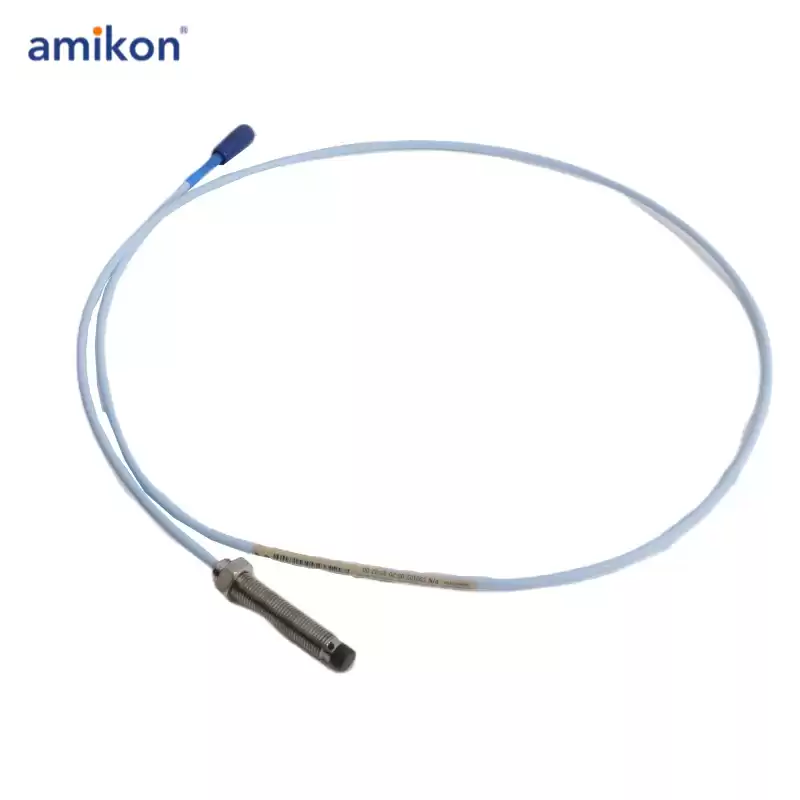

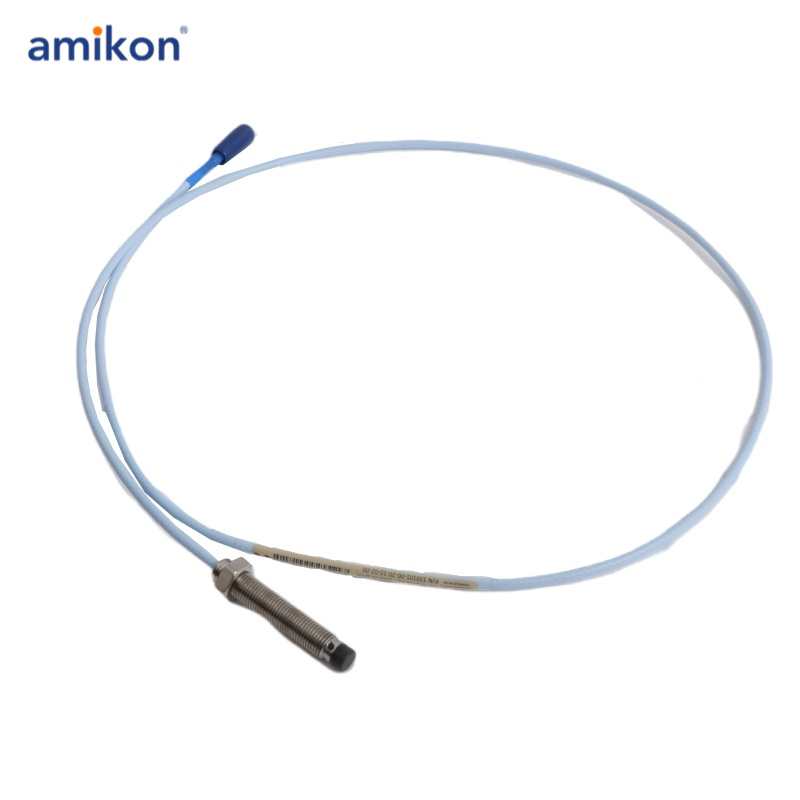

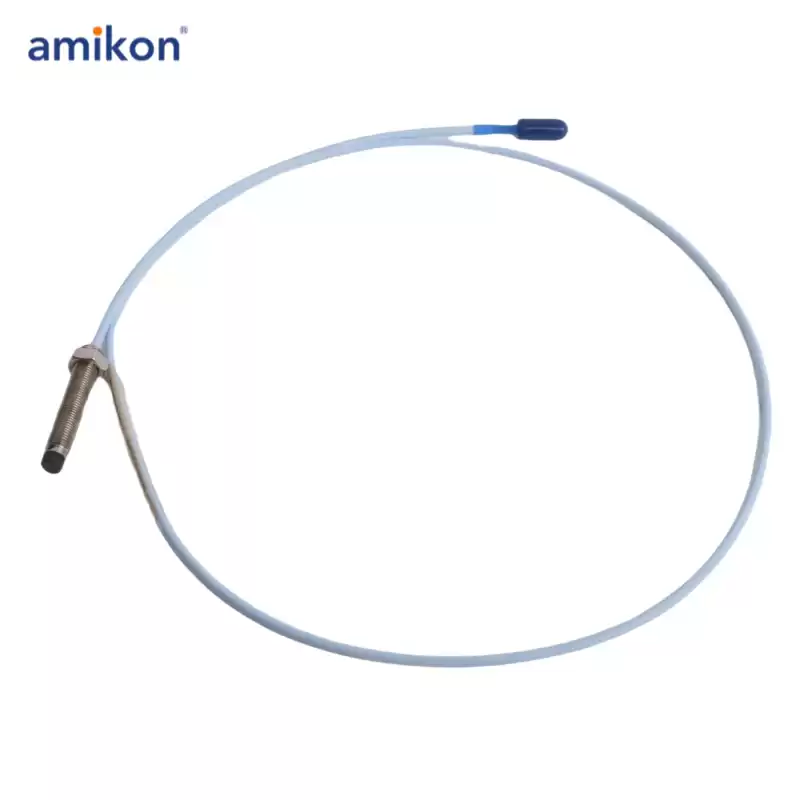

3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor
Unthreaded Length Option : 00 = 0.0 in
Overall Case Length Option : 27 = 2.7 in
Total Length Option : 50 = 5.0 metre (16.4 feet)
Connector and Cable-Type Option : 02 = Miniature coaxial ClickLocTM connector, standard cable
Agency Approval Option : CN = Approvals country specific (CN Approvals Option Quick Reference Guide and Field Notification Letter are in the download section)
Probe Tip Material: Polyphenylene sulfide (PPS).
Probe Case Material: AISI 303 or 304 stainless steel (SST).

The 330101-00-27-50-02-05 3300 XL probe and extension cable also reflect improvements over previous designs. A patented TipLoc* molding method provides a more robust bond between the probe tip and the probe body. The probe’s cable incorporates a patented CableLoc* design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.
You can also order 330101-00-27-50-02-05 3300 XL 8 mm probes and extension cables with an optional FluidLoc* cable option. This option prevents oil and other liquids from leaking out of the machine through the cable’s interior.
