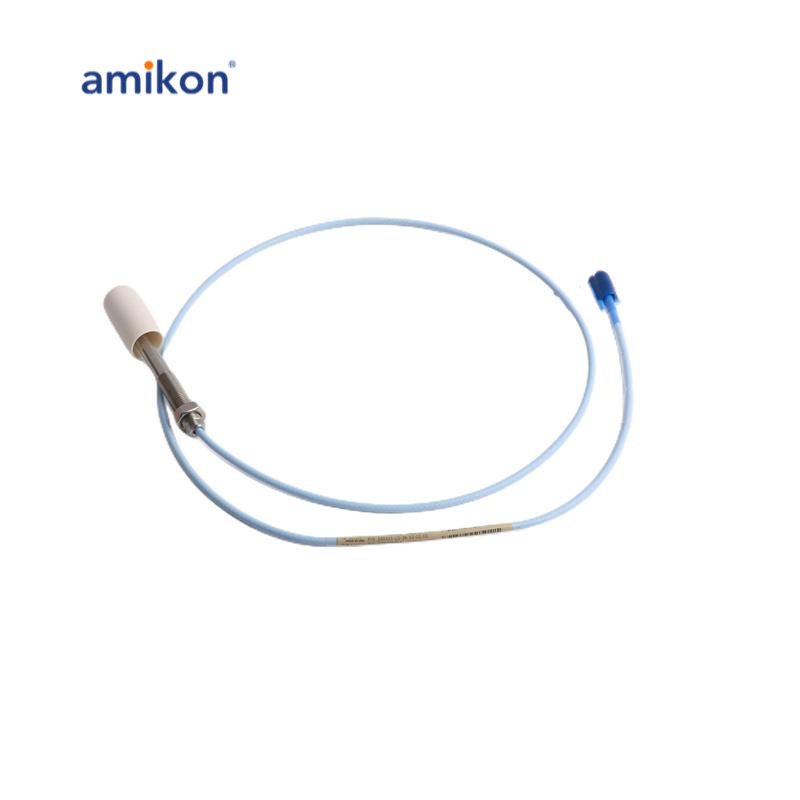

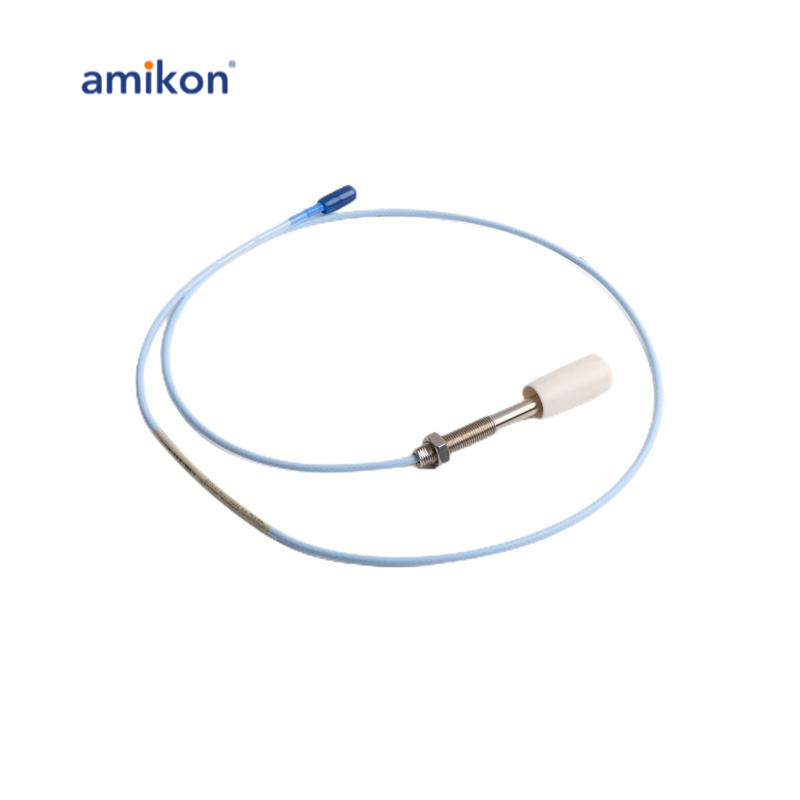

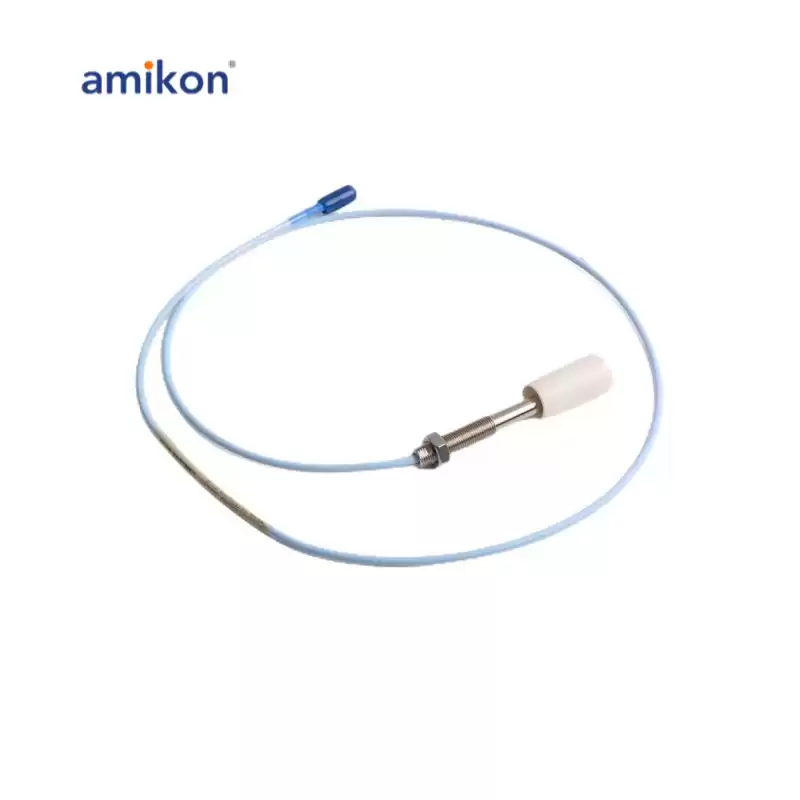

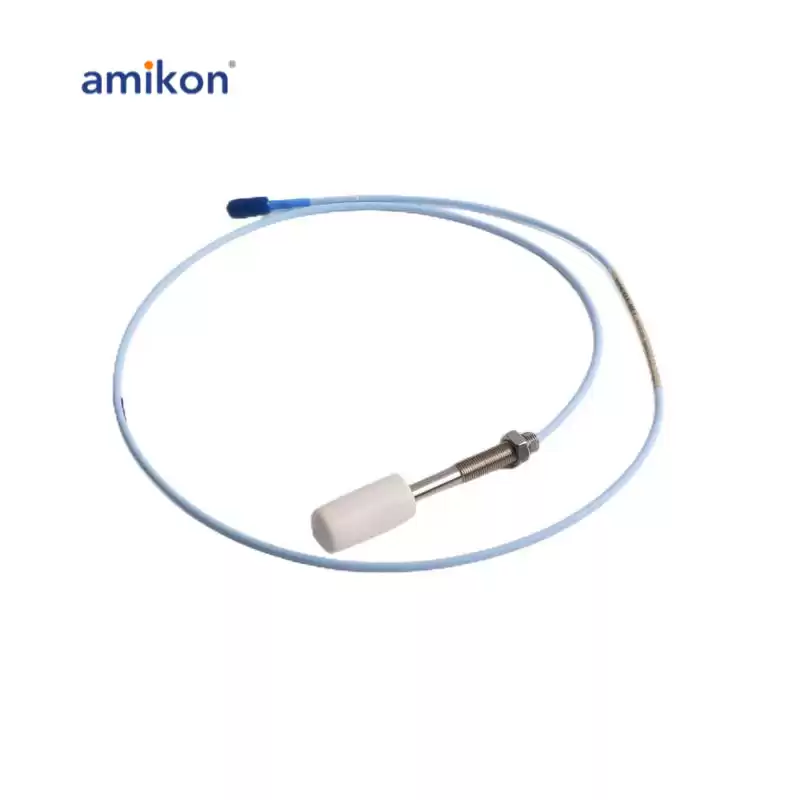

Manufacturer : Bently Nevada
Product No. : 330101-00-20-05-02-CN
Product type : 3300 XL 8 mm Proximity Probes
3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor
Unthreaded Length Option : 00 = 0.0 in
Overall Case Length Option : 20 = 2.0 in
Total Length Option : 05 = 0.5 metre (1.6 feet)
Connector and Cable-Type Option : 02 = Miniature coaxial ClickLocTM connector, standard cable
Agency Approval Option : CN = Approvals country specific (CN Approvals Option Quick Reference Guide and Field Notification Letter are in the download section)
Probe Tip Material: Polyphenylene sulfide (PPS).
Probe Case Material: AISI 303 or 304 stainless steel (SST).
Operating and Storage Temperature: Standard probe: -51 °C to +177 °C (-60 °F to +351 °F)
Probe Pressure: 3300 XL 8 mm probes are designed to seal differential pressure between the probe tip and case. The probe sealing material consists of a Viton® O-ring. Probes are not pressure tested prior to shipment. Contact our custom design department if you require a test of the pressure seal for your application.
Weight : 0.323 Kg
The 330101-00-20-05-02-CN 3300 XL probe and extension cable bring several enhancements over previous designs, ensuring improved performance and reliability. The use of a patented TipLoc™ molding method strengthens the bond between the probe tip and the probe body, increasing the overall durability of the system.
Additionally, the 330101-00-20-05-02-CN 3300 XL Proximitor Sensor features enhanced RFI/EMI immunity, meeting European CE mark approvals without the need for special shielded conduit or metallic housings. This improvement reduces installation costs and complexity, making it more cost-effective and easier to deploy in various industrial environments.
The probe’s cable also incorporates a patented CableLoc™ design, which provides a remarkable 330 N (75 lbf) pull strength, ensuring a secure connection between the probe cable and the probe tip. These innovations make the 3300 XL system a more reliable and efficient solution for a wide range of applications.
