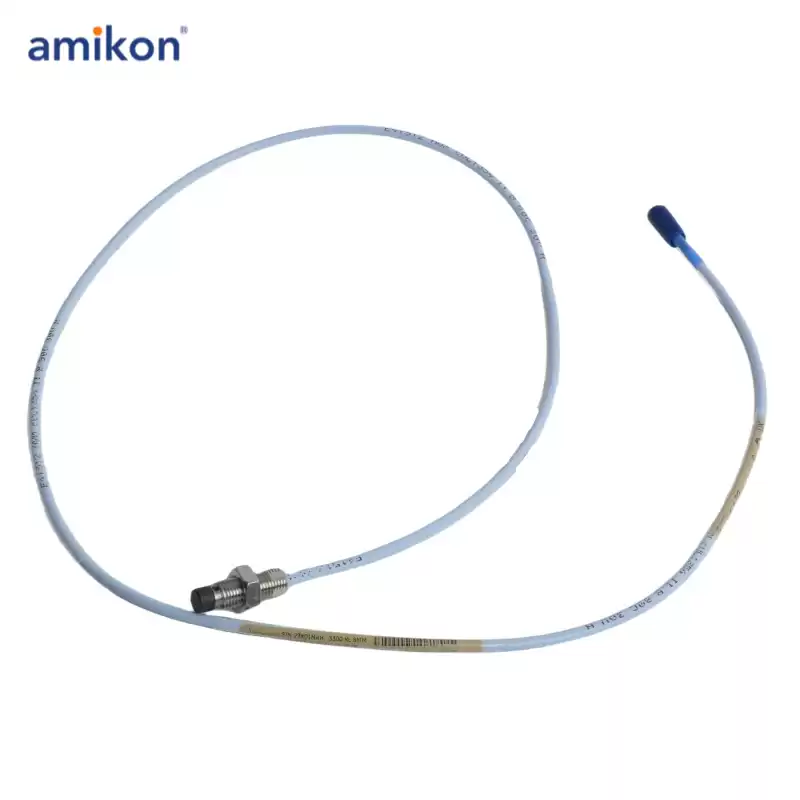

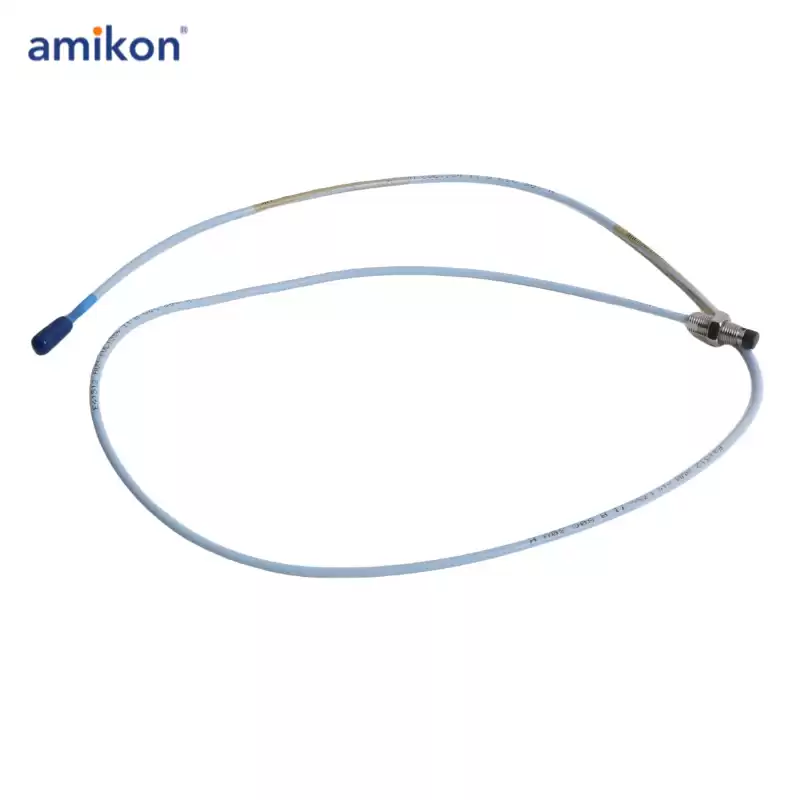

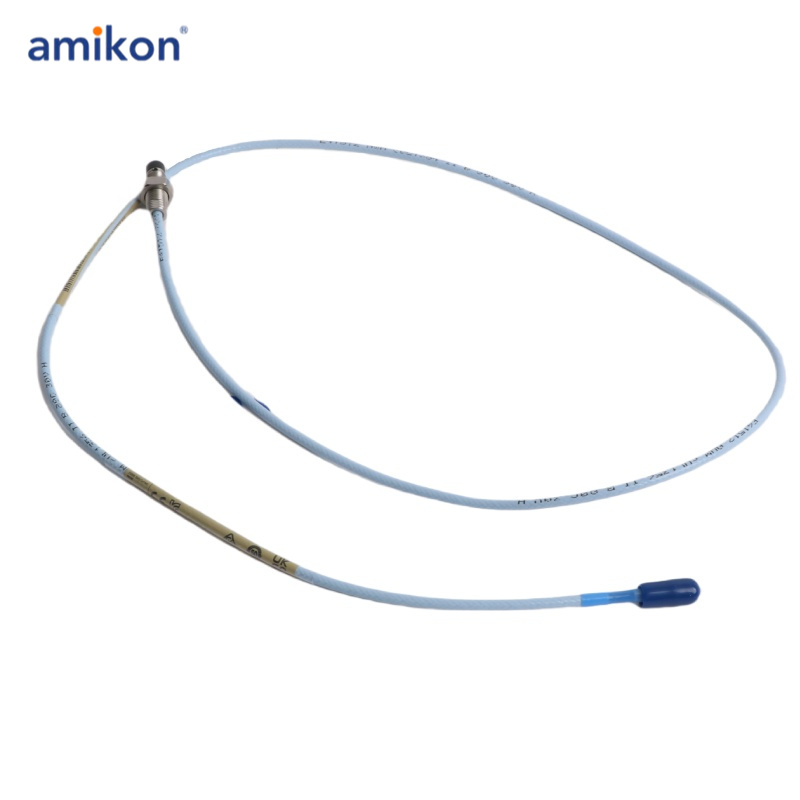

330101-00-57-10-02-05 Bently Nevada Proximity Probes

Manufacturer

Bently Nevada

Product type

Proximity Probes

Product No.

330101-00-57-10-02-05

Made in

U.S.A

Place of shipment

Xiamen

Tariff Code

8537101190

The 3300 XL probe and extension cable also reflect improvements over previous designs. A patented TipLoc* molding method provides a more robust bond between the probe tip and the probe body. The probe’s cable incorporates a patented CableLoc* design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.
You can also order 3300 XL 8 mm probes and extension cables with an optional FluidLoc* cable option. This option prevents oil and other liquids from leaking out of the machine through the cable’s interior.

Probe Pressure:
3300 XL 8 mm probes are
designed to seal differential
pressure between the probe tip
and case. The probe sealing
material consists of a Viton®
O-ring. Probes are not pressure
tested prior to shipment. Contact
our custom design department if
you require a test of the pressure
seal for your application.

Environmental Limits
Probe Temperature Range
Operating and Storage
Temperature
Standard
Probe: -51 °C to +177 °C (-60 °F to +350°F)
Extended Temperature Range Probe:
-51 °C to +218 °C (-60 °F to
+425°F) for the probe tip; -51 °C to
+260 °C (-60 °F to +500 °F) for the probe cable and connector.
