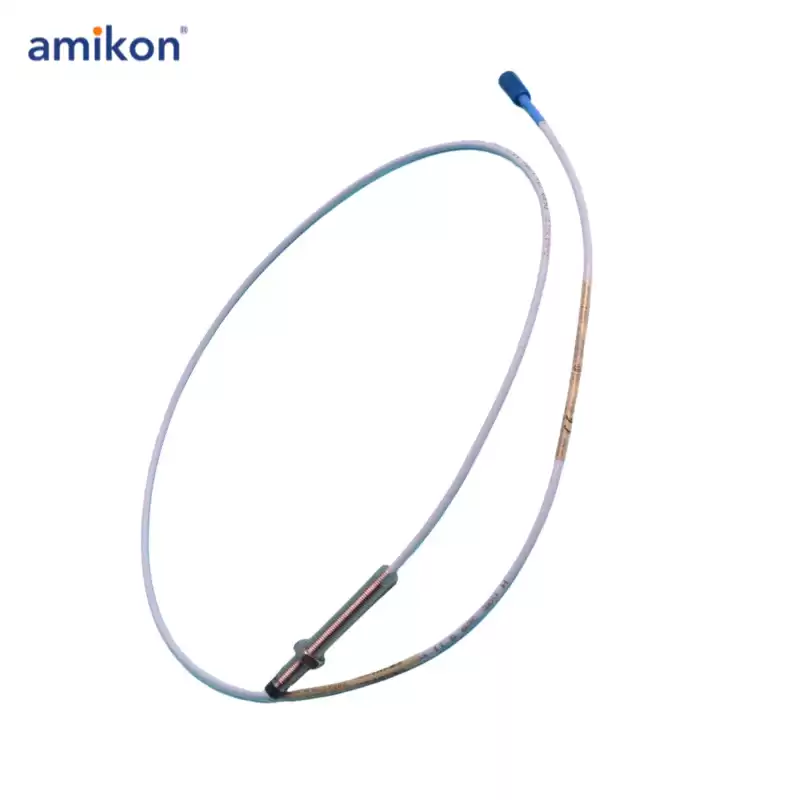

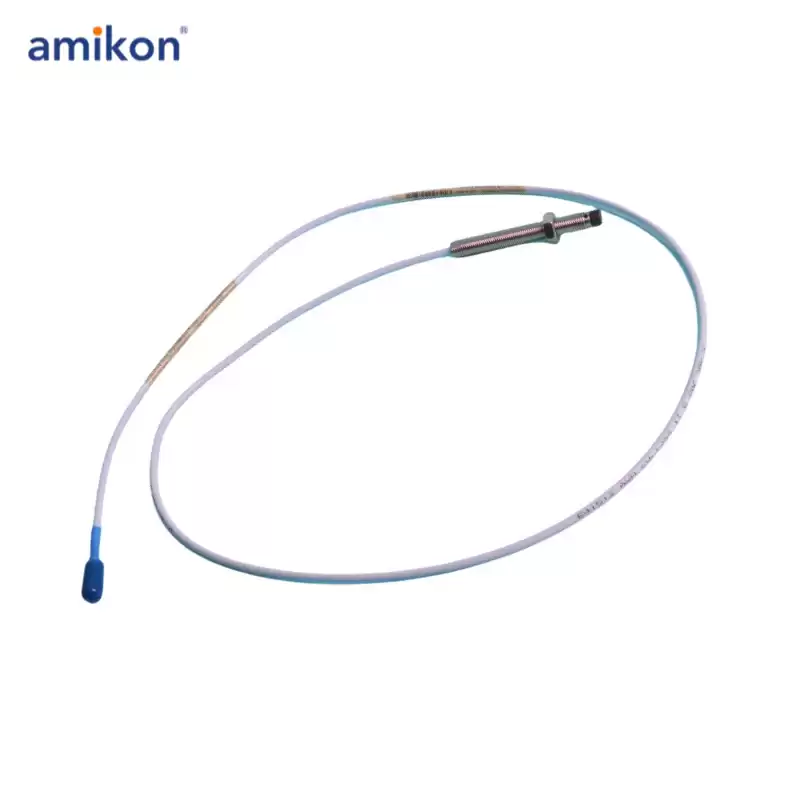

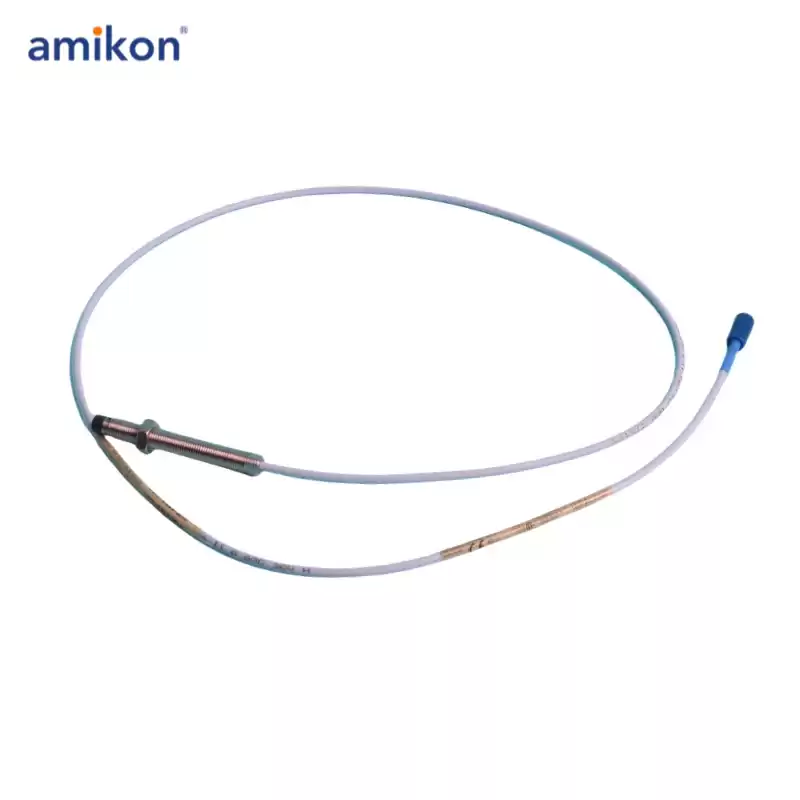

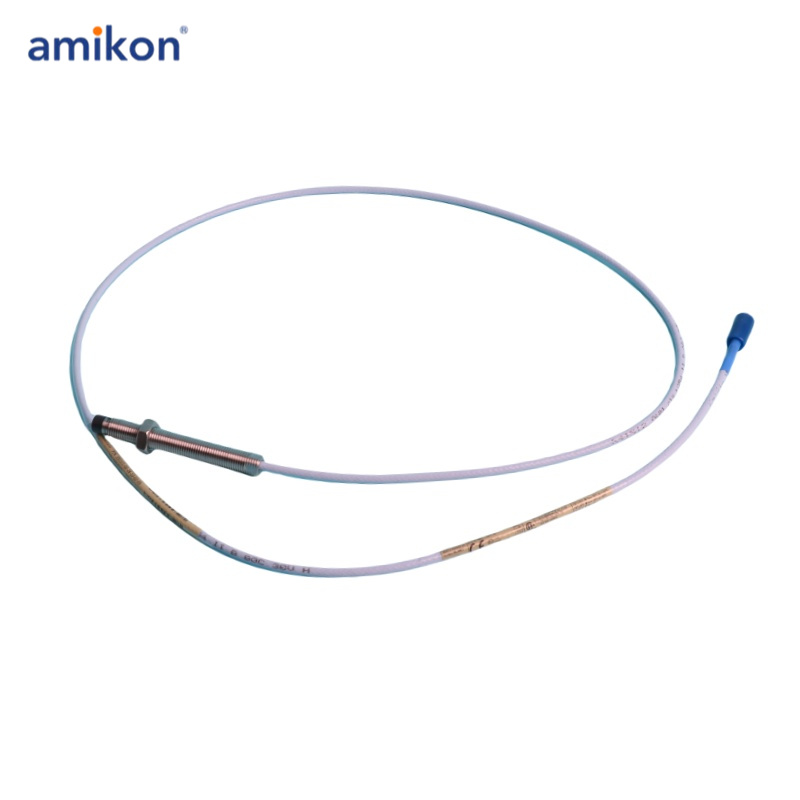

330101-02-12-10-02-05 | Bently Nevada Proximity Probes

Probe Temperature Range
Operating and Storage Temperature
Standard Probe:
-52°C to +177°C (-62°F to+350°F)
Extended Temperature Range Probe:
-52°C to +218°C (-62°F to
+425°F) for the probe tip; -51°C to +260°C (-60°F to+500°F) for the probe cable and connector.

Probe Pressure
 3300 XL 8 mm probes are designed to seal differential pressure between the probe tip and case. The probe sealing material consists of a Viton® O ring. Probes are not pressure tested prior to shipment. Contact our custom design department if you require a test of the pressure seal for your application.

The 330101-02-12-10-02-05 3300 XL 8 mm Proximity Transducer System consists of:
One 3300 XL 8 mm probe,
One 3300 XL extension cable, and
One 3300 XL Proximitor Sensor.

The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static(position) and dynamic (vibration) values. The system’s primary applications are vibration and positionmeasurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

The 330101-02-12-10-02-05 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also
fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm
proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating
the need to match or bench calibrate individual components.

Each 330101-02-12-10-02-05 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer system
components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
