The 3300 XL 8 mm Proximity Transducer System includes:
A 3300 XL 8 mm probe,
A 3300 XL extension cable, and
A 3300 XL Proximitor* sensor.
This system provides an output voltage proportional to the distance between the probe tip and the observed target surface. It can measure both static (position) and dynamic (vibration) values. The system is primarily used for measuring vibration and position on fluid-film bearing machinery, as well as for Keyphasor* reference and speed measurements.
The 3300 XL 8 mm system delivers the most advanced performance available in eddy-current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system fully complies with the American Petroleum Institute (API) 670 standard (4th edition), including mechanical configuration, linear range, accuracy, and temperature stability.
All 3300 XL 8 mm proximity transducer systems provide this high level of performance, with full interchangeability of probes, extension cables, and Proximitor sensors without the need for individual component matching or calibration.

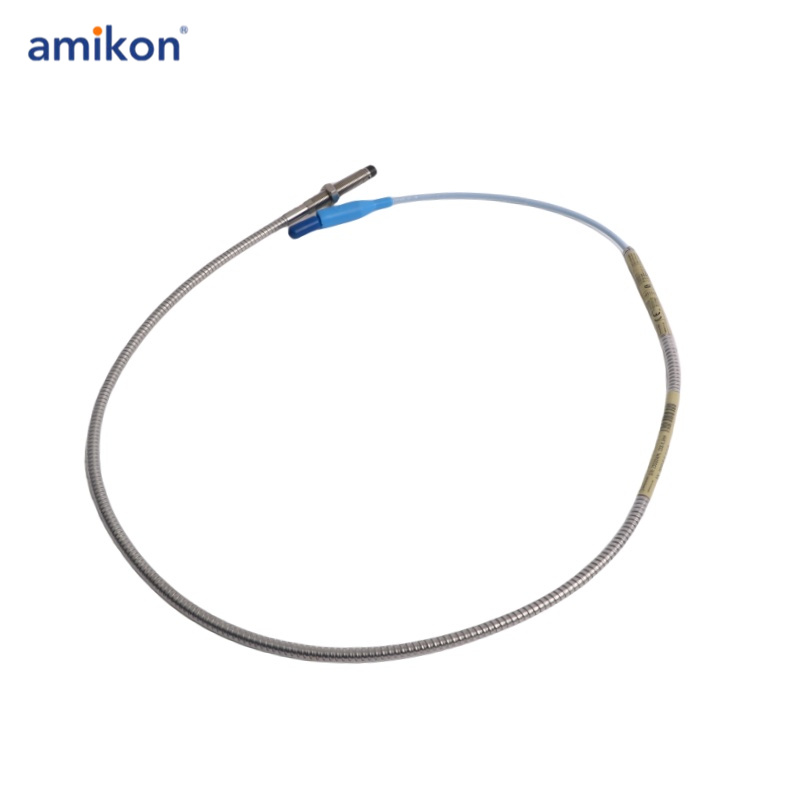

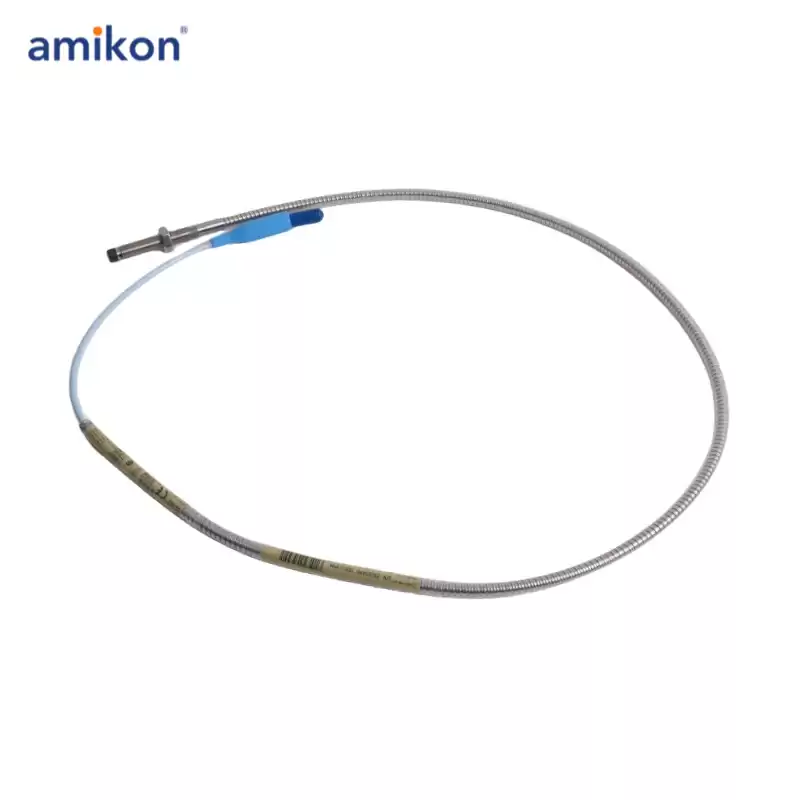

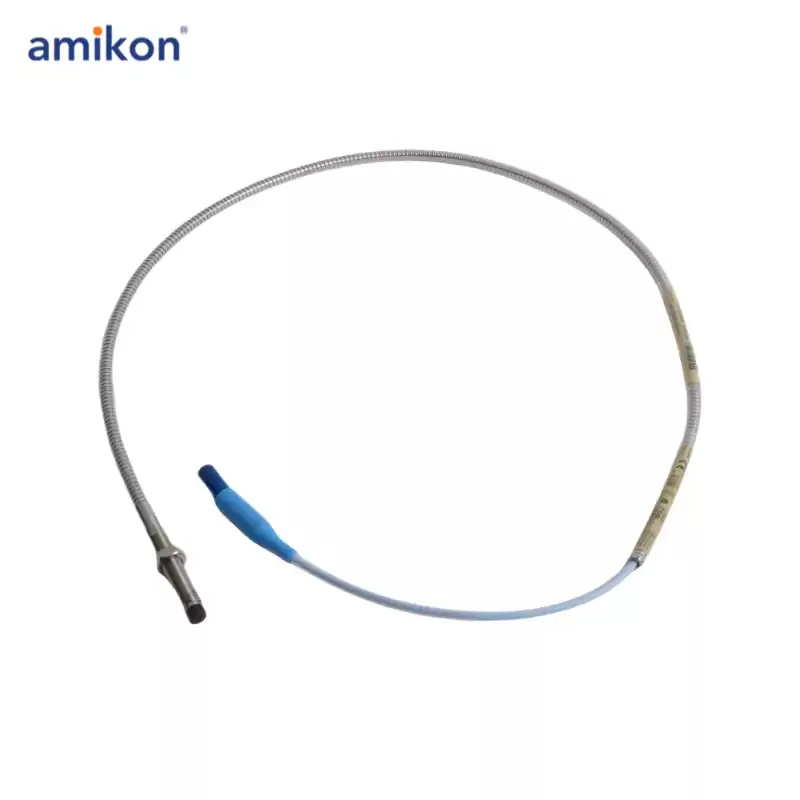

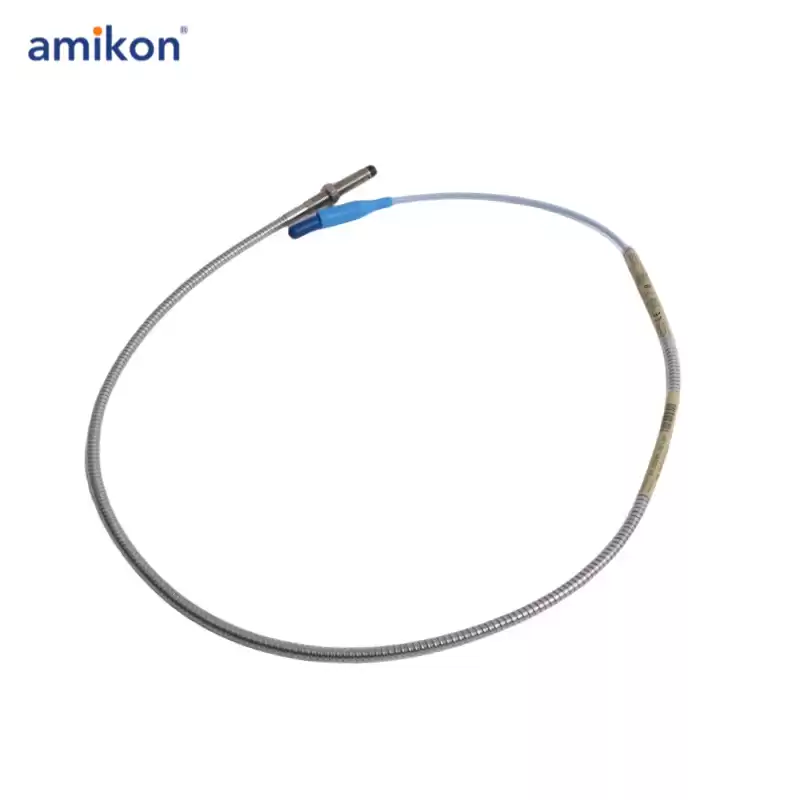

Proximity Probe and Extension Cable
The 3300 XL probe and extension cable also reflect improvements over previous designs. A patented TipLoc* molding method provides a more robust bond between the probe tip and the probe body.
The probe’s cable incorporates a patented CableLoc* design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.
You can also order 3300 XL 8 mm probes and extension cables with an optional FluidLoc* cable option. This option prevents oil and other liquids from leaking out of the machine through the cable’s interior.
