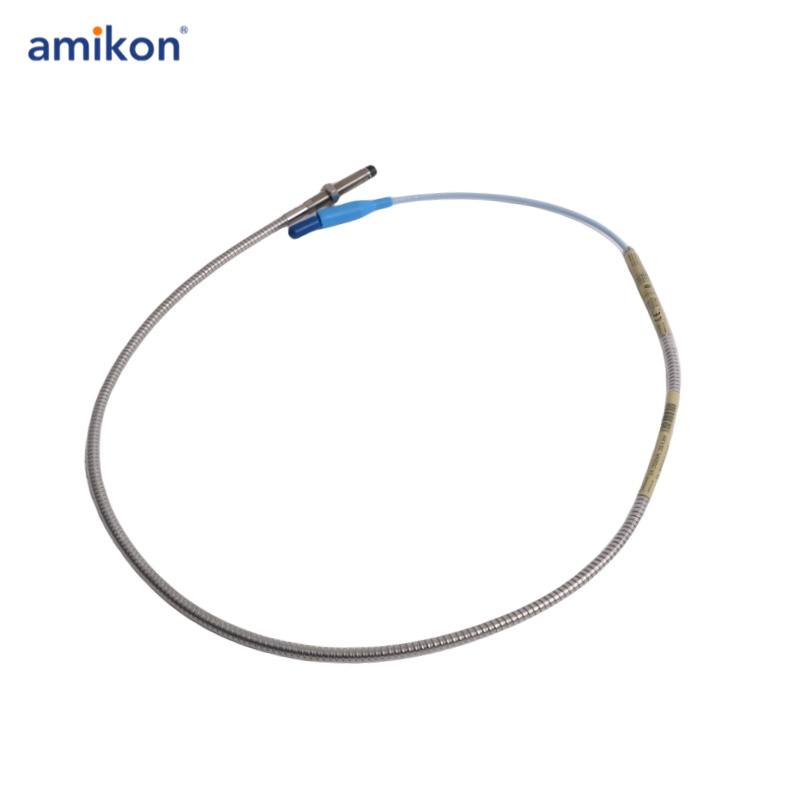

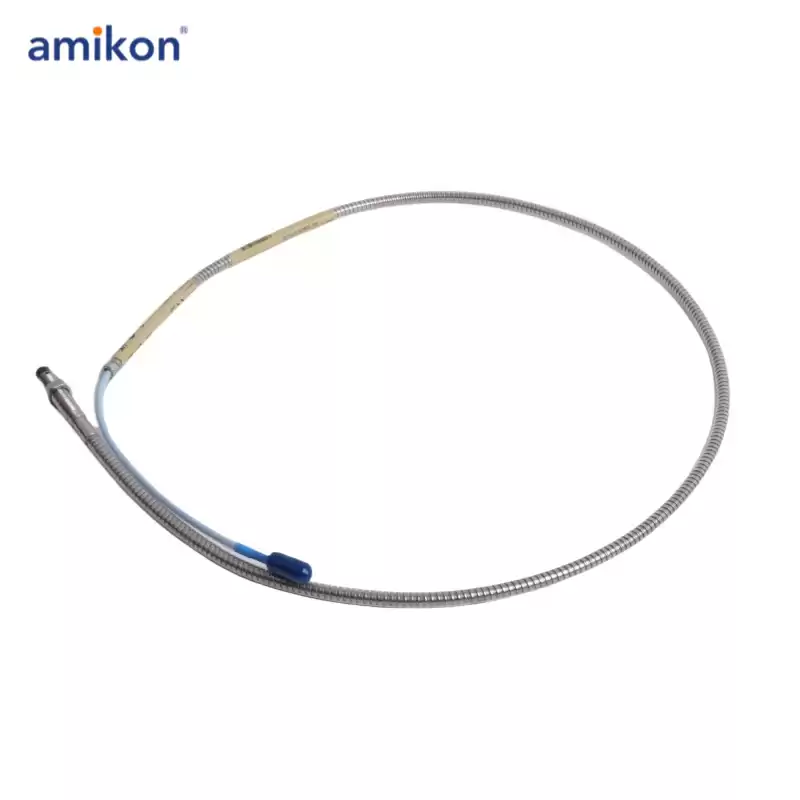

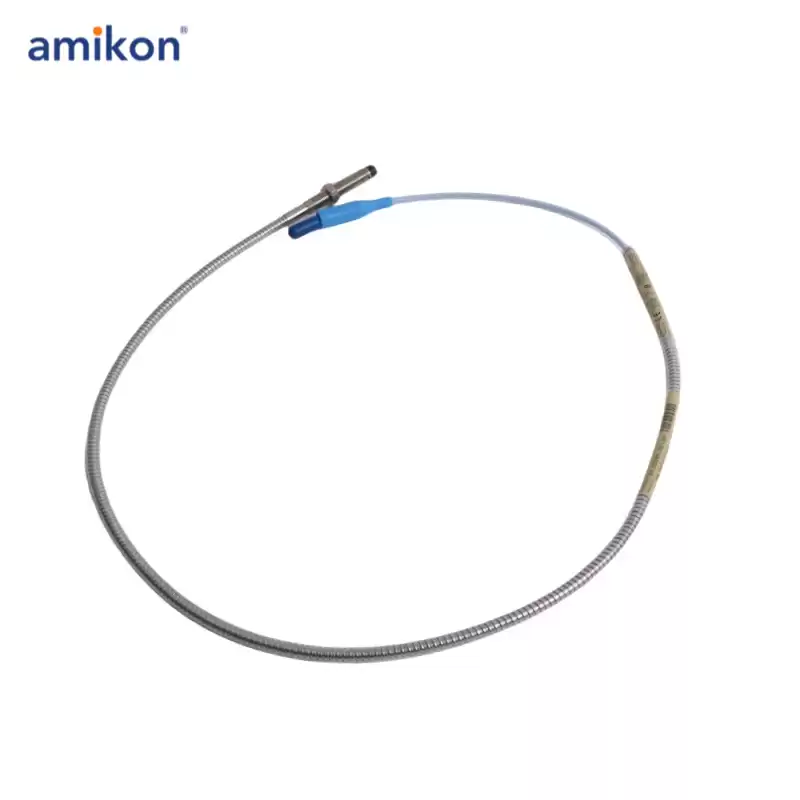

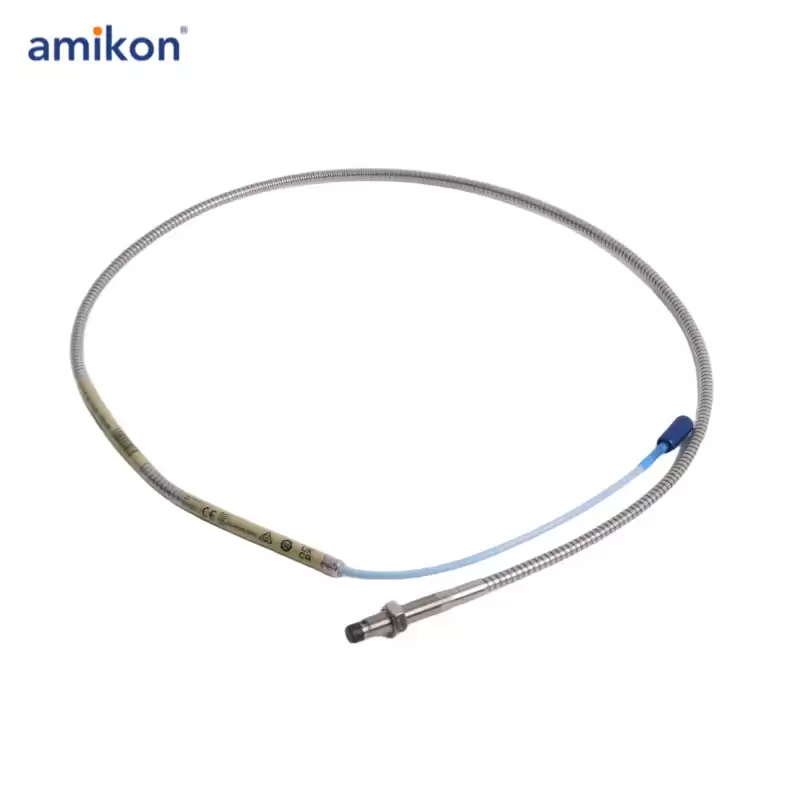

Part Number: 330102-00-28-10-02-00
Model: 3300 NSv Proximity Probes
Brand: Bently Nevada
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
|
Model
|
330908
|
3300 NSv Probe, 3/8-24 UNF thread, without armor
|
|
Unthreaded Length Option
|
10
|
1.0 in.
|
|
Overall Case Length Option
|
55
|
5.5 in.
|
|
Total Length Option
|
05
|
0.5 metre (20 in)
|
|
Connector and Cable-Type Option
|
02
|
Miniature coaxial ClickLoc connector, standard cable
|
|
Agency Approval Option
|
00
|
Not required
|
The 3300 XL 11 mm Proximity Transducer System consists of:
-3300 XL 11 mm probe
-3300 XL 11 mm extension cable
-3300 XL 11 mm Proximitor Sensor
The 330102-00-28-10-02-00 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System. It is primarily used in the following applications where the longer linear range is necessary:
-Axial (thrust) position measurements
-Ramp differential expansion measurements on steam turbines
-Rod position or rod drop measurements on reciprocating compressors
-Tachometer and zero speed measurements
-Phase reference (Keyphasor) signals
The 330102-00-28-10-02-00 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11mm Transducer System as a compatible option is required. Existing 3300 Monitoring Systems may need a modification.
