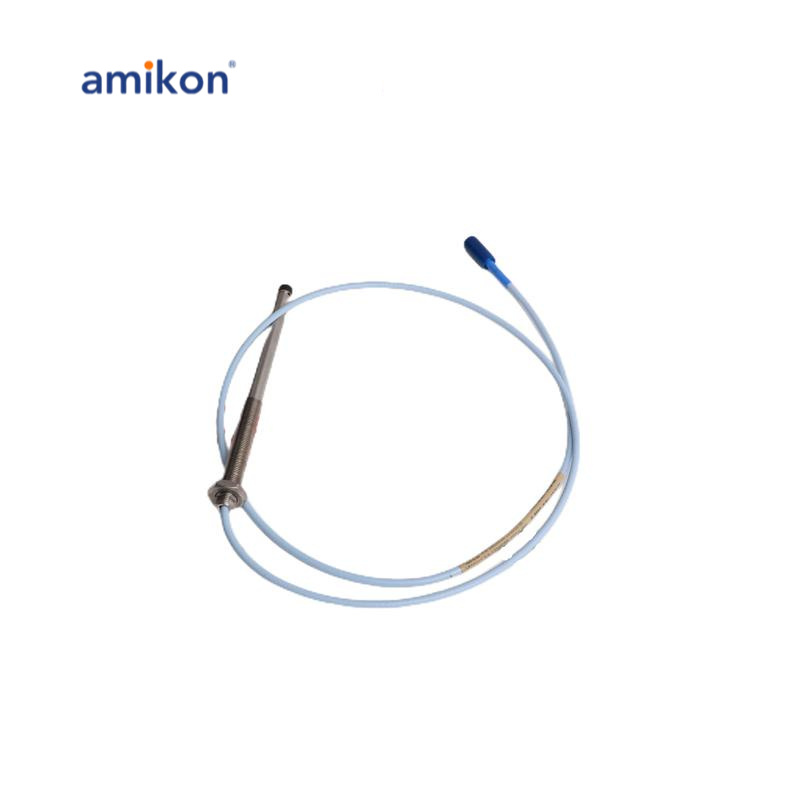

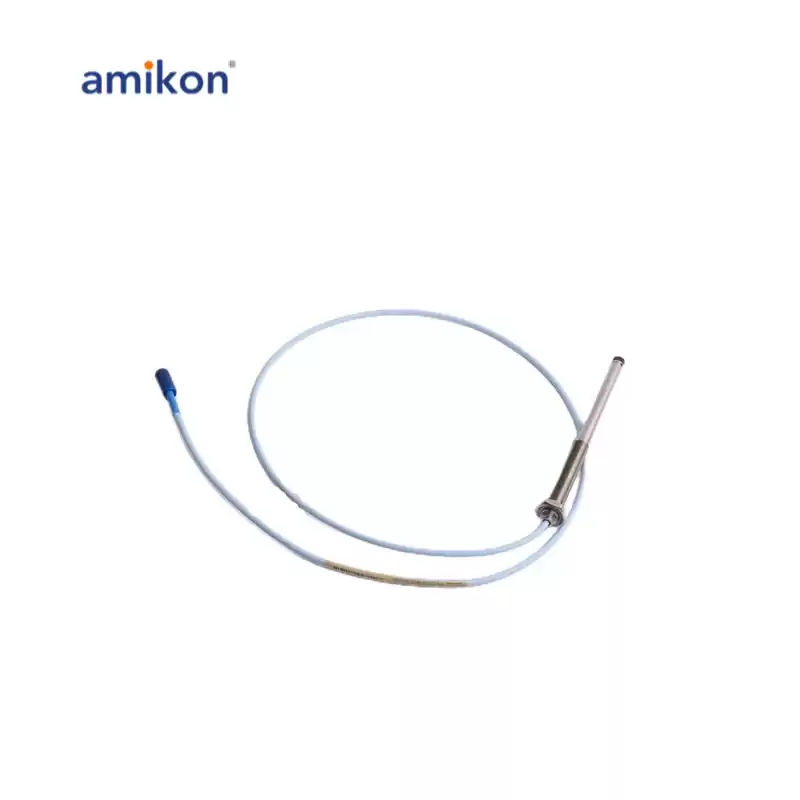

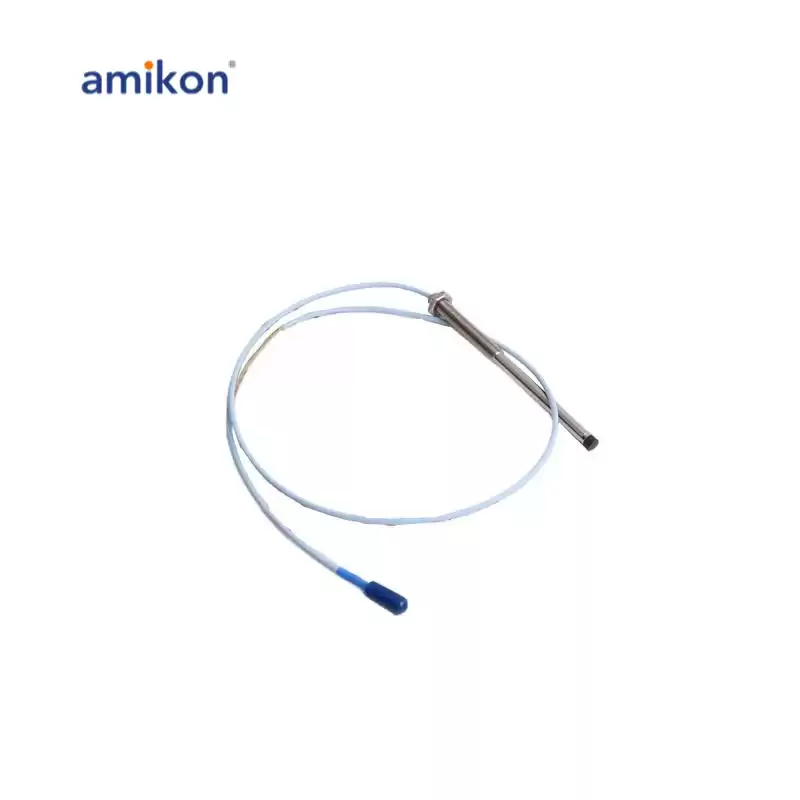

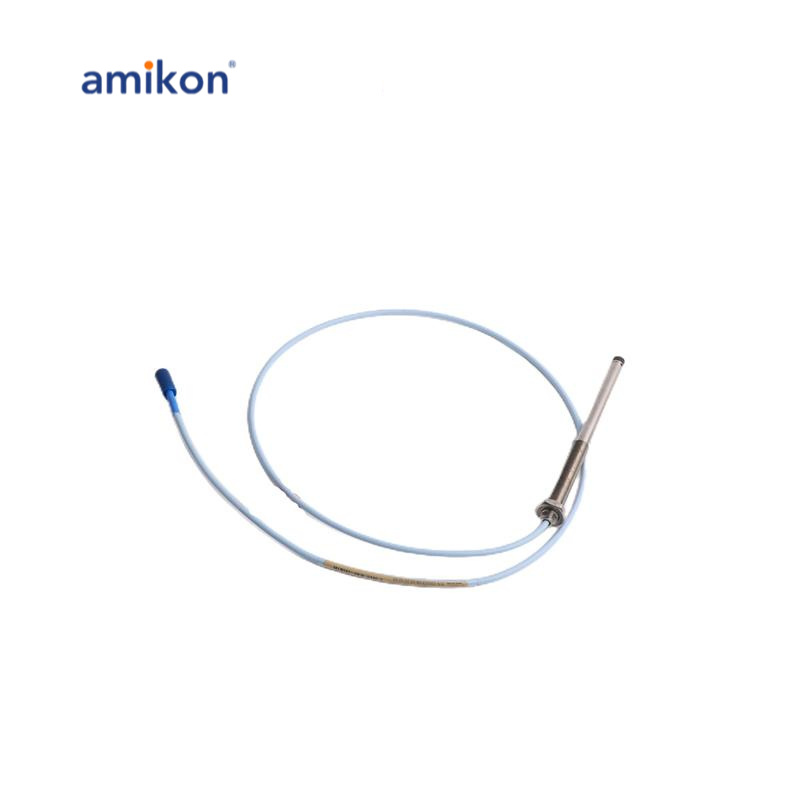

Manufacturer : Bently Nevada
Product No. : 330103-00-10-10-02-CN
Product type : 3300 XL 8 mm Proximity Probes
Unthreaded Length Option : 00 = 0 mm
Overall Case Length Option : 10 = 100mm
Total Length Option : 10 = 1.0 metre (3.3 feet)
Connector and Cable-Type Option : 02 = Miniature coaxial ClickLocTM connector, standard cable
Agency Approval Option : CN = Approvals country specific (CN Approvals Option Quick Reference Guide and Field Notification Letter are in the download section)
Probe Tip Material: Polyphenylene sulfide (PPS).
Probe Case Material: AISI 303 or 304 stainless steel (SST).
Probe Pressure: 3300 XL 8 mm probes are designed to seal differential pressure between the probe tip and case. The probe sealing material consists of a Viton® O-ring. Probes are not pressure tested prior to shipment. Contact our custom design department if you require a test of the pressure seal for your application.
Weight : 0.323 Kg
The 3300 XL probe and extension cable incorporate several key improvements over previous designs, ensuring greater durability and reliability. One notable enhancement is the use of a patented TipLoc™ molding method, which creates a stronger, more secure bond between the probe tip and the probe body, improving the overall robustness of the system.
Additionally, the probe’s cable features an innovative CableLoc™ design, which provides an impressive 330 N (75 lbf) pull strength at the connection point where the cable attaches to the probe tip. This enhanced attachment ensures a more secure and reliable connection, reducing the risk of cable-related failures.
For environments where exposure to liquids is a concern, the 3300 XL 8 mm probes and extension cables can be ordered with an optional FluidLoc® cable. This specialized cable option prevents the leakage of oil or other liquids through the cable’s interior, offering an extra layer of protection in industrial applications where liquid ingress could pose a risk. These design advancements ensure the 3300 XL probe and its accessories maintain high performance and reliability in challenging environments.
