Attribute
|
Details
|
|
Manufacturer
|
Bently Nevada
|
|
Product No.
|
330104-00-05-10-02-CN
|
|
Product Type
|

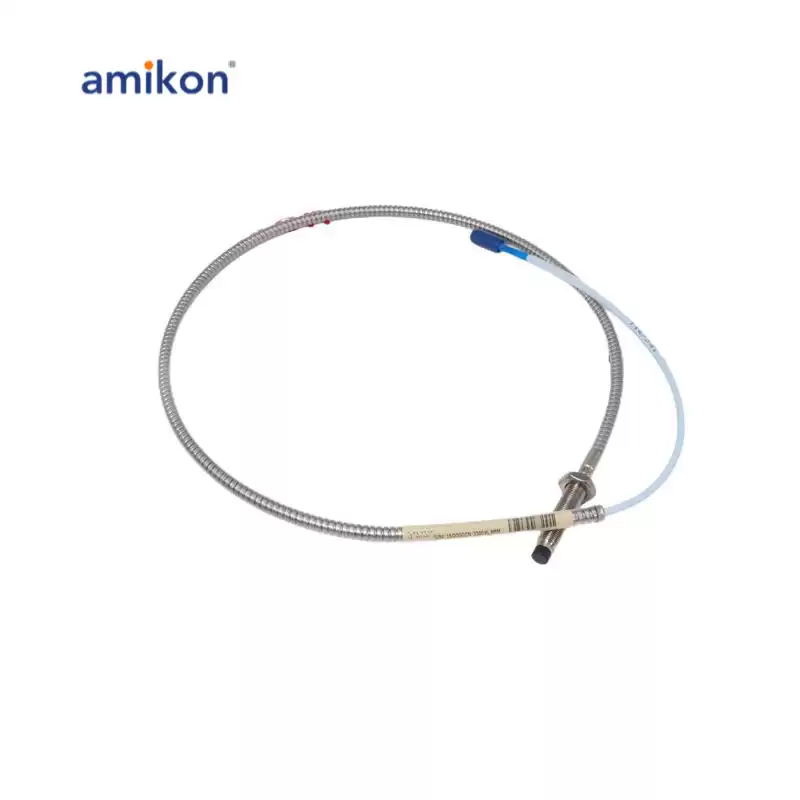

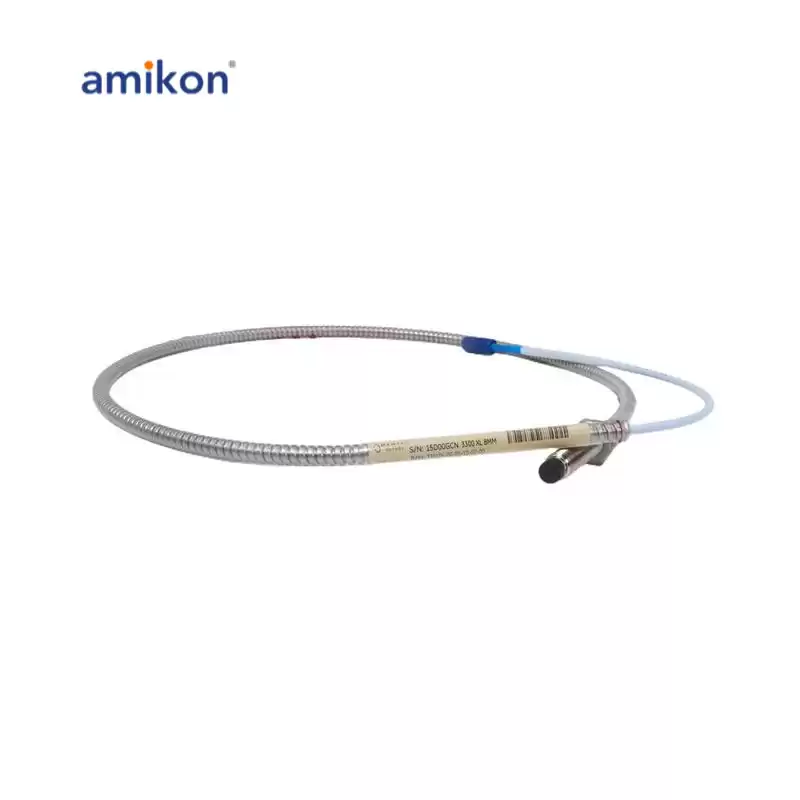

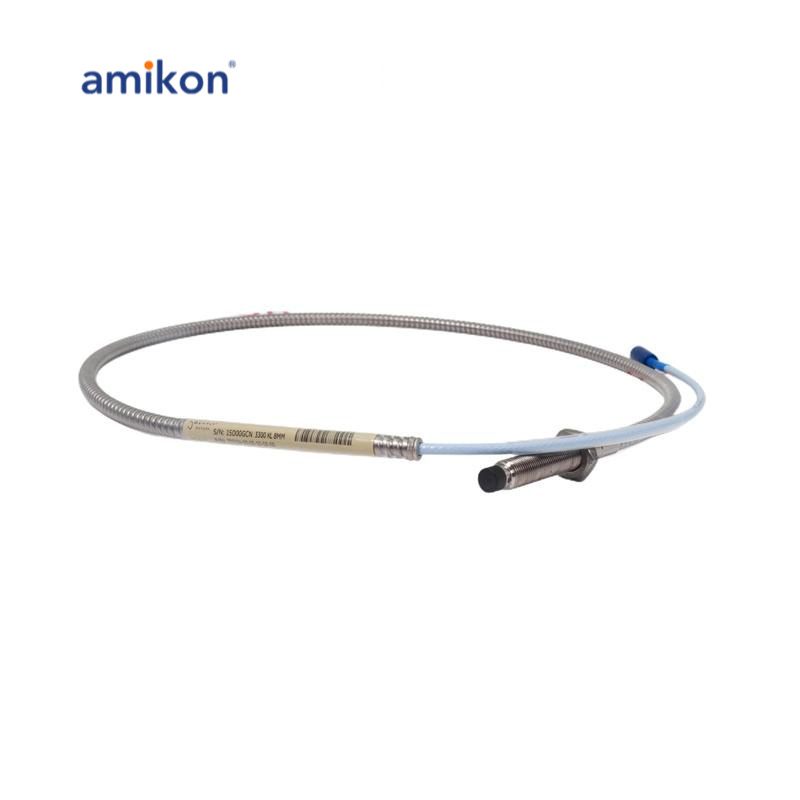

3300 XL 8 mm Proximity Probes
|
|
Unthreaded Length Option
|
00 - 0mm
|
|
Overall Case Length Option
|
05 - 50mm
|
|
Total Length Option
|
10 - 1.0 metre (3.3 feet)
|
|
Connector and Cable-Type Option
|
02 - Miniature coaxial ClickLocTM connector, standard cable
|
The 3300 XL 8 mm proximity sensor system consists of the following components:
-3300 XL 8 mm probe
-3300 XL extension cable
-3300 XL Proximitor* sensor
The output voltage of the system is proportional to the distance between the probe tip and the observed point. It can measure both static (position) and dynamic (vibration) values, with the output voltage being proportional to the distance between the probe tip and the observed conductive surface.
The system is primarily used for vibration and position measurements on fluid-film bearing machinery, as well as for Keyphasor* reference and speed measurements.
The 3300 XL 8 mm system features advanced performance in eddy current proximity sensor technology. The standard 3300 XL 8 mm 5-meter system fully complies with the American Petroleum Institute (API) 670 Standard (4th Edition), including mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity sensor systems meet this performance level and support full interchangeability of probes, extension cables, and Proximitor sensors without the need for matching or calibrating individual components.
Each 3300 XL 8 mm sensor system component is backward compatible and can be interchanged with other non-XL 3300 series 5 mm and 8 mm sensor system components. This compatibility includes the use of 3300 5 mm probes in applications where an 8 mm probe may be too large to fit existing installation spaces.
