Product Model
|
330104-00-07-10-02-00
|
Product Parameters
|

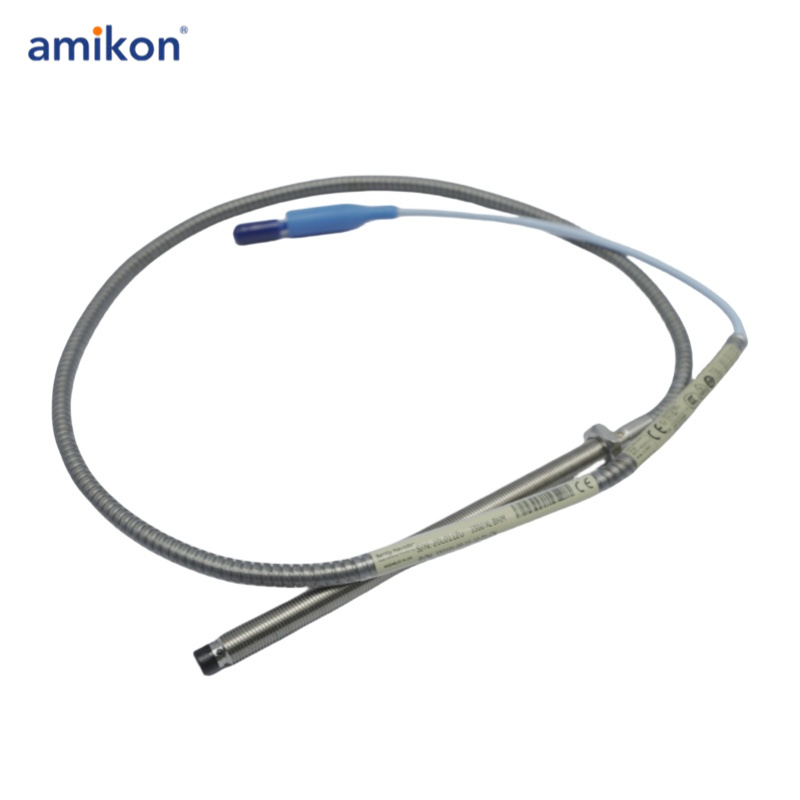

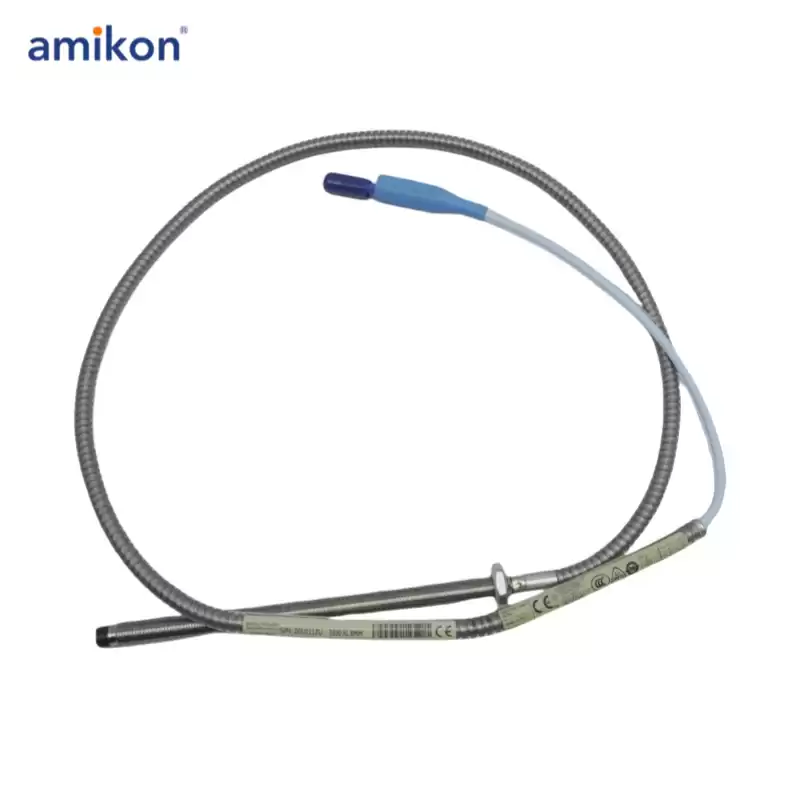

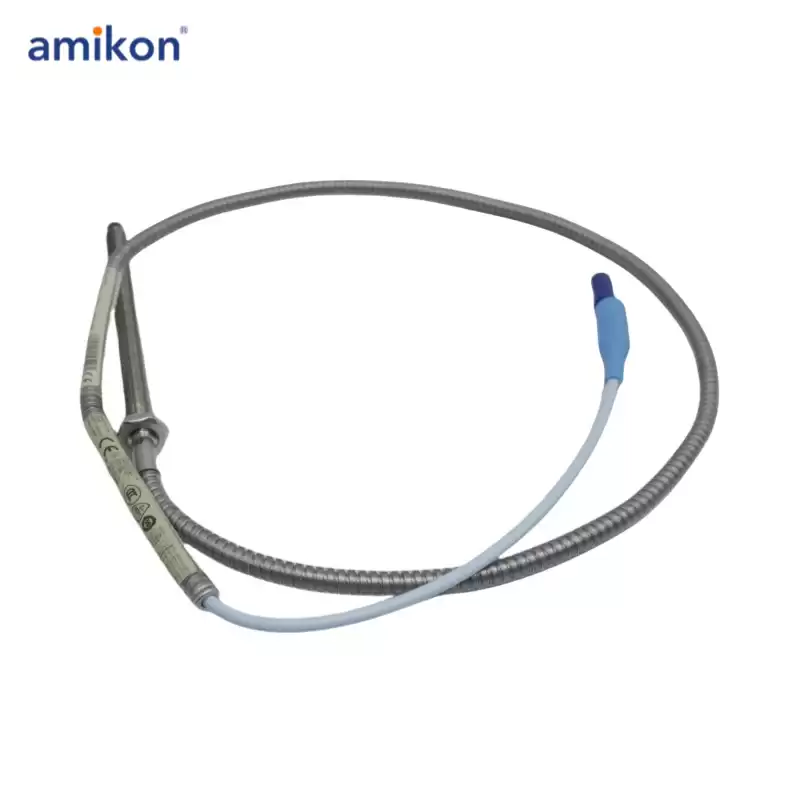

3300 XL 8 mm Proximity Probes
|
|
Tariff Code
|
330104-00-07-10-02-00
|
Country of origin
|
USA
|
|
Place of shipment
|
Xia Men
|
Estimated Shipping Size
|
12cm x 2.44 cm x6.2cm
|
|
Manufacturer
|
Bently nevada
|
weight
|
0.1KG
|
The 330104-00-07-10-02-00 3300 XL probe and extension cable also reflect improvements over previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The probe’s cable incorporates a patented CableLoc design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.
You can also order 330104-00-07-10-02-00 3300 XL 8 mm probes and extension cables with an optional FluidLoc cable option. This option prevents oil and other liquids from leaking out of the machine through the cable’s interior.
Unthreaded Length Option : 00 = 0 mm
Overall Case Length Option : 05 = 50 mm
Total Length Option : 05 = 0.5 metre (1.6 feet)
Connector and Cable-Type Option : 02 = Miniature coaxial ClickLocTM connector, standard cable
Agency Approval Option : CN = Approvals country specific (CN Approvals Option Quick Reference Guide and Field Notification Letter are in the download section)
Probe Tip Material: Polyphenylene sulfide (PPS).
Probe Case Material: AISI 303 or 304 stainless steel (SST).
