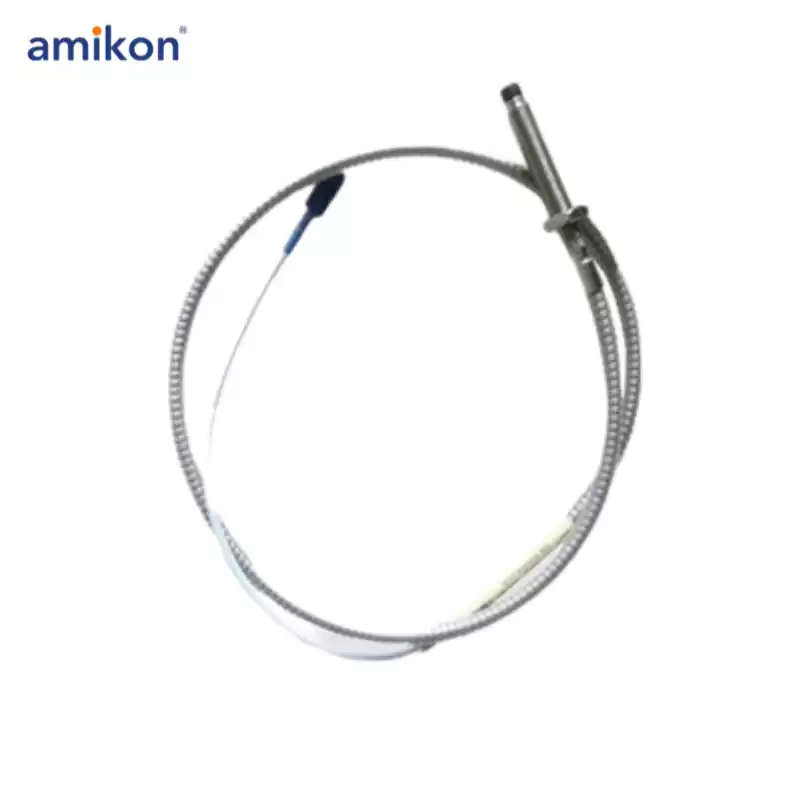

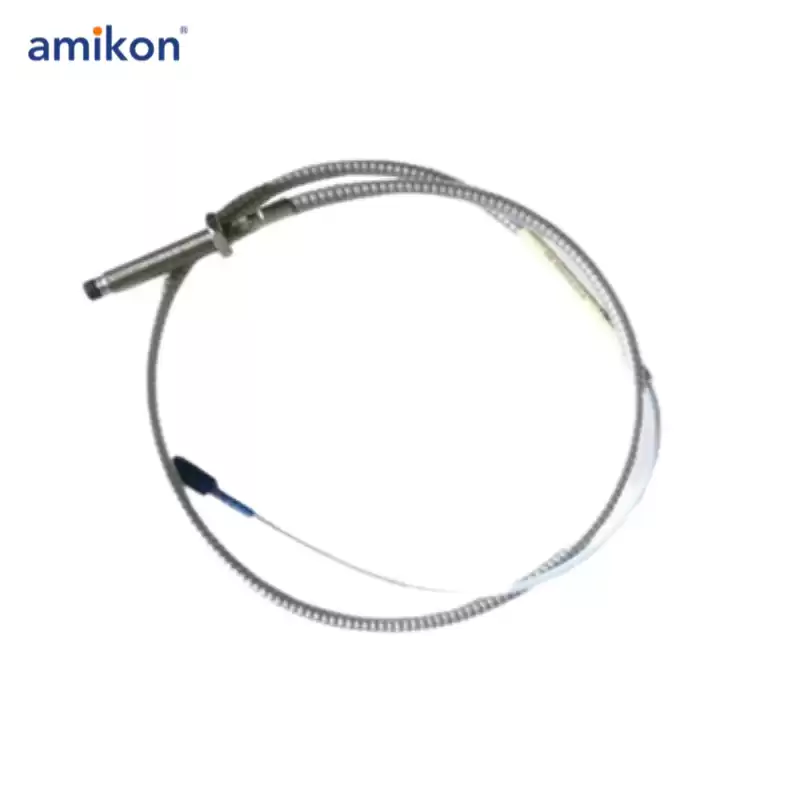

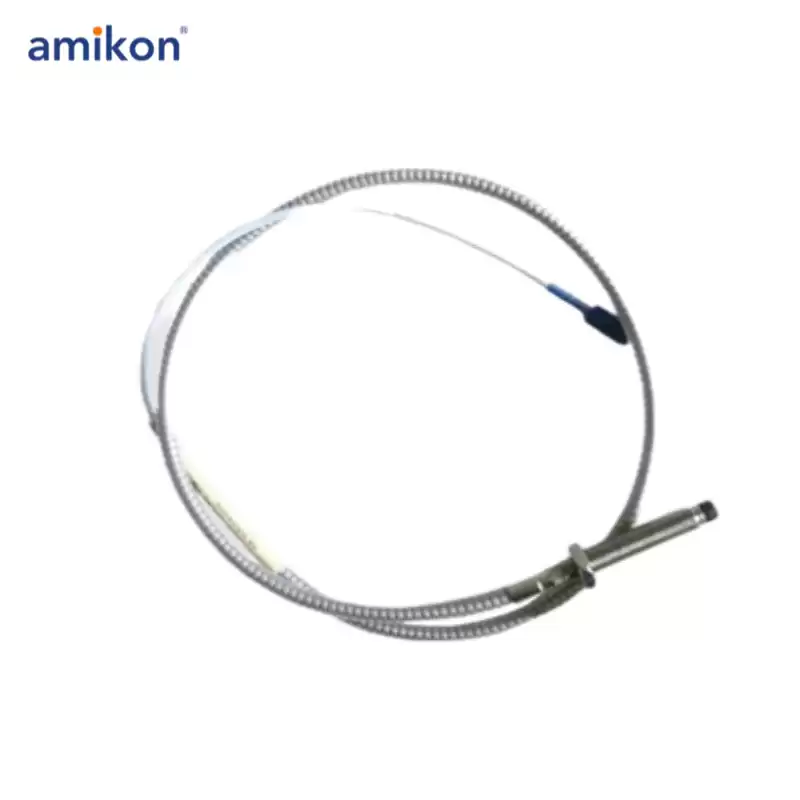

330104-00-08-05-02-00 Bently Nevada Proximity Probes

3300 XL 8 mm Proximity Probes:

330101 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor2

330102 3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor2

Part Number-AXX-BXX-CXX-DXX-EXX

A: Unthreaded Length Option

Note: Unthreaded length must be at least 0.8 inches less than the case length.

Order in increments of 0.1 in
Length configurations:
Maximum unthreaded length: 8.8 in
Minimum unthreaded length: 0.0 in
Example: 0 4 = 0.4 in

B: Overall Case Length Option
Order in increments of 0.1 in
Threaded length configurations:
Maximum case length: 9.6 in
Minimum case length: 0.8 in
Example: 2 4 = 2.4 in

C: Total Length Option
0 5 0.5 metre (1.6 feet)
1 0 1.0 metre (3.3 feet)
1 5 1.5 metre (4.9 feet)
2 0 2.0 metres (6.6 feet)
3 0 3.0 metres (9.8 feet)
5 0 5.0 metres (16.4 feet)
9 0 9.0 metres (29.5 feet)

Notes: 3-metre length option is only available on 330101 probes, and are designed for use with the 9-metre Proximitor sensor only. 5-metre probes are designed for use with the 5-metre Proximitor sensor only.
