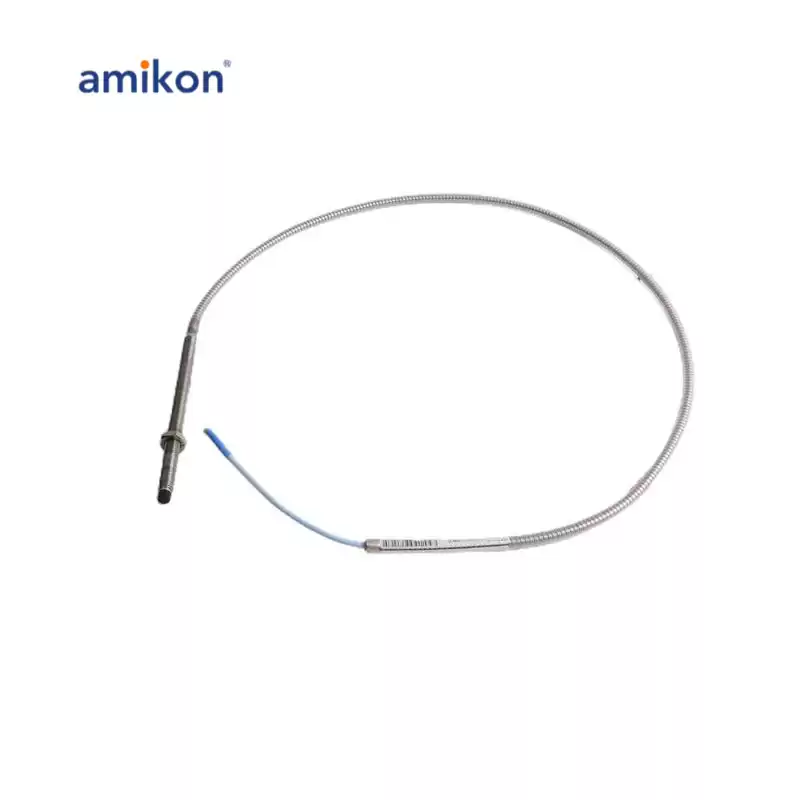

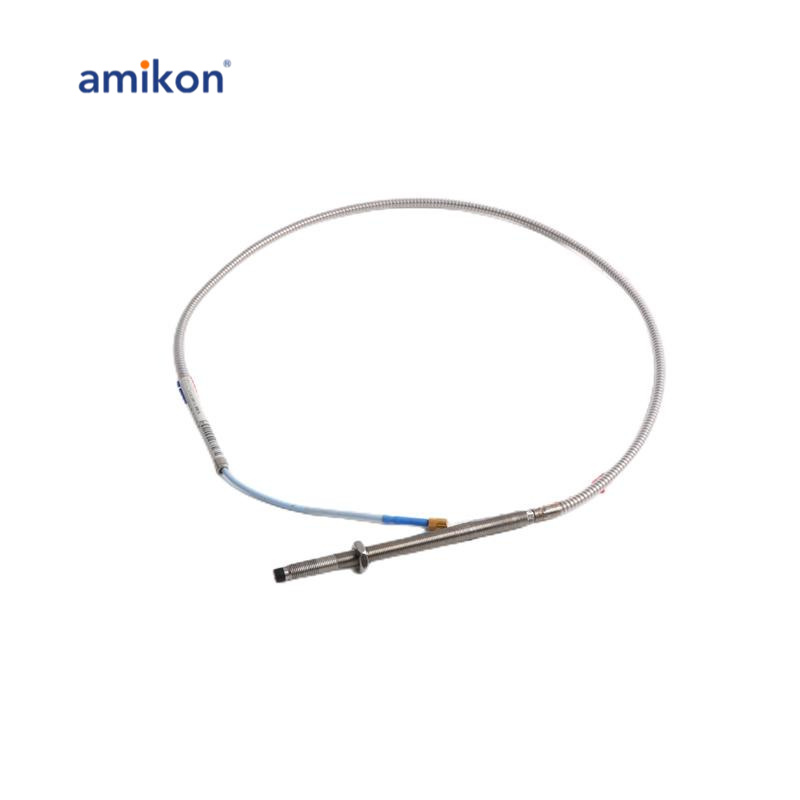

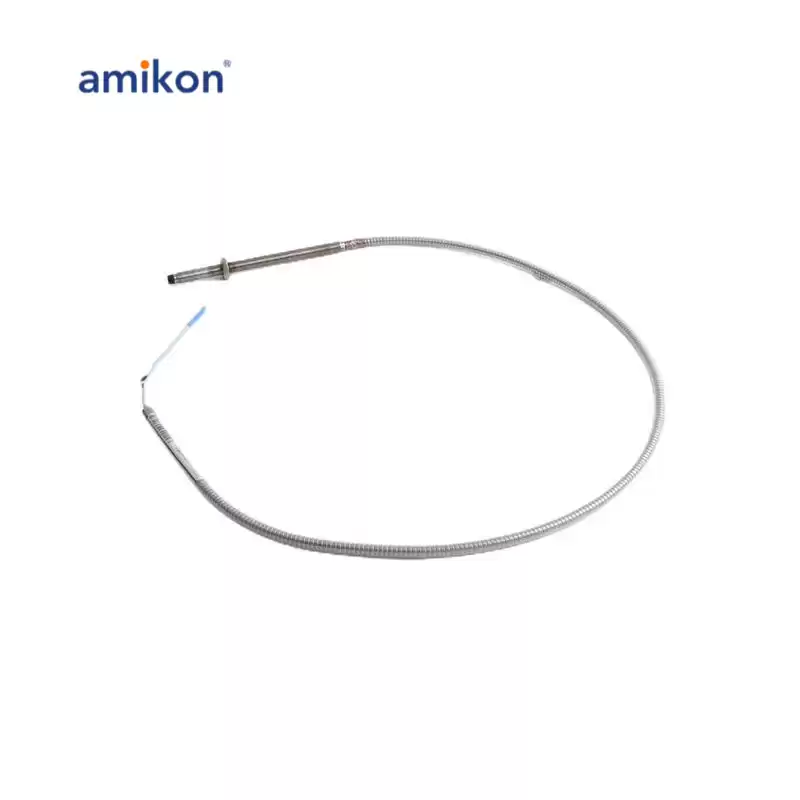

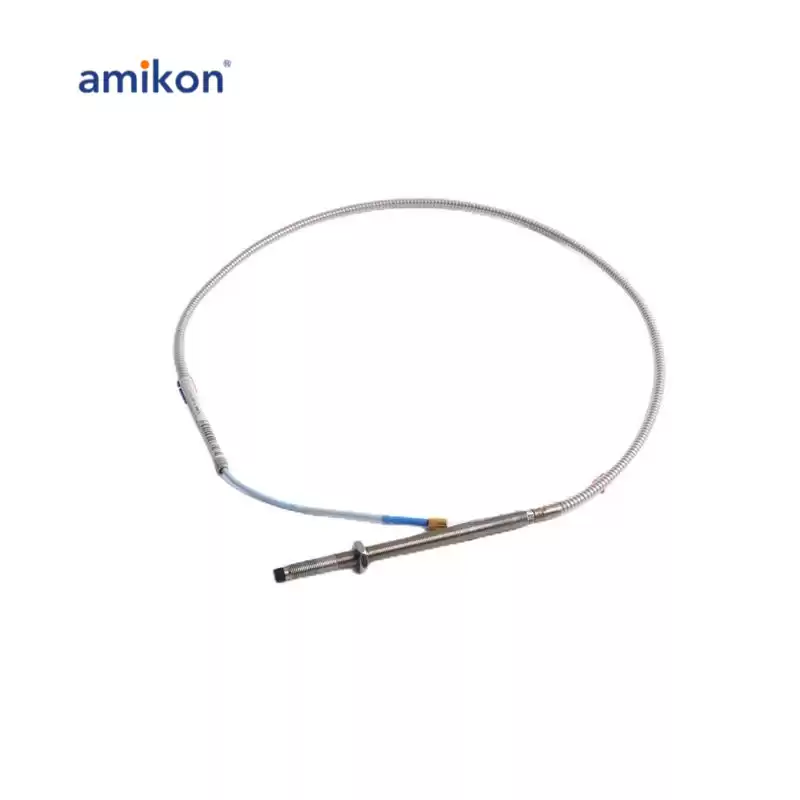

330104-00-15-10-02-00 Bently Nevada Proximity Probes

The 3300 XL probe, extension cable, and Proximitor sensor are equipped with corrosion-resistant, gold-plated ClickLoc connectors that require only finger-tight torque. The connectors will "click" when tightened, ensuring a secure connection. These connectors feature a specially-engineered locking mechanism that prevents loosening, and no special tools are required for installation or removal. Additionally, the probe and extension cable benefit from improvements over previous designs, including a patented TipLoc* molding method that creates a more robust bond between the probe tip and body. The probe's cable also incorporates a patented CableLoc* design, providing 330 N (75 lbf) of pull strength to securely attach the probe cable and probe tip.

Product Number: 330104-00-15-10-02-00
Model: 3300 XL 8 mm Proximity Probes
Manufacturer: Bently Nevada

Model and Suffix Codes
Model: 330104 - 3300 XL 8 mm Proximity Probes
Unthreaded Length Option: 00 - 0 mm
Overall Case Length Option: 15 - 150 mm
Total Length Option: 10 - 1.0 metre (3.3 feet)
Connector and Cable Type Option: 02 - Miniature coaxial ClickLoc connector with connector protector, standard cable
Agency Approval Option: 00 - Not required
