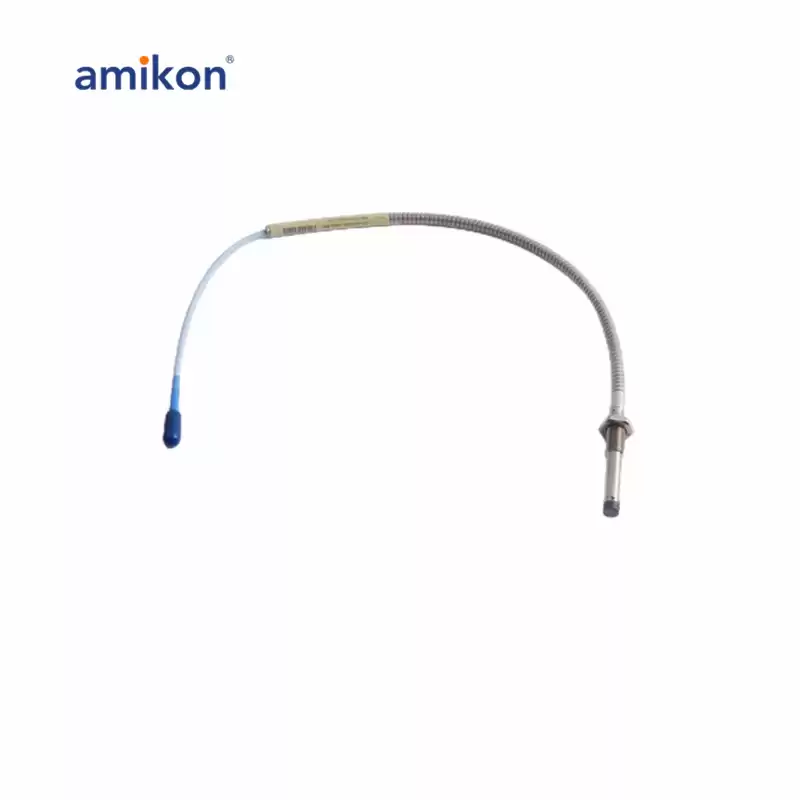

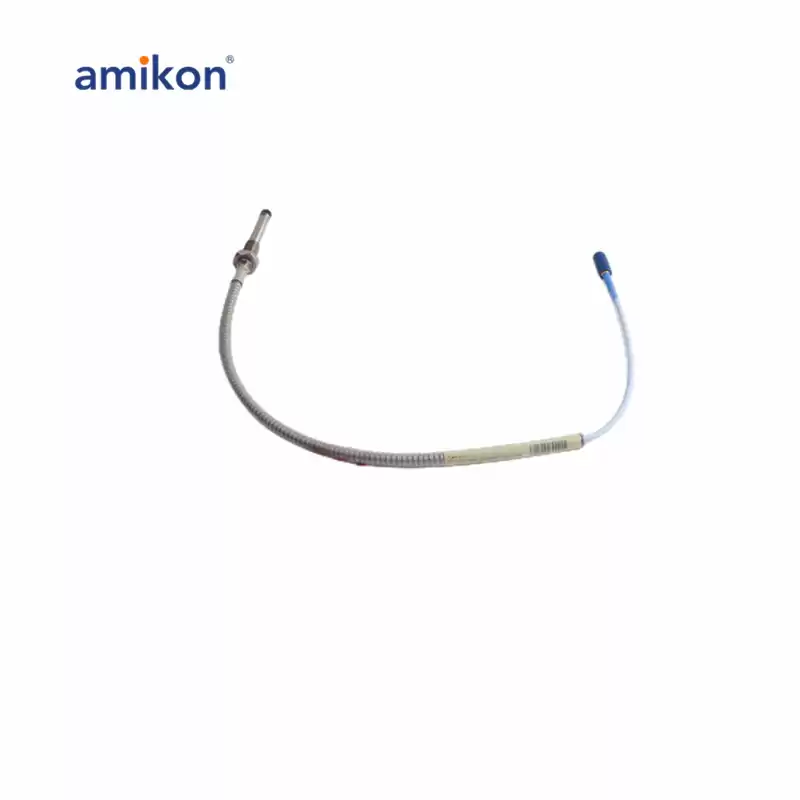

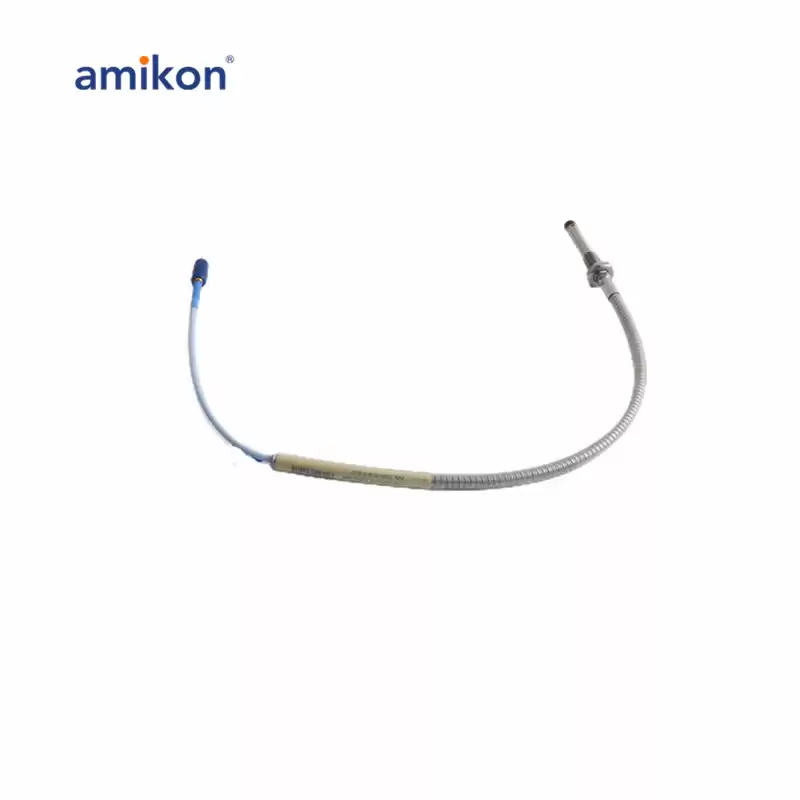

Connector protectors effectively prevent most liquids from entering ClickLoc connectors, ensuring the electrical signal remains unaffected. The 330104-00-16-10-02-CN probe, part of the 3300 XL 8mm series, features a robust design that can withstand a tensile force of up to 330 Newtons (75 pounds) at the probe end. Additionally, the probe and extension cable can be ordered with the optional FluidLoc® cable, which prevents oil or other liquids from leaking from inside the cable to the machine's exterior. Furthermore, the 3300 NSv probe and extension cable are mechanically and electrically compatible with Bently Nevada’s earlier 3300 RAM proximity probes and extension cables, offering seamle.
The 3300 XL 8 mm Proximity Transducer System consists of:
• One 3300 XL 8 mm probe,
• One 3300 XL extension cable, and
• One 3300 XL Proximitor* Sensor
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-metre system also fully complies with the American Petroleum Institute’s (API) 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes,extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Each 3300 XL 8 mm Transducer System component is backward-compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
