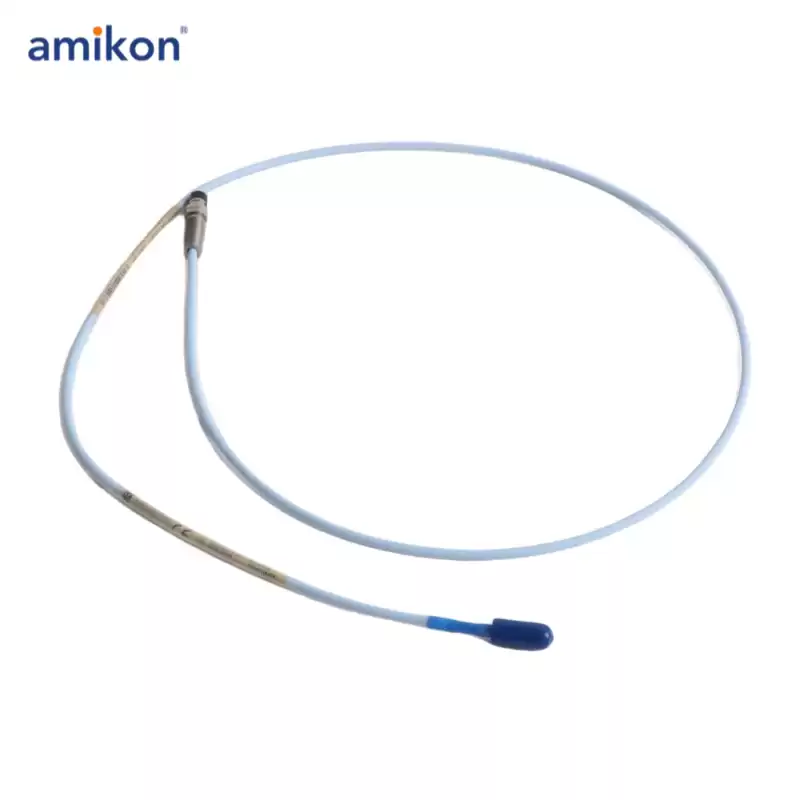

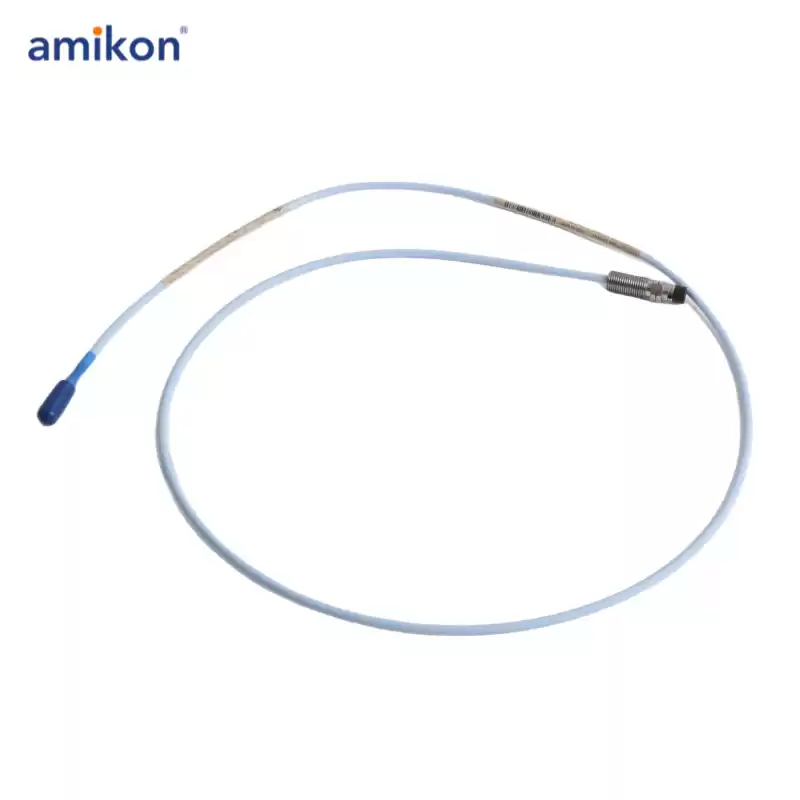

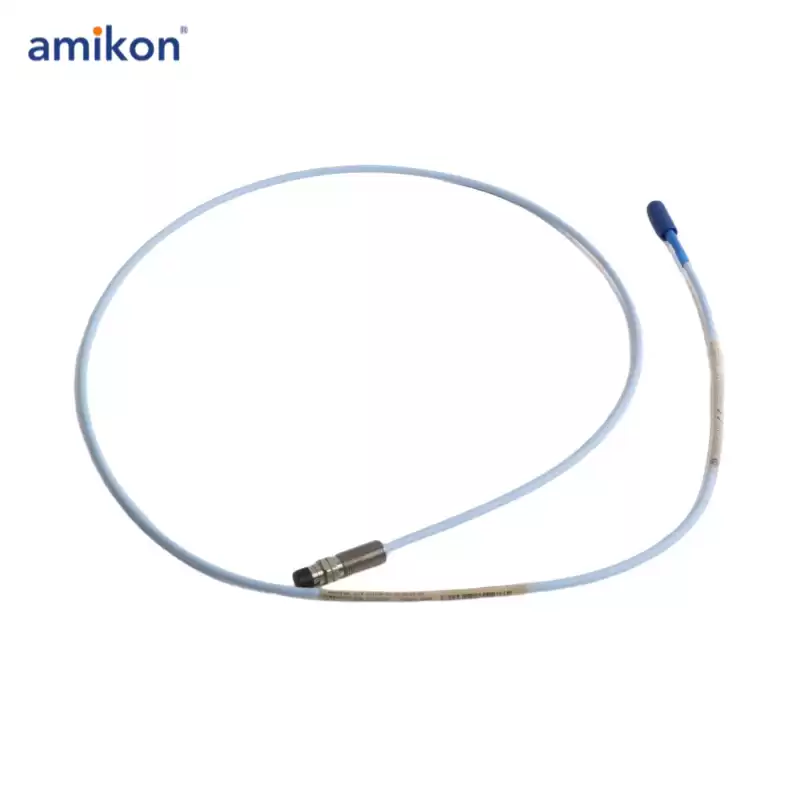

330106-00-06-10-02-CN Bently Nevada 3300 XL 8 mm Reverse Mount

Manufacturer

Bently Nevada

Product type

3300 XL 8 mm Reverse Mount

Product No.

330106-00-06-10-02-CN

Made in

U.S.A

Place of shipment

Xiamen

Tariff Code

8537101190

The system provides an output voltage that is directly proportional to the distance between the probe tip and the
observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as
Keyphasor reference and speed measurements.

The 330106-00-06-10-02-CN 3300 XL 8 mm system delivers the most advanced
performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also
fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of
performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Specification：
Total Length Option : 10 = 1.0 metre (3.3 feet)
Connector Option : 02 = Miniature ClickLocTM coaxial connector
Agency Approval Option : CN = Approvals country specific  (CN Approvals Option Quick Reference Guide and Field Notification Letter are in the download section)
Probe Tip Material: Polyphenylene sulfide (PPS).
Probe Case Material: AISI 303 or 304 stainless steel (SST).
