Part Number: 330130-075-01-05

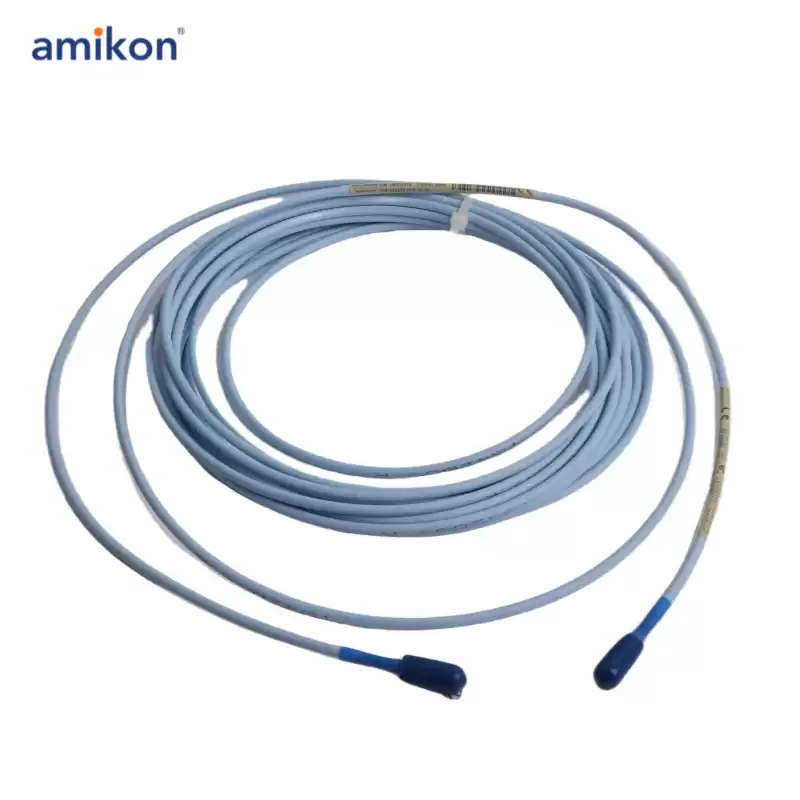

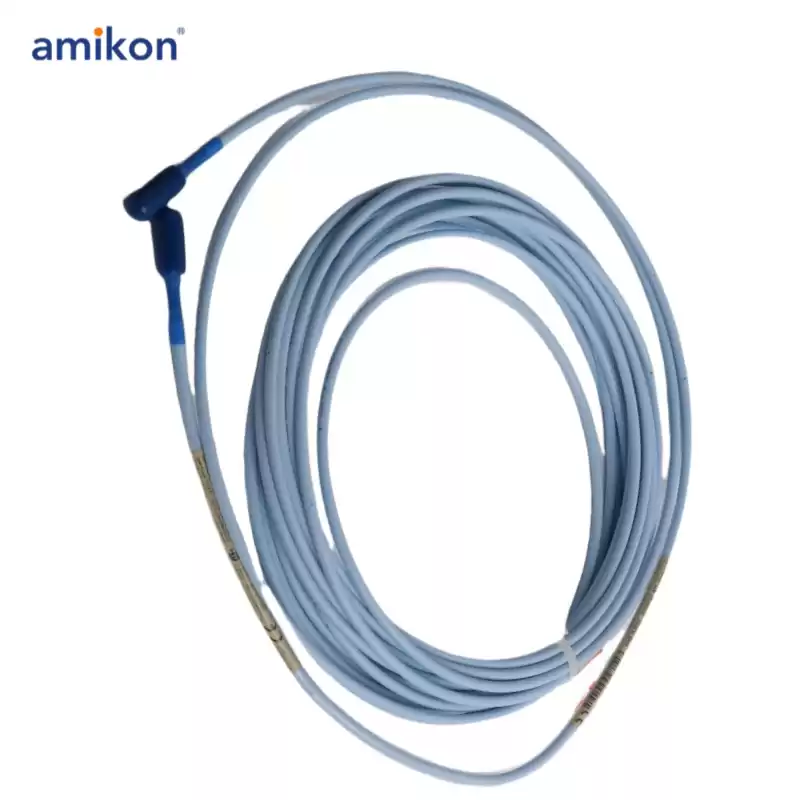

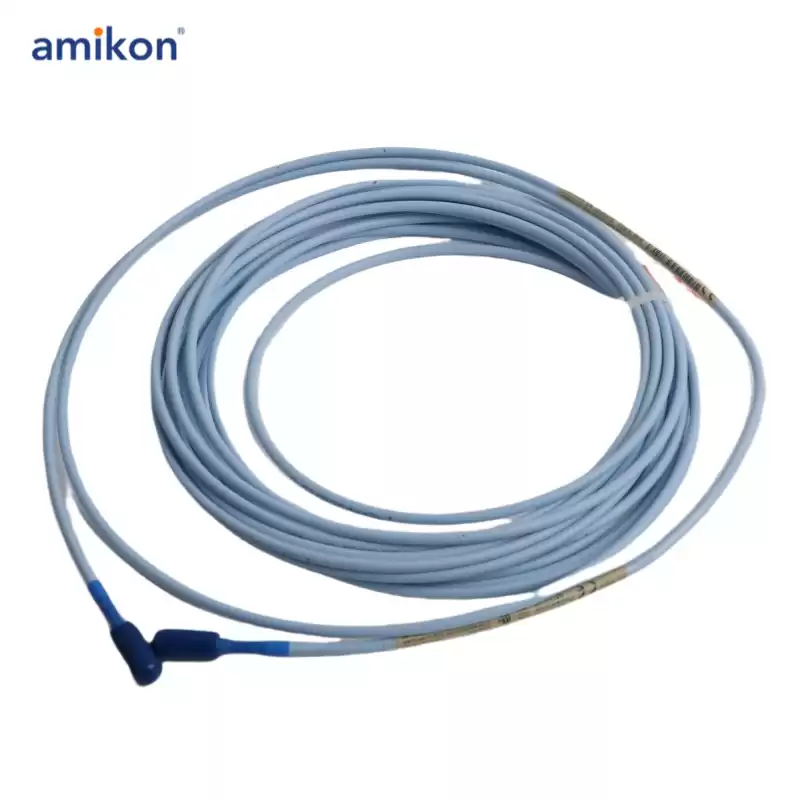

Model: 3300 XL Standard Extension Cable
Manufacturer: Bently Nevada
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
Model: 330130 - 3300 XL Standard Extension Cable
Cable Length Option: -075 - 7.5 metres (24.6 feet)
Connector Protector and Cable Option: -01 - Armored cable
Agency Approval Option: -05 - Multiple Approvals
The 3300 XL 8mm Proximity Sensor System includes
- One 3300 XL 8 mm probe,
- a 3300 XL extension cable1 , and
- a 3300 XL Proximity Sensor* Sensor.
The system provides an output voltage proportional to the distance between the probe tip and the observation point.
The system provides an output voltage proportional to the distance between the probe tip and the observed conductive surface, and can can measure both static (position) and dynamic (vibration) values. The system's Primary applications are vibration and position measurements on fluid film bearing machines, as well as Keyphasic and Keyphasor* reference and velocity measurements3.
The 3300 XL 8 mm system offers the most advanced performance of any eddy current proximity sensor.
The most advanced performance of any current proximity sensor system. The standard 3300 XL 8 mm 5 m system is also fully compliant with U.S. standards.
The system is also fully compliant with the American Petroleum Institute (API) 670 standards (4th edition), including mechanical configuration, linear range, accuracy, and temperature stability.
Temperature stability. All 3300 XL 8 mm proximity sensor systems offer this level of performance and support full interchangeability.
All 3300 XL 8 mm proximity sensor systems have this level of performance and support full interchangeability of probes,Extension cables and Proximitor sensors are fully interchangeable, eliminating the need to match or calibrate individual components.Calibrating Individual ComponentsEvery 3300 XL 8 mm Sensor System component is backwards compatible and interchangeable with other non-XL Sensor System components.Interchangeable with other non-XL 3300 series 5 mm and 8 mm sensor system assemblies system components.5 This compatibility includes the 3300 5 mm probe for the Applications where the 8 mm probe is too large for the available mounting space.
