Specification
|
Details
|
|
Part Number
|
330130-075-01-05
|
|
Manufacturer
|
Bently Nevada
|
|
Series
|
3300 XL 8mm
|
|
Condition
|
New
|
|
Availability
|
In Stock
|
|
Country of Origin
|
USA
|
|
Weight
|
0.255 Kg
|
|
Cable Length Option
|
075 = 7.5 metres (24.6 feet)
|

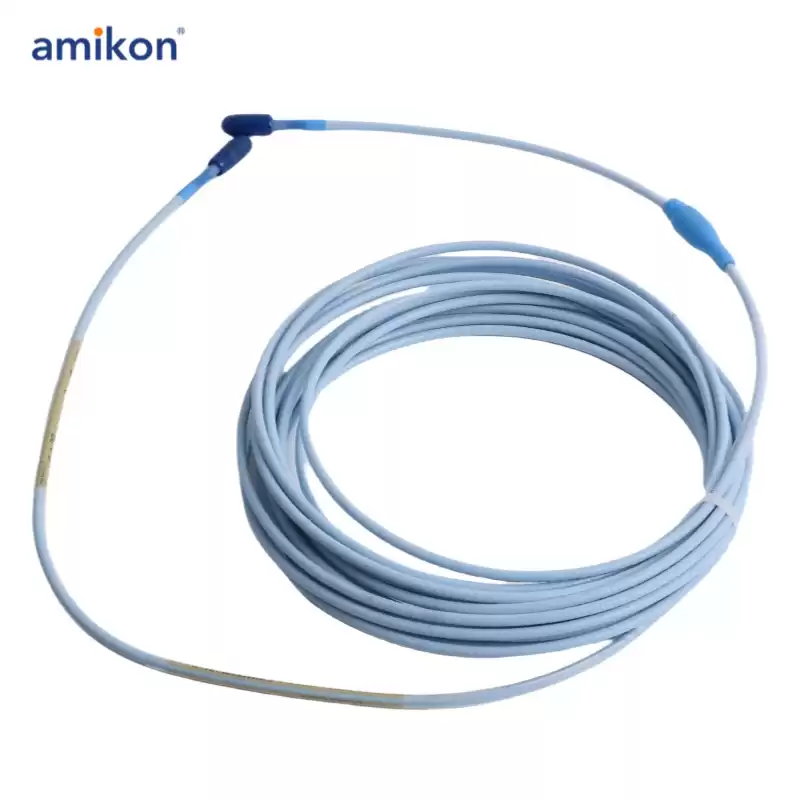

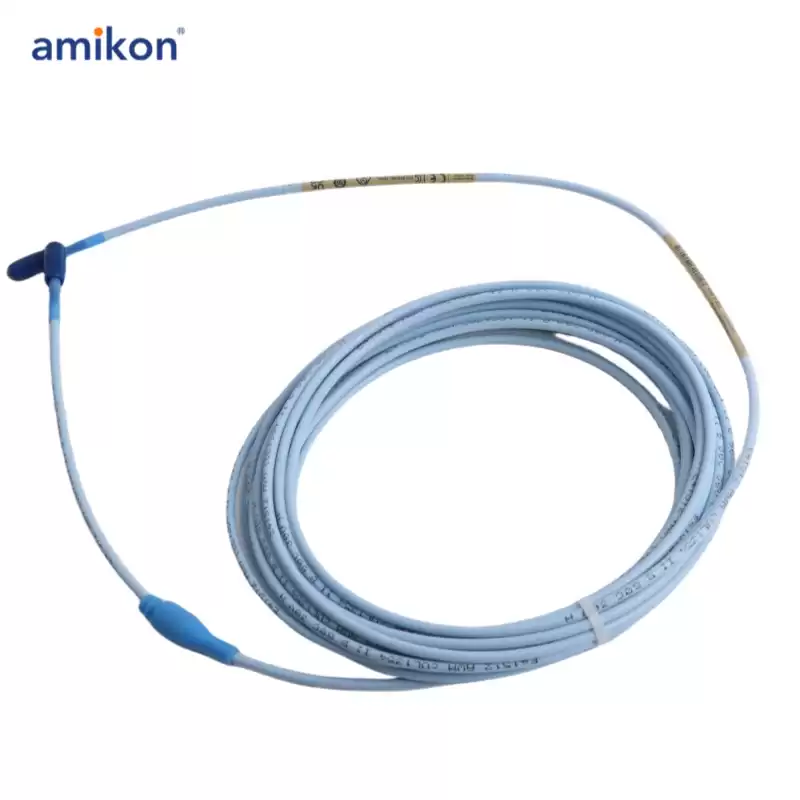

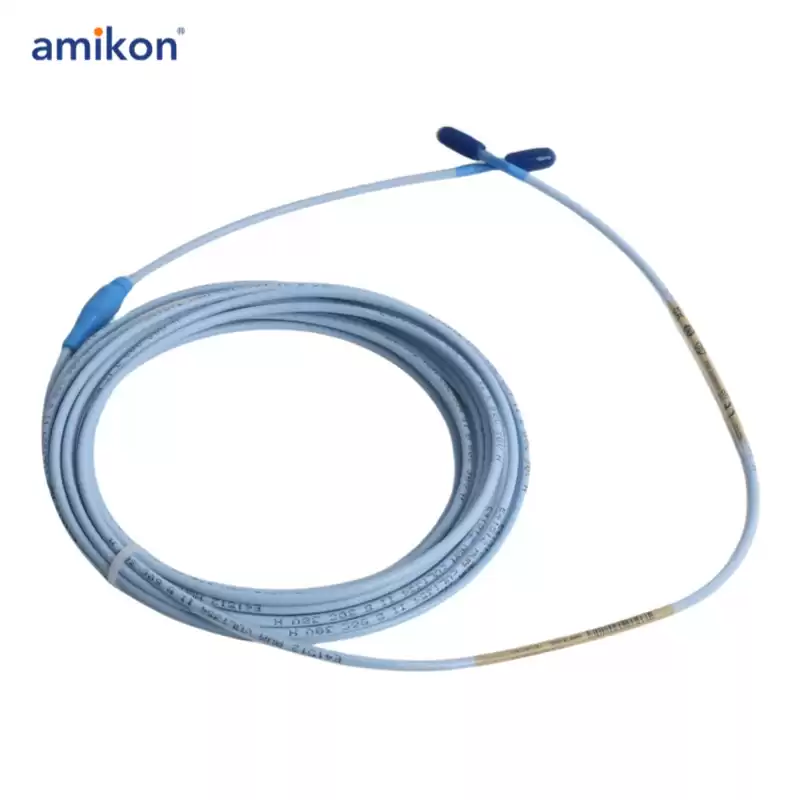

330130-075-01-05 is a 3300 XL 8mm Standard Extension Cable manufactured by Bently Nevada and used in proximity transducer system. Additionally, the 3300 XL probe and extension cable represent advancements over earlier models. The bond between the probe tip and the probe body is stronger thanks to a unique TipLocTM molding process. Additionally, the cable of the probe is more firmly fastened thanks to the use of the unique CableLocTM design, which offers 330 N (75 lbf) pull strength where the cable connects to the probe tip. You can also get 3300 XL 8 mm Probes and Extension Cables with a FluidLoc® cable option. Through the interior of the cable, this option stops oil and other liquids from leaking out of the machine.
The ClickLocTM connectors on the 330130-075-01-05 3300 XL probe, extension cable, and Proximitor® Sensor are corrosion-resistant and gold-plated. The precisely designed locking mechanism prevents the connectors from losing and only requires finger-tight force to engage (connectors will "click"). They can be installed or removed without the use of any specialized equipment. You can get extension cables and 3300 XL 8 mm probes with connector shields already attached. Additionally, connector covers may be provided separately for on-site installation (such as when the cable must be run through a restrictive conduit). All installations should include connector protectors since they promote environmental protection.
