SPECIFICATIONS
Part Number: 330130-080-00-00
Manufacturer: Bently Nevada
Product Type: Standard Extension Cable
Cable Length: 8 m
Agency Approval: None
Country of Manufacture: United States (USA)
Product series: Bently Nevada 3300
Functional Description

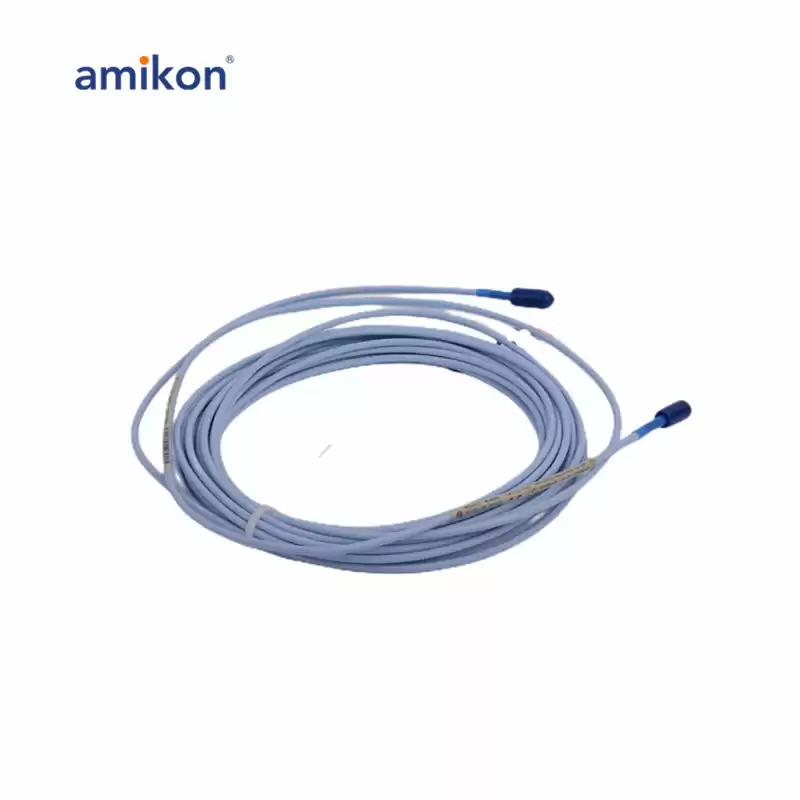

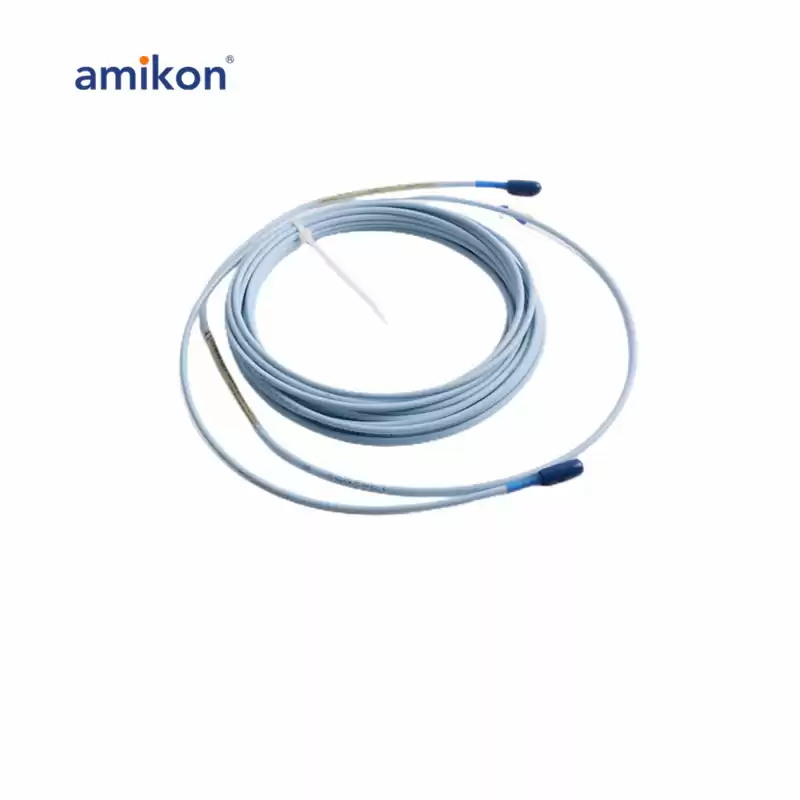

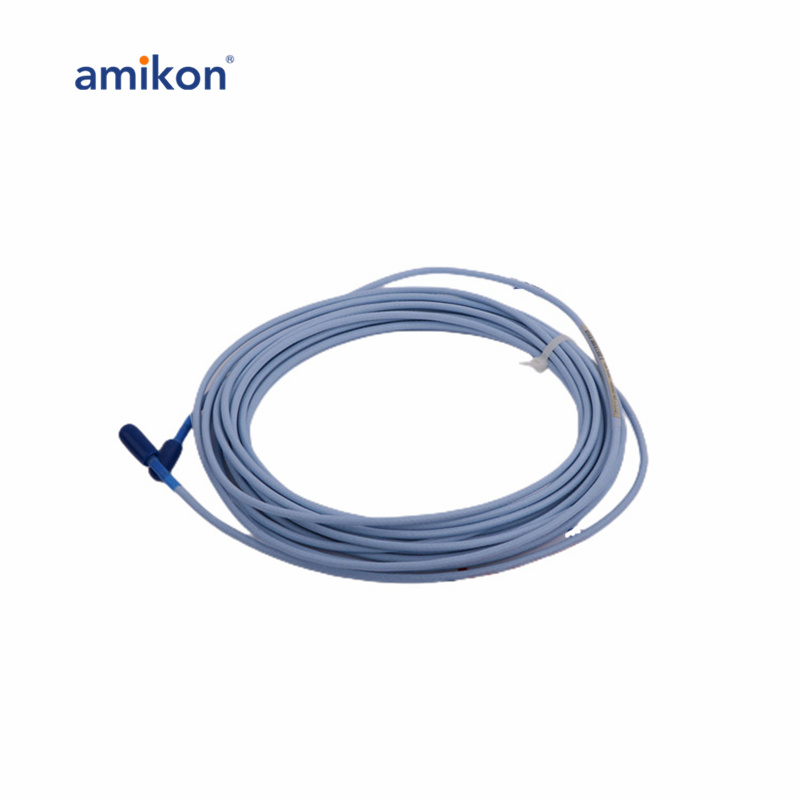

330130-080-00-00 is a Standard Extension Cable manufactured by Bently Nevada. Additionally, the 3300 XL probe and extension cable represent advancements over earlier models. The bond between the probe tip and the probe body is stronger thanks to the proprietary TipLoc molding process. For a more secure connection between the probe cable and probe tip, the probe's cable features a unique CableLoc design that offers 330 N (75 lbf) of pull strength.
Configuration Details
-Cable Length: The sensor comes with an 8-meter (26.2 feet) cable, which provides flexibility in installation, allowing the sensor to be mounted at a distance from the measurement point while maintaining reliable performance.
-Connector Protector and Cable Option: The 330130-080-00-00 is provided with a standard cable, which offers robust protection and ensures long-term reliability under typical operational conditions.
-Agency Approval Option: This particular model does not come with specific agency approvals, making it suitable for general applications where additional certifications or approvals are not required.
FluidLoc Cable Option
One of the standout features of the 3300 XL 8 mm Proximity Transducer System is the FluidLoc cable option, which is specifically designed to prevent oil and other liquids from leaking out of machines. This feature is crucial in environments where fluid containment is essential, providing extra protection and maintaining operational integrity. The interior design of the cable ensures that any fluid leakage is effectively blocked, which is important for maintaining the health of the system and avoiding potential damage to surrounding equipment.
ClickLoc Connectors with Corrosion-Resistant Plating
The ClickLoc connectors used in the system are equipped with corrosion-resistant gold plating, offering superior durability and longevity. These connectors are designed to be finger-tightened, which means they do not require any specialized tools for installation or removal. The connectors "click" when they are securely tightened, ensuring a reliable connection. A specially designed locking mechanism ensures that the connectors stay firmly in place during operation, even under vibration or other mechanical stresses. This feature simplifies maintenance and reduces the need for complex tools, making the installation and servicing of the system more user-friendly.
System Configuration
The Bently Nevada 3300 XL 8mm Proximity Transducer System includes:
One 3300 XL 8mm probe
One 3300 XL extension cable
One 3300 XL Proximitor Sensor
These components work together to provide an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface, enabling accurate measurements. The system is designed to measure both static (position) and dynamic (vibration) values, making it versatile for various monitoring applications. The sensor outputs a voltage that corresponds to the distance of the probe from the surface being monitored, providing real-time data for machine health diagnostics.
